Steam Aging Test Chamber

Request a Quote

View All: http://swtestmachine.com/3-10-saturated-steam-life-test-chamber/index.html

Technical Parameters of Lifespan Test Chamber

Model	PCT-2350	PCT-350	PCT-450	PCT-650
Internal size (W×H×D)cm	￠250×300	￠350×400	￠450×500	￠650×600
External size (W×H×D)cm	Depending on the design
Internal surface	SUS stainless steel
External surface	Plastic coated
Temperature range	100℃ to 132℃(or 147℃)
Humidity range	65% to 100%RH
Machine type	Standard pressure
Humidification system	Electric heating tubes
Water supply	Manually add
Pressure range	0~2kg/cm2(or 3kg/cm²)
Power supply	AC 380V(±10%)V three-phase, four-wire ground wire / AC220V / AC110V 50HZ /60HZ
Temperature uniformity	±1.5℃
Max. bearing pressure	6kg/cm²

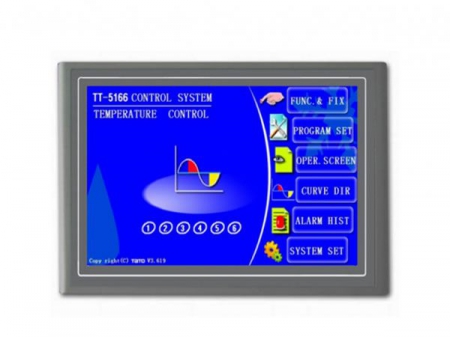

Temperature controller	Touchscreen controller
Pressure display	0 to 4kg/cm²

Optional Configurations

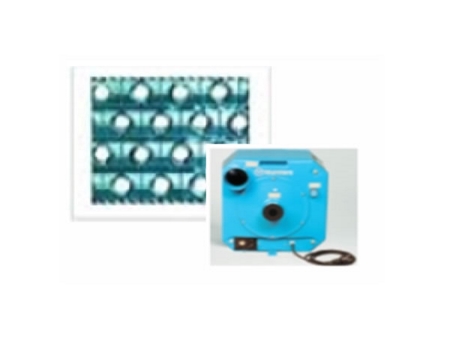

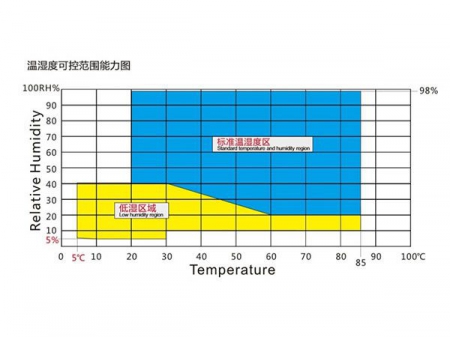

1. Rotary dehumidifier/ polymeric membrane, with a lowest temperature/ humidity content of 5℃/5 %RH.

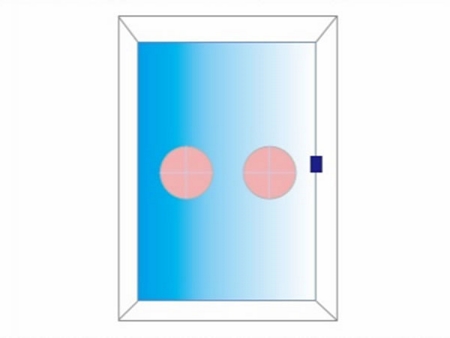

2. Built-in tempered glass door, easy to move

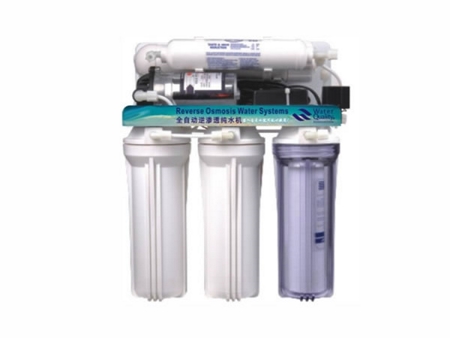

3. Water purification system, with automatic replenishment function

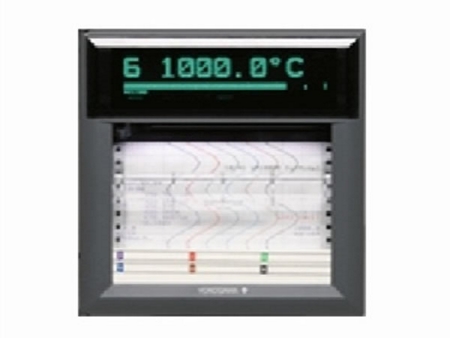

4. Recorder, save and print testing data

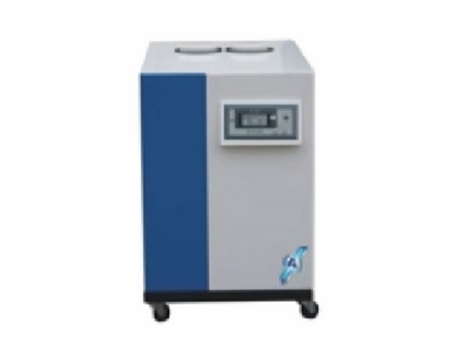

5. Ultrasonic humidifier/ high-pressure spray humidifier, providing continuous high humidity under extreme temperature

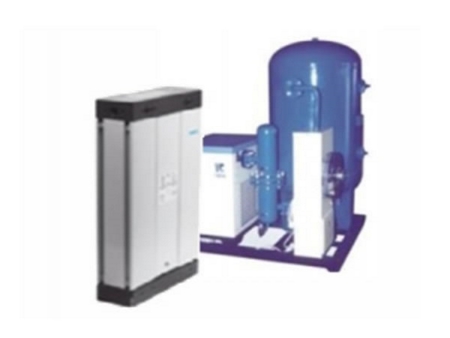

6. Dry air blow system, anti-condensation

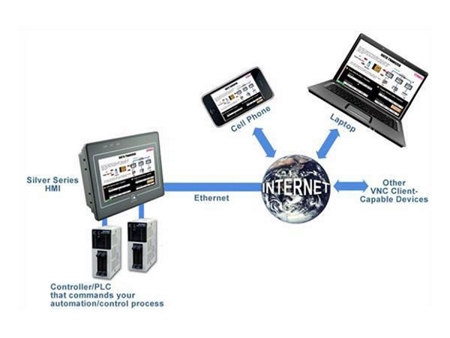

7. Remote monitoring function, cellphone and computer supportive

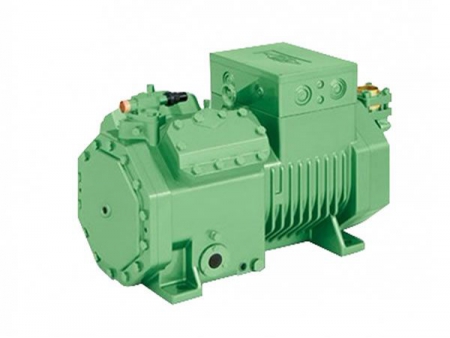

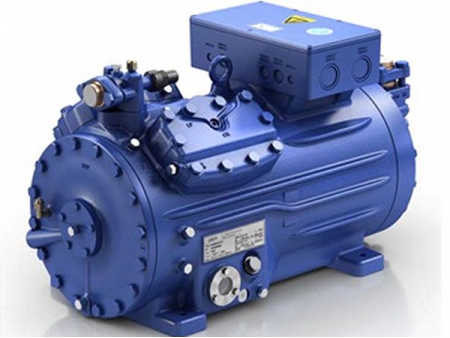

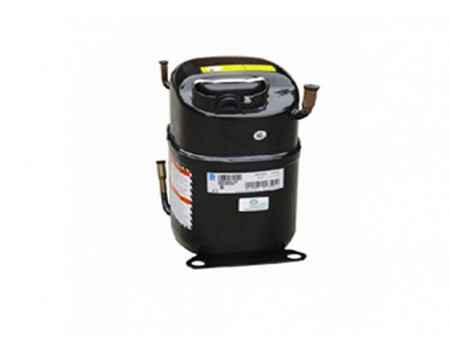

Cooling Equipment
