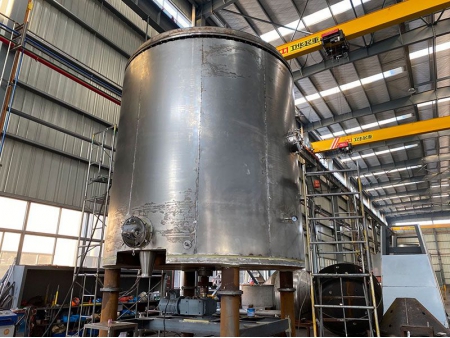

Continuous Plate Dryer
Series PLG
Weiying PLG series continuous plate dryer is mainly used for continuous drying of free-flowing bulk materials. It has been proven useful in multiple applications and is available in atmospheric, gas-tight or vacuum configurations. Furthermore, this equipment can gently dry materials without impacting the environment in chemical, pharmaceutical, pesticide, food, feed and agricultural by-product processing industries. With high thermal efficiency, low energy consumption, small footprint, simple configuration, and convenient operation and control, this continuous plate dryer has been well received and highly recognized in relevant professional industries. Additionally, we can provide a series of continuous plate dryers, as well as a variety of auxiliary equipment to meet the needs of our customers from all walks of life.
- Specifications of the continuous plate dryer vary from 1200, 1500, 2200 to 3000;
- High quality of final products due to precise control of drying temperature and retention time;
- Maximum flexibility for the drying process thanks to optimization of feeding layer depth and speed of the main spindle;
- Accurate temperature control when heating or cooling specific materials;
- The continuous plate dryer keeps on tumbling thereby all the portions of the materials are subjected to hot air and dried materials are disposed from bottom with no human interference, so as to avoid problem of contamination;
- Minimum energy requirement due to efficient contact drying;
- Easy to clean and easy inspection through large access doors;
- Thin feeding layer and low main spindle speed and high standard transmission system result in high thermal efficiency and low energy consumption;
- Atmospheric configuration: Minimum dust load;
- Gas-tight configuration: Easy solvent recovery;
- Vacuum configuration: The continuous plate dryer is suitable for drying heat-sensitive materials;
- Easy to transport, deliver and install;
- Vertical installation with small occupied area and full drying area;
| Model | Exterior diameter (mm) | Height (mm) | Drying area (m2) | Power (kW) |
| 1850 | 2608 | 3.3 | 1.1 | |
| 3028 | 4.9 | |||
| 3448 | 6.6 | 1.5 | ||
| 3868 | 8.2 | |||
| 4288 | 9.9 | |||
| 2100 | 3022 | 8.0 | 2.2 | |
| 3442 | 10.7 | |||
| 3862 | 13.4 | |||
| 4282 | 16.1 | 3.0 | ||
| 4702 | 18.8 | |||
| 5122 | 21.5 | |||
| 2900 | 3262 | 18.5 | 3.0 | |
| 3682 | 24.6 | |||
| 4102 | 30.8 | |||
| 4522 | 36.9 | 5.5 | ||
| 4942 | 43.1 | |||
| 5362 | 49.3 | 4.0 | ||
| 2900 | 5782 | 55.4 | 5.5 | |
| 6202 | 61.6 | |||
| 6622 | 67.7 | 7.5 | ||
| 7042 | 73.9 | |||
| 7462 | 80.0 | |||
| 3800 | 4050 | 48 | 11 | |
| 4650 | 60 | |||
| 5250 | 72 | |||
| 5850 | 84 | |||
| 6450 | 96 | |||
| 7050 | 108 | 13 | ||
| 7650 | 120 | |||
| 8250 | 132 | |||
| 8850 | 144 | |||
| 9450 | 156 | 15 | ||
| 10050 | 168 | |||
| 10650 | 180 |
