Heavy Vehicle Engine Repair Stand / Engine Rotation Stand

Heavy Vehicle Engine Repair Stand / Engine Rotation Stand
Heavy Vehicle Engine Repair Stand / Engine Rotation Stand
Request a Quote

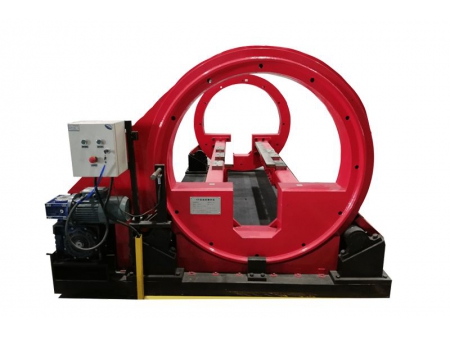

JC-Hydraulic engine rotation stand is used for backup engine maintenance and transport in overhauling processes of disassembly, washing, testing and installation. It is often applied to Cummins engines.

The stand can rotate the engine by 360 degrees towards any direction for the convenience of the engine assembly or disassembly. Our company’s rotation stand is being applied in opencast mines of North China.

Technical Parameters
  • Maximum Load: 8,000kg
  • Driving Power: 1.1kW/380VAC
  • Rotation Table Size: 3,500*1,100mm
  • Rotation Speed: 0.5rpm
  • Height of Rotation Center: 1,090mm
  • Driving Method: electricity-powered
  • Capable of self-locking within 360-degree rotation
  • Overall Dimensions: 5,400*2,676*2,040mm
  • Tags:
  • engine turnover repair stand
