Heat Shrink Cable Repair Sleeve

Heat Shrink Cable Repair Sleeve
Heat Shrink Cable Repair Sleeve
Heat Shrink Cable Repair Sleeve
Request a Quote

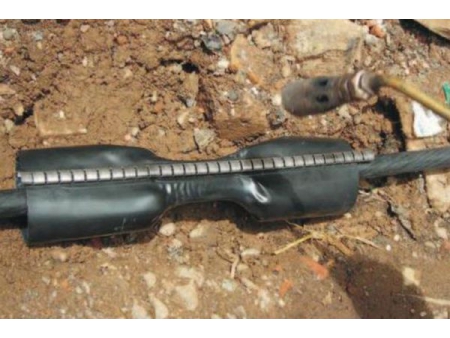

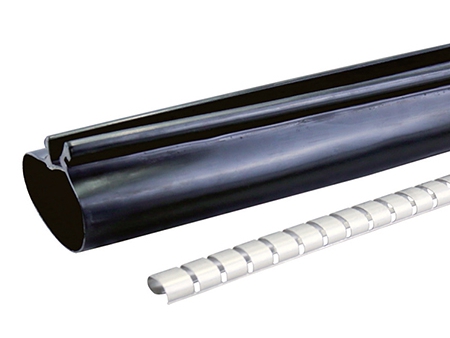

This heat shrink cable repair sleeve is made of polyolefin. With a unique wraparound design, it is intended to be used as insulation materials on cables up to 1000V and as jacket repair materials on cables up to 35kV. The inner wall has been coated with adhesives that, when being heated, will help make a safe and watertight bond with cables. In addition, a metal clip has also been applied to fully seal the cable repair sleeve.

Features
  • Complete range of specifications;
  • Easy installation, even in small space;
  • Excellent tensile strength, resistance to corrosion&wear and tear;
Technical Data
Property Test Method Standard Value
Tensile Strength ASTM-D-638 ≥12MPa
Elongation at Break ASTM-D-638 ≥300%
Tensile Strength After Heat Aging (130℃×168 h) ASTM-D-5510 ≤±20%
Elongation at Break After Heat Aging (130℃×168 h) ASTM-D-5510 ≤±20%
Dielectric Strength IEC 60243 ≥15kV (mm)
Volume Resistivity IEC 60093 ≥1× Ω.cm
Brittle Temperature ISO 974 -40℃
Heat Shock 160℃, 4h No Crack
Water Absorption ISO 62 ≤0.1%
Hardness (Shore A) ISO 868 ≥80
Longitudinal Shrinkage ASTM-D-2671 ≤10%
Eccentricity ASTM-D-2671 ≤30%
