High Frequency Shielding Film, MZ-9706G

Request a Quote

View All: http://industrialuse-tapes.com/3-16-high-frequency-shielding-film.html

MZ-9706G high frequency shielding film is designed based on hot-melt adhesive film, which is halogen-free and flame-retardant. Our EMI shielding film can mainly be applied in 5G and 6G era of TV screen monitors, gaming monitors, high-definition printers, and flat flexible cables (FFC) for high-speed transmission requirements of drone cameras.

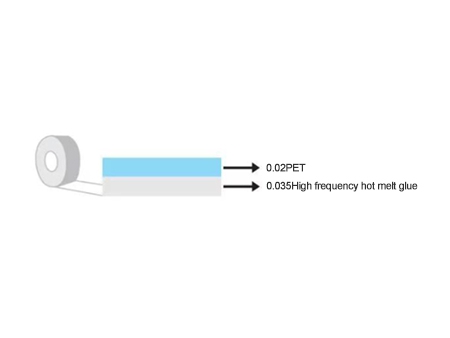

Product Structure

Applications

Technical Parameter

Property			Unit			Value
Wave-absorbing material thickness			mm			0.205
Hot melt adhesive thickness			mm			0.035
Total thickness			mm			0.06
Color			-			White
Physical and Chemical Properties
Extensibility	%	MD	≥60	ASTM-D-882A	Tensile strength	kgf/mm²	MD	≥7	ASTM-D-882A
	%	TD	≥60			kgf/mm²	TD	≥7
Flame retardance	——			Satisfying UL94 VTW-0 qualified	Peel strength	kg/in	≥1.0	Hot melt testing 3 seconds, pressure 3kgf/ cm², peeling speed 100mm/min
Heat resistance	——			85℃/500h, with qualified insulation resistance and voltage resistance	Wet resistance	——		85℃，95%RHX500h, with qualified insulation resistance and voltage resistance
Voltage resistance	V			AC500v/min without breakdown	Insulation resistivity	MΩ/m		DC 500V, resistivity > 1000 MΩ/m
