High Frequency Vibratory Hammer

F Series

Crane suspended vibratory hammer for pile driving or extracting

Our high frequency vibratory hammer (F series) features high frequency vibratory hammers equipped with high-frequency motors. Compared to normal vibro hammers, F series products have faster motor speeds, lighter eccentric blocks, and an overall lighter weight, with their maximum centrifugal forces ranging from 2300kN to 3020kN. For your specific requirements, product customization is available. Designed for versatile usage scenarios, F series hammers are ideal for ground improvement, bridge foundations, and building construction, enhancing soil stability and bearing capacity.

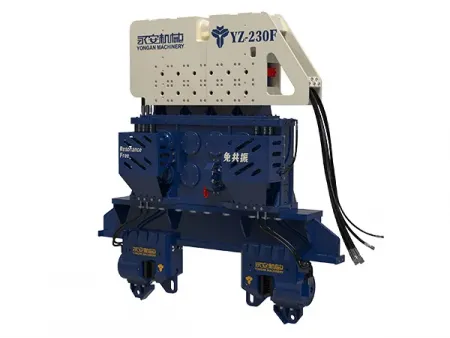

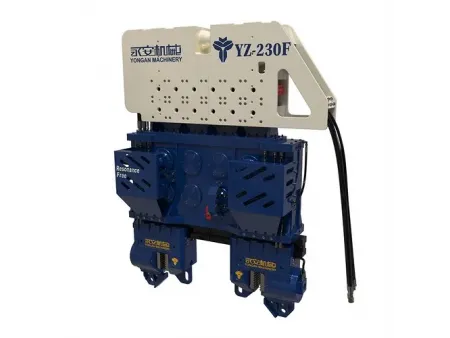

Model	YZ-230F
Unit	Metric	US
Eccentric Moment	33.5 kg.m	2908 lbs.in
Maximum Frequency	2500 rpm	2500 rpm
Maximum Centrifugal Force	2300 kN	258 tons
Maximum Line Pull Force	800 kN	90 tons
Maximum Amplitude	20 mm	0.78 in
Maximum Oil Flow	800 L/min	211 gpm
Weight (without clamps and beam)	6700 kg	14771 lbs
Dimensions (L×W×H)	2600×785×2410 mm	103×31×95 in
Recommended Power Pack	800P

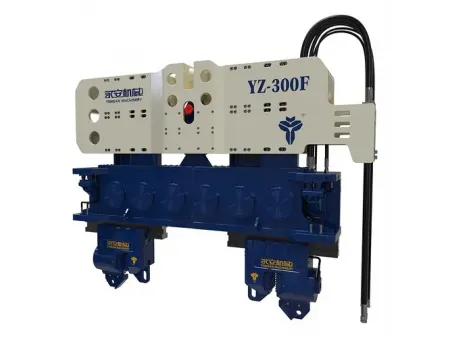

Model	YZ-300F
Unit	Metric	US
Eccentric Moment	52 kg.m	4513.6 lbs.in
Maximum Frequency	2300 rpm	2300 rpm
Maximum Centrifugal Force	3020 kN	339 tons
Maximum Line Pull Force	800 kN	90 tons
Maximum Amplitude	16 mm	0.63 in
Maximum Oil Flow	1200 L/min	316 gpm
Weight (without clamps and beam)	9600 kg	21164 lbs
Dimensions (L×W×H)	3855×705×2035 mm	152×28×80 in

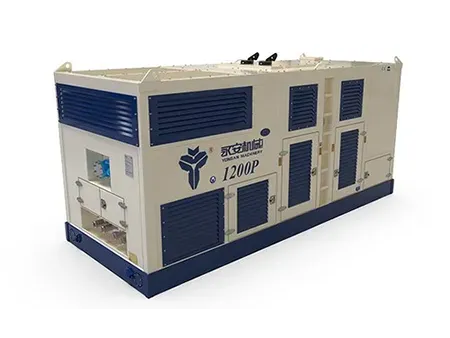

Recommended Power Pack	1200P

Mounting Options

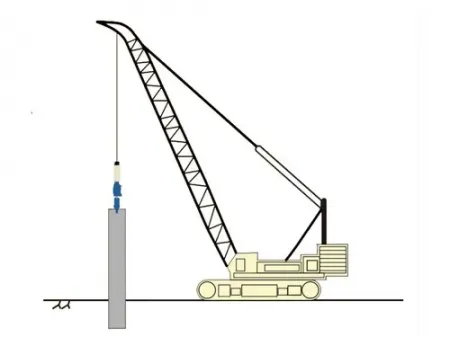

F series hammers need to be mounted on crawler cranes, rough terrain cranes, or other similar equipment.

Crawler Crane

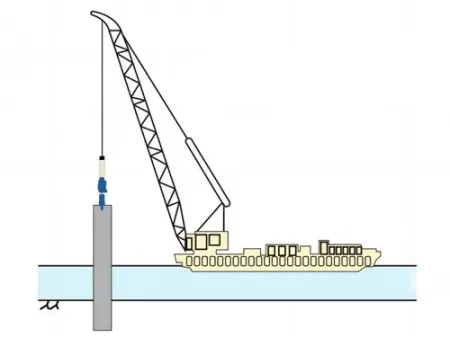

Floating Crane

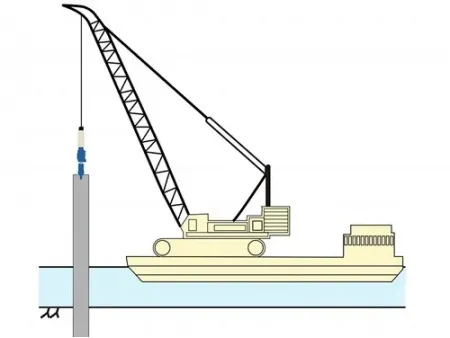

Crane-Fitted Barge

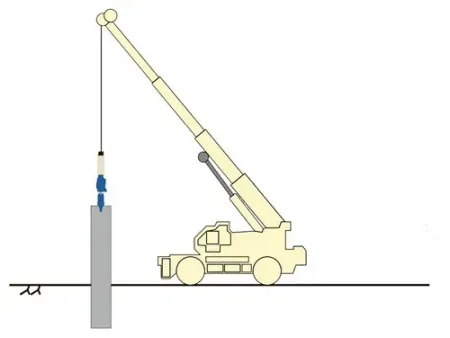

Rough Terrain Crane

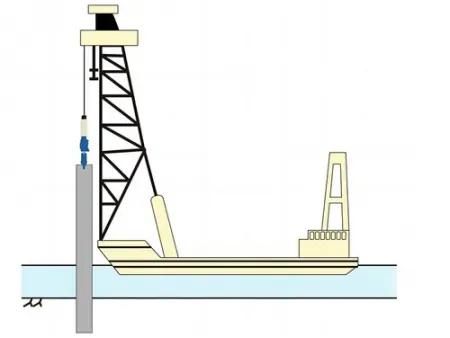

Piling Barge

Applications

Civil Infrastructure Construction
Sea Bridge Construction
Offshore Wind Farm Construction
Harbour Construction
Cofferdam Construction

Suitable Pile Types

Steel Tubular Piles
Sheet Piles
Concrete Piles

Recommended with

Related Case Studies

Construction Projects using YZ-230F Hydraulic Vibratory Hammer

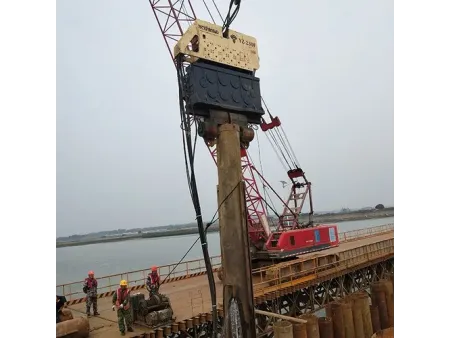

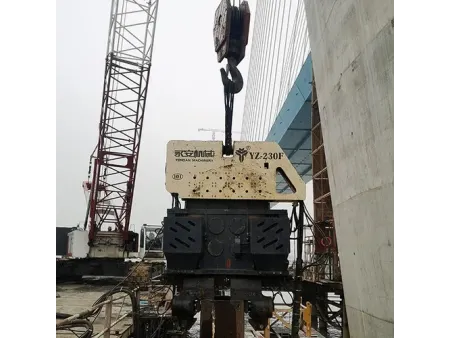

Beihai Sea Bridge Construction

Project time: December, 2019
Pile type: interlocking steel tubular piles
Diameter: 630 mm
Thickness: 12 m
Pile length: 23 m (driving depth: 17 m)
Application: cofferdam
Soil type: sandy soil and red soil
Pile sinking time: 3-20 min

Railway Pile Extraction in Nansha District, Guangzhou City

Project time: March, 2020
Pile type: steel tubular piles
Diameter: 800 mm
Thickness: 10 mm
Pile length: 38 m (driving depth: 26 m)
Application: pile extraction
Pile extraction time: 40 min per pile

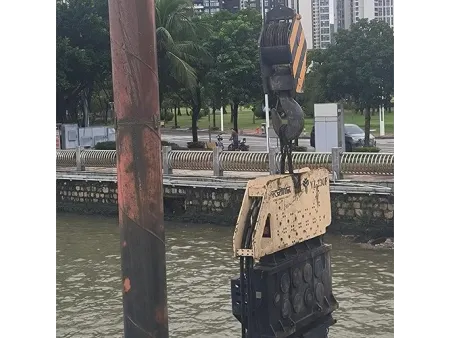

Qianshan Bridge Demolition in Guangzhou City

Project time: September, 2022
Pile type: steel tubular piles
Diameter: 820 mm
Thickness: 10 mm
Pile length: 30 m (driving depth: 21 m)
Application: trestle bridge pile extraction
Pile extraction time: 25 min
