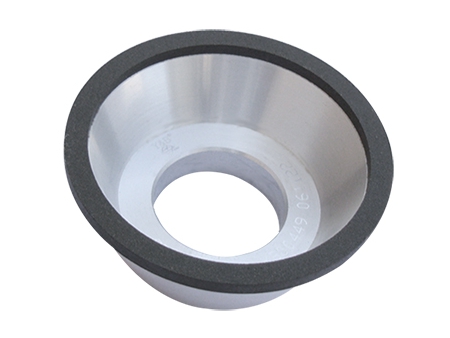

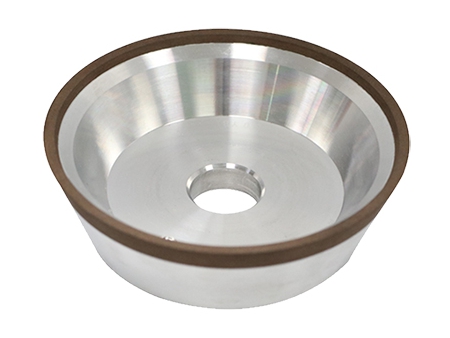

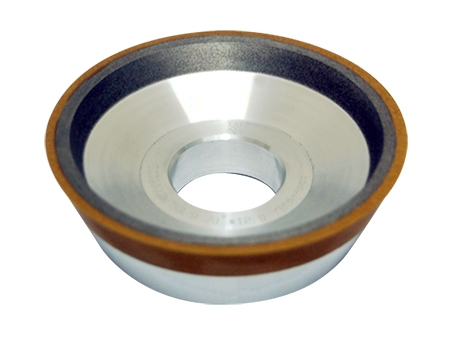

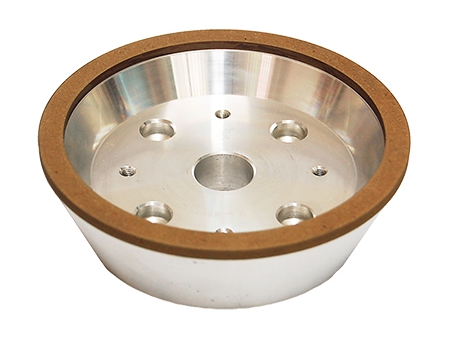

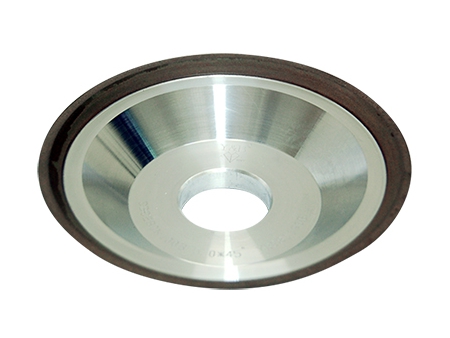

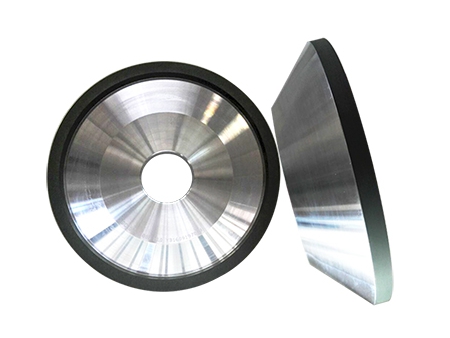

Taper cup Resin Grinding Wheel
Request a Quote
This product has been discontinued and removed from our shelves.

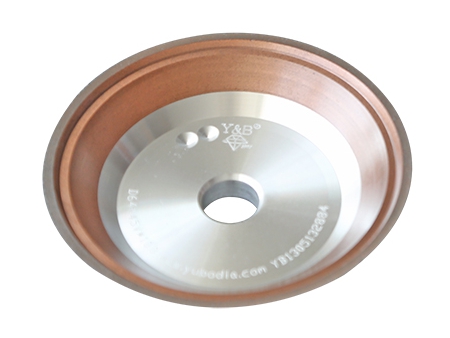

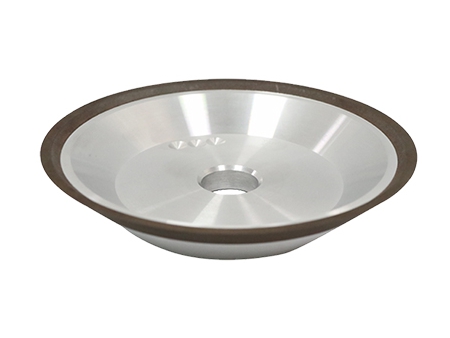

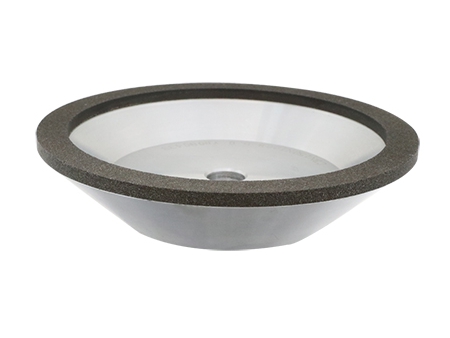

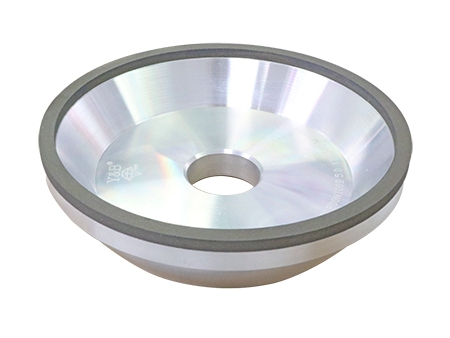

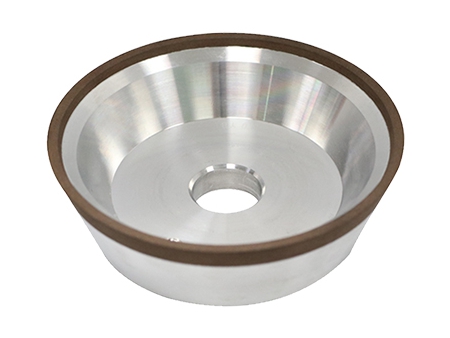

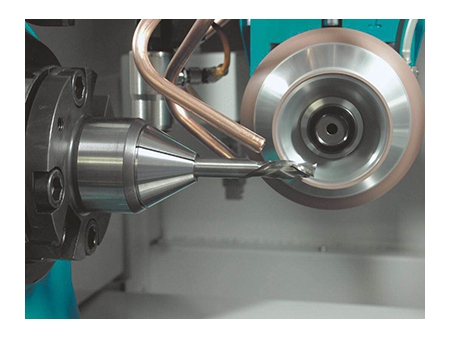

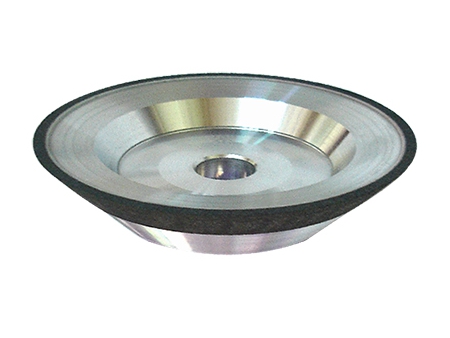

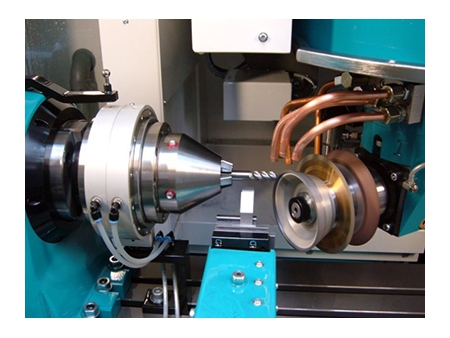

The taper cup resin grinding wheel is a common grinding tool, and is often used to grind alloy blades, including milling cutters, drill bits, spade bits, step reamers, gravers, and more.

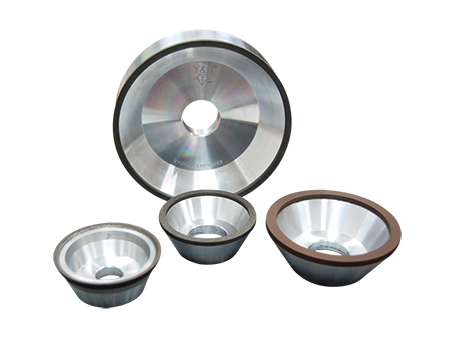

We offer a variety of taper cup resin grinding wheels for customers to choose from, including the 11A2 type, 12A2 type, 11V2 type, 12V2 type, 11V9 type and 12V9 type.
11A2 Grinding wheel
| Outer diameter | Overall thickness | Arbor hole diameter | Arbor hole width | Abrasive width | Abrasive thickness |
| 75 | 25 | 19.05/20 | 10 | 3/5/6/8/10 | 2-6 |
| 100 | 25-40 | 19.05/20 /31.75/32 | 6/8/10/12 | ||
| 125 | 8/10/12/15 | 3/4/5/6/8 | |||
| 150 | |||||
| 200 | 30-50 | 31.75/32/40 | 12/15 | 8/10/12/15/20/25 | |
| Note: other specifications can be customized upon request! | |||||
12A2 Grinding wheel
| Outer diameter | Overall thickness | Arbor hole diameter | Arbor hole width | Abrasive width | Abrasive thickness |
| 75 | 12 | 10/19.05/20 | 5 | 3/5/6/10 | 2/3/4/6 |
| 100 | 15 | 19.05/20 | 6 | ||
| 125 | 18 | 31.75/32 | 8 | 5/6/10 | |
| 150 | 20 | 9 | 5/6/10/15 | ||
| 175 | 22 | 10 | 6/10/15 | ||
| 200 | 24 | 31.75/32/40/75 | 11 | 6/10/15/20 | |
| 250 | 26 | 12 | |||
| Note: other specifications can be customized upon request! | |||||
11V2 Grinding wheel
| Outer diameter | Overall thickness | Arbor hole diameter | Arbor hole width | Abrasive width | Abrasive thickness | Wheel angle |
| 30 | 15 | 8/10 | 5 | 3/4/5/10 | 2/3/4 | 60° 70° |
| 50 | 25 | 10/19.05/20 | 6 | |||
| 75 | 25/30/32 | 19.05/20 | 8 | |||
| 90 | 35/40 | 9 | ||||
| 100 | 19.05/20/31.75/32 | 10 | ||||
| 125 | 35/40/45/50 | 11 | ||||
| 150 | 31.75/32 | 12 | ||||
| Note: other specifications can be customized upon request! | ||||||
11V9 Grinding wheel
| Outer diameter | Overall thickness | Arbor hole diameter | Arbor hole width | Abrasive width | Abrasive thickness | Wheel angle |
| 30 | 15 | 8/10 | 5 | 1.5/2/3/4/5/10 | 5/6/7/8/10 | 60° 70° |
| 50 | 25 | 10/19.05/20 | 6 | |||
| 75 | 25/30/32 | 19.05/20 | 8 | |||
| 90 | 35/40 | 9 | ||||
| 100 | 19.05/20/31.75/32 | 10 | ||||
| 125 | 35/40/45/50 | 11 | ||||
| 150 | 31.75/32 | 12 | ||||
| Note: other specifications can be customized upon request! | ||||||
12V2 Grinding wheel
| Outer diameter | Overall thickness | Arbor hole diameter | Arbor hole width | Abrasive width | Abrasive thickness | Wheel angle |
| 50 | 10/12 | 10 | Customized | 2/3 | 2/3 | 40° |
| 75 | 10/12/15 | 10/19.05/20 | 30°/45° | |||
| 90 | 3/5 | 3 | 45° | |||
| 100 | 12/15 | 19.05/20/31.75/32 | ||||
| 125 | 15/16/18 | 5/6/8 | 3/4 | 25°/45° | ||
| 150 | 16/18 | 31.75/32 | 45° | |||
| 175 | 18/20 | 3/4/5 | ||||
| 200 | 20/25 | 31.75/32/75 | 5/8/10 | |||
| 250 | 20/25/30 | 75/127 | 5/6/8 | |||
| Note: other specifications can be customized upon request! | ||||||
12V9 Grinding wheel
| Outer diameter | Overall thickness | Arbor hole diameter | Arbor hole width | Abrasive width | Abrasive thickness | Wheel angle |
| 75 | 10/12/15 12/15 | 10/19.05/20 | 10 | 1.5/3 | 6 | 45° |
| 100 | 19.05/20/31.75/32 | 6/10 | ||||
| 125 | 15/16/18 | |||||
| 150 | 16/18 | 31.75/32 | ||||
| Note: other specifications can be customized upon request! | ||||||
