Taper cup Grinding wheel
Request a Quote
This product has been discontinued and removed from our shelves.
The taper cup grinding wheel was designed through expert engineering for grinding alloy cutting tools, including milling cutters, drill bits, spade bits, step reamers, gravers, etc. It is commonly equipped on universal cutter grinders.

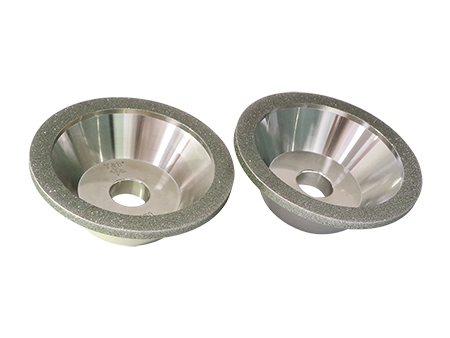

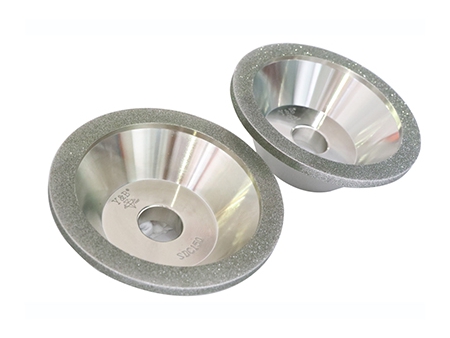

11A2 Taper cup Grinding wheel
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Arbor hole width (mm) | Abrasive width (mm) | Abrasive thickness (mm) |
| 75 | 25 | 19.05/20 | 10 | 3/5/6/8/10 | 2-6 |
| 100 | 25-40 | 19.05/20 /31.75/32 | 6/8/10/12 | ||
| 125 | 8/10/12/15 | 3/4/5/6/8 | |||
| 150 | |||||
| 200 | 30-50 | 31.75/32/40 | 12/15 | 8/10/12/15/20/25 |
Note: other specifications can be customized upon request!
