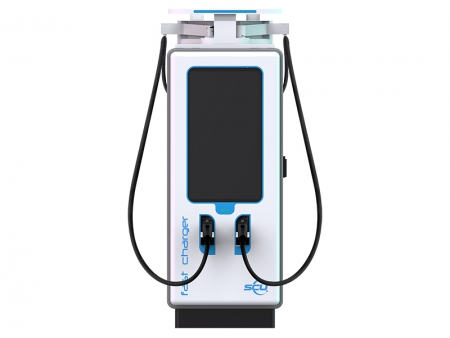

EVMS PRO High Power EV Charging Station
EVMS PRO features high-power charging (HPC) technology, offering ultra-fast DC charging for electric vehicles. It comes with a smart touchscreen display available in multiple sizes, from 21 to 43 inches, delivering an exceptional user experience. The high power EV charging station provides power from 80 kW to 480 kW, supports dual-connector configurations to accommodate varying charging loads based on demand.
Applications
The EV high power charging station is ideal for highway service areas, commercial fleet hubs, public fast-charging corridors, logistics centers, large commercial complexes, and more.
Compatible Vehicles
Compatible with electric vehicle models supporting CCS2, NACS, or GB/T protocols, including Tesla, Porsche, Mercedes-Benz, BMW, BYD, Audi, Hyundai, and others.
Advantages
- Up to 97% overall efficiency
- Max. 760A charging current (300km range in 5 minutes)
- 150-1000V output voltage range
- 15/21/32/43 inch advertising screen with interactive touchscreen UI
- Intelligent power allocation (dynamically adjusts output)
- Fully compliant with OCPP 1.6J /2.0.1 protocol
Technical parameters
| Power range | 80kW-480kW |
| Input voltage | 380VAC, range: 304-456V |
| Input frequency | 50/60Hz, range: 45-65Hz |
| Power factor | ≥ 0.99 |
| Harmonic current distortion | < 3% |
| Output voltage range | 50VDC-1000VDC / 150VDC-1000VDC |
| Current regulation accuracy | < 1% |
| DC ripple noise voltage | ≤0.5% (0MHz - 20MHz bandwidth) |
| Overall efficiency | ≥ 95.5% |
| Cable | 5m charging cable |
| Operating temperature | -20°C to 75°C |
| Operational noise level | < 60dB |
| Operating humidity | ≤95% (non-condensing) |
| Enclosure rating | IP55 |
