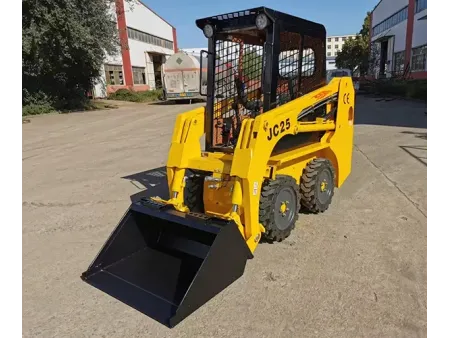

JC25 Mini Skid Steer Loader

Request a Quote

Website: http://sutemachinery-en.com/3-2-6-mini-skid-steer-loader.html

Compact structure: Overall width of only 920 mm and a minimum turning radius of 960 mm allow for highly flexible and efficient operation in tight areas.
Reliable power system: Equipped with a Kubota D1105 engine delivering 18.2 kW at 3000 rpm, offering stable performance with low fuel consumption.
Strong loading capacity: With a rated load of 380 kg, bucket capacity of 0.2 m³, and a maximum breakout force ≥7.3 kN, it ensures excellent working efficiency.

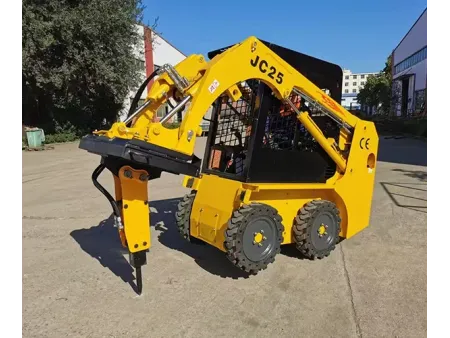

Quick attachment coupling system: Standard quick coupler supports multiple attachments such as hydraulic breakers, sweepers, grapples, and snow plows, enabling versatility across various applications.
Excellent maneuverability: With a wheelbase of 801 mm and an approach angle of 13°, it provides strong terrain adaptability and smooth operation.

Specifications

Engine

Dimensions

A	Overall operating height	3400mm
B	Height to bucket hinge pin	2500mm
C	Height to top of cab	1813mm
D	Height to bottom of level bucket	2446mm
E	Overall length without bucket	2200mm
F	Overall length with bucket	2950mm
G	Dumping angle at maximum height	40°
H	Dumping height	2000mm
I	Dumping reach	441mm
J	Rollback of bucket on ground	30°
K	Rollback of bucket at full height	103°
L	Wheelbase	801mm
M	Ground clearance	145mm
N	Angle of departure	20°
O	Front turning radius without bucket	960mm
P	Front turning radius	1660mm
Q	Rear turning radius	1253mm
R	Rear axle to bumper	910mm
S	Track width	785mm
T	Width	920mm
U	Bucket width	1070mm
