Concentric Casing System with Ring Bits - Revolutionizing Overburden Drilling

Our concentric casing system with ring bits represents the latest technology in overburden drilling equipment. This system is particularly suitable for work conditions with gravel and fractured layers, offering outstanding performance and efficiency.

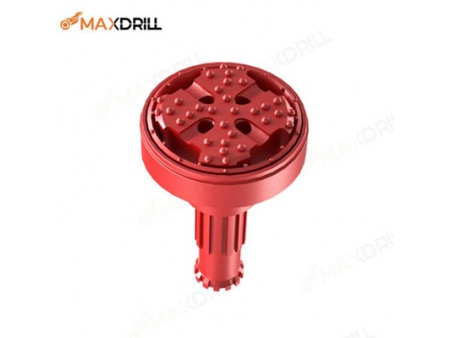

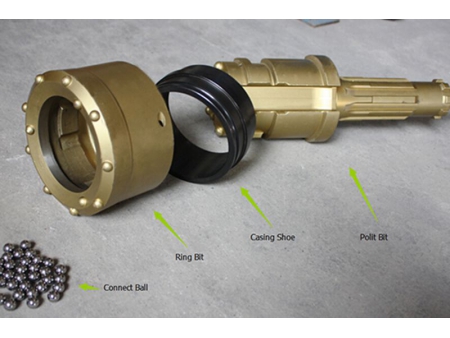

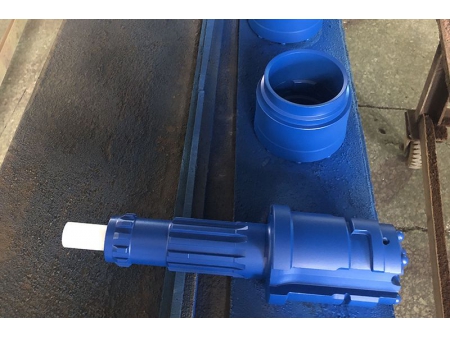

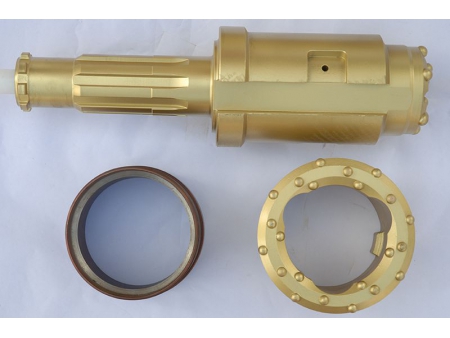

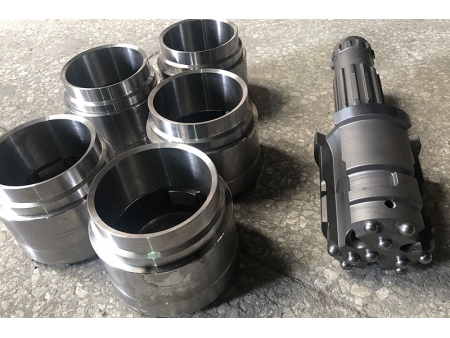

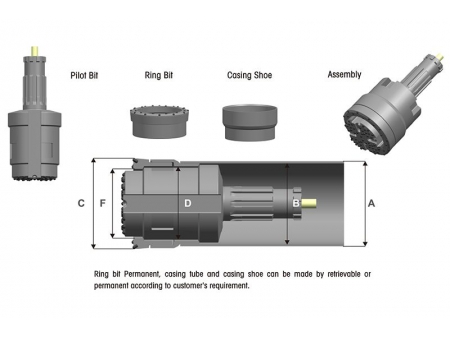

The concentric casing system comes in two variations: the three-piece set and the two-piece set. The three-piece set comprises a central drill bit, a casing shoe, and an expansion drill bit. Meanwhile, the two-piece set consists of a concentric drill bit and an expansion sleeve (formed by compressing the expansion drill bit and casing shoe). By welding or thread connecting the casing shoe to the casing, the root canal gradually slides down as the down-the-hole hammer and central drill bit advance. This drilling tool allows construction at any angle, including horizontal, and can reach depths well beyond 100 meters. Drilling and casing are synchronized for seamless operations.

Features
  • Stable and Reliable Performance: Our drilling tools feature a full cutting structure, enabling fast progress and precise holes.
  • Versatile Operation: Compared to eccentric drilling, our tools require less torque, making them suitable for vertical, horizontal, or any directional operations.
  • Minimized Hole Blockage: Our innovative design minimizes the likelihood of hole blockage, ensuring high debris removal efficiency. Unlocking and relocking operations are also made easy.
  • User-Friendly and Safe: Our drilling equipment is designed for ease of use and provides excellent safety performance, prioritizing the well-being of operators.
Specifications
Concentric Casing System (Three Pieces)
Model Outer diameter (mm) Max. wall thickness (mm) Reamed diameter (mm) Inner diameter of casing shoe (mm) Max. diameter of drill bit (mm) Hammer type Drill pipe (mm)
SOD108
108 6 118 85 75 3 inch hammer 76
SOD114
114 6 128 90 80 3 inch hammer 76
SOD127
127 9 141 97 85 4 inch hammer 76
SOD140
140 10 154 108 95 4 inch hammer 76
SOD168
168 10 182 138 125 5 inch hammer 76/89
SOD178
178 10 192 148 135 5 inch hammer 76/89
SOD183
183 10 198 152 140 5 inch hammer 76/89
SOD194
194 10 210 164 148 6 inch hammer 89/114
SOD219
219 10 235 184 172 6 inch hammer 89/114
SOD245
245 10 261 210 192 8 inch hammer 114
SOD273
273 10 305 238 219 8 inch hammer 114
SOD323
323 10 348 294 265 10 inch hammer 114
SOD406
406 12 432 358 330 12 inch hammer 127
Concentric Casing System (Two Pieces)
Model Outer diameter (mm) Max. wall thickness (mm) Reamed diameter (mm) Inner diameter (mm) Hammer type Drill pipe (mm)
ROD114
114 10 124 78 3 inch hammer 76
ROD140
140 10 150 94 4inch hammer 76
ROD168
168 10 178 121 5 inch hammer 76/89
ROD178
178 10 190 138 5 inch hammer 76/89
ROD183
183 10 194 143 5 inch hammer 89/114
ROD194
194 10 203 148 6 inch hammer 89/114
ROD219
219 10 234 167 6 inch hammer 89/114
ROD245
245 10 260 194 8 inch hammer 114
ROD273
273 10 292 219 8 inch hammer 114/127
ROD323
323 10 342 270 10 inch hammer 127
ROD406
406 10 419 328 12 inch hammer 140
