Concentric Casing System with Three Jaws

Request a Quote

View All: http://rockdrill-tools.com/3-5-concentric-casing-system-three-jaws.html

Overburden drilling system

Welcome to Starockdrill - Unleashing the Magic of Three-Jaw Drilling

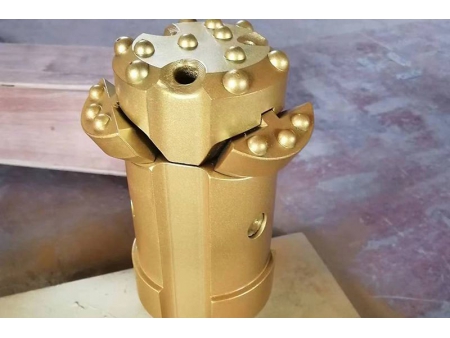

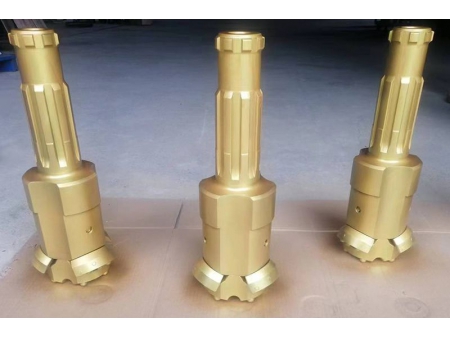

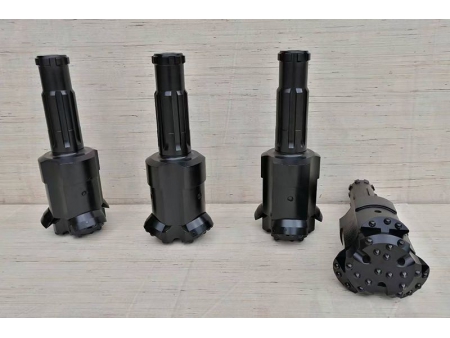

At Starockdrill, we believe in challenging conventional practices to deliver groundbreaking solutions. After three years of relentless dedication, we have developed a remarkable drilling tool - the concentric casing system with three jaws. This game-changing innovation enables the use of cost-effective PVC casing as a substitute for traditional steel casing, addressing the cost concerns associated with water well drilling. Our solution is versatile, adapting to various formations, including soil, flowing sand, small pebbles, and highly weathered rocks.

Specifications

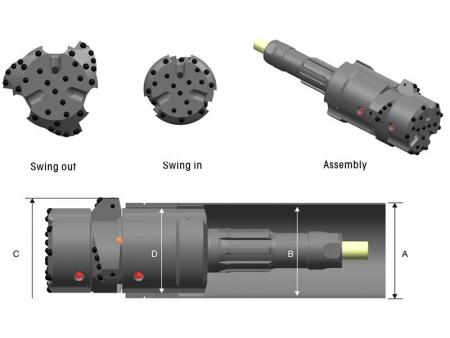

Model	Outer diameter (mm)	Inner diameter (mm)	Reamed diameter (mm)	Inner diameter of casing shoe (mm)	Hammer type	Drill pipe (mm)
TW127	127	113	145	100	4 inch hammer	76
TW146	146	130	159	115	4 inch hammer	76
TW168	168	148	180	138	5 inch hammer	76/89
TW178	178	158	190	148	5 inch hammer	76/89
TW183	183	163	195	152	5 inch hammer	76/89
TW194	194	174	210	160	6 inch hammer	89/114
TW219	219	199	237	187	6 inch hammer	89/114
TW245	245	225	265	211	8 inch hammer	114
TW273	273	253	308	236	8 inch hammer	114
TW323	323	303	360	282	10 inch hammer	114

Features

Enhanced Durability: We employ state-of-the-art heat treatment techniques to strengthen the surface of our drill bits, ensuring prolonged drilling lifespan and exceptional wear resistance.
YK05 Alloy Material: Our tools incorporate YK05 alloy material, ensuring stable airflow during the drilling process and enabling faster drilling speed.
Triangular Design: By utilizing the principles of trigonometry, we have crafted the three-jaw drilling tool, facilitating straighter hole formation.
Flexible and Efficient Operation: Our three-jaw drilling tool offers versatility and simplicity, enabling workers to carry out construction tasks with higher efficiency.
