LCC-1064-D80 Laser Collimation Module Calibrator
Laser System Modules & Measurement Instruments
Collimation testing and calibration of laser beams through CMOS spot profile analysis

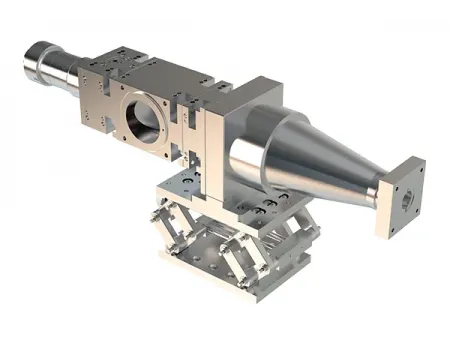

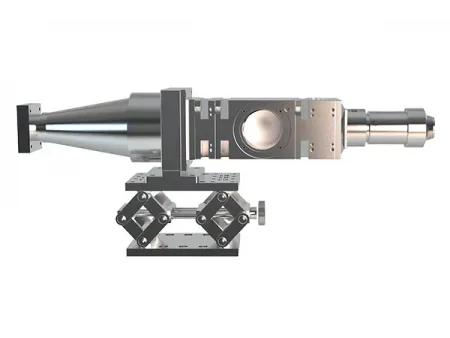

LCC-1064-D80 laser collimation module calibrator uses CMOS spot profile analysis technology to precisely measure the focused spot diameter of the output beam from a laser welding head's collimation module in real time. This ensures the accurate adjustment of the welding head's collimation lens position. The laser collimation module calibrator can be used for the factory calibration of collimation modules for laser welding heads and for testing the thermal lensing effect of high-power lasers, providing reliable calibration accuracy and testing performance.
| Input Laser Requirements | |
| Welding head input power (W) | 100-10,000 |
| Operating wavelength (nm) | 1064 |
| Collimation module interface | Customizable |
| Incident beam diameter (mm) | < 50 |
| Beam quality range (M²) | 1-20 |
| Calibration Parameters | |
| Relative position of collimation lens and QBH | Position when output spot is at minimum |
| Output laser optical axis stability | Records spatiotemporal characteristics of the focused spot |
| Thermal lensing effect of collimation lens | Spot drift over time at high power |
| Test Output Port | |
| Spot profile distribution pixels | 1280×1024 |
| Spot profile output frame rate (Hz) | 60 |
- Factory calibration of collimation modules for high-energy laser processing heads.
- Thermal lensing effect testing of high-power laser collimators.
LCC-1064-D80 laser collimation module calibrator is an ideal choice for the calibration and performance verification of laser welding equipment. Accurate, efficient, and flexible, it is a key tool for ensuring weld quality.
Based on the calibration principle of a laser autocollimator, the calibrator integrates a high-power beamsplitter module, a high-speed CMOS spot analyzer, and other core optical components. It can measure the focused spot diameter in real time and quantitatively. During the calibration process, the optimal position of the collimation module and laser output head is determined when the spot diameter reaches its minimum value.
To meet diverse user requirements, the LCC-1064-D80 laser collimation module calibrator offers customizable interfaces, ensuring the device's compatibility and flexibility.
