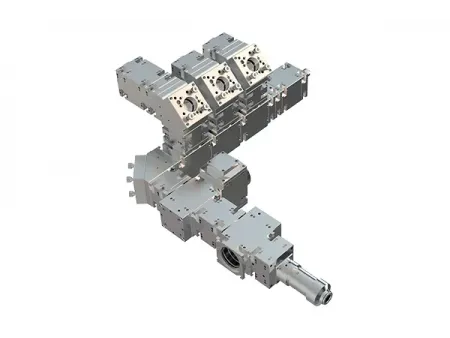

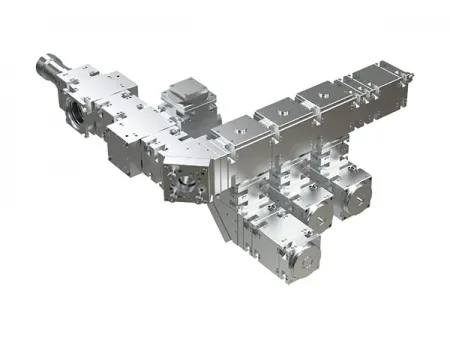

LPM-1064-C5 Fiber Laser Beamsplitter Module
Laser System Modules & Measurement Instruments
Beam splitting for the analysis and comparison of fiber laser optical parameters
LPM-1064-C5 fiber laser beamsplitter module is designed for the precise measurement of key fiber laser parameters, including beam quality, polarization state, spectrum, power, and power stability. It is suitable for testing the optical parameters of fiber lasers ranging from milliwatt to ten-kilowatt power levels.
| Input Laser Requirements | |
| Laser wavelength (nm) | 1064 (other wavelengths customizable) |
| Input laser polarization state | Arbitrary |
| Test laser power | High power: 1kW to 10kW |
| Low power: 10mW to 100mW | |
| Beam quality range (M²) | 1-20 |
| Test Output Ports | |
| Polarization test port | FC/APC fiber coupled output |
| Power stability | Focused output to photodetector |
| Spectrum test port | Focused output to compatible fiber |
| Power test port | Collimated output to power meter |
| Beam quality test port | Collimated light output |
| Input Optical Interfaces | |
| High-power test port | QBH interface or collimated input |
| Low-power test port | M11×0.5 fiber collimator interface |
- Wide measurement range
Supports optical parameter measurement for both high-power (1kW to 10kW) and low-power (10mW to 100mW) fiber lasers. - Precise beam splitting technology
Integrates a high-power beamsplitter, attenuator, beam-reducing lens group, and fiber coupler to precisely split the output beam from the fiber laser. - Multi-functional compatibility
By directing the split beams to a beam quality analyzer, polarization state tester, spectrometer, power meter, and high-speed photodetector, the module enables a full suite of optical parameters to be acquired in a single test. - Extended functionality
Equipped with an M11×0.5 fiber collimator interface, it supports the connection of a fiber collimator to meet the measurement needs of milliwatt-level low-power fiber lasers.
The fiber laser beamsplitter module integrates optical modules such as a high-power beamsplitter, attenuator, beam-reducing lens group, and fiber coupler. These modules work together to precisely split the fiber laser's output beam to various measurement instruments, allowing for a complete record of optical parameters from a single test.
This fiber laser beamsplitter module primarily serves the beam splitting function; users can configure other measurement equipment, such as beam quality analyzers and polarization state testers, as needed.
- Optical parameter measurement of fiber lasers.
- Laser research and development.
