Linear Guide, Roller Type Linear Motion Guide
Request a Quote
- Material: Aluminum alloy
- Rail width: 46mm
- Optional Length: 100mm-4000mm
- Sliding block type: 3 /4, with self-locking hand-wheel slider
- Max load of single slider: 60KG
- Straightness/Curvature: ≤0.15/1000mm

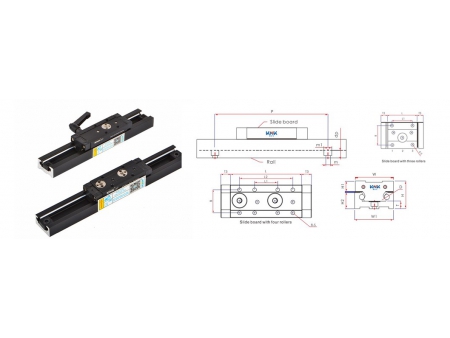

| Model | Set KNZ Rail dimensions | KNH Block dimensions | ||||||||||||||||||||||
| KNZ | H | W1 | H2 | dp | P | D | Mr g/m | T | ml | m | W | H1 | T3 | L | B | L1 | L2 | S | QP | BL（N） | DT（N-m） | |||
| Yo | Zo | Mxo | Myo | Mzo | ||||||||||||||||||||
| 10 | 24 | 28 | 14 | 3.3 | 60 | 5 | 1051 | 5 | 6 | 3.4 | 26 | 8 | 10 | 47 | 18.5 | 18.5 | M4 | 3 | 343 | 322 | 6.4 | 6.8 | 7.1 | |
| 63 | 30 | 4 | 450 | 420 | 10.2 | 11.3 | 11.5 | |||||||||||||||||
| 15N | 32 | 38 | 18.5 | 4.5 | 120 | 6 | 1651 | 8 | 8 | 4.5 | 37 | 12 | 11 | 60 | 26 | 26 | 60 | M5 | 3 | 490 | 460 | 7.4 | 7.8 | 10.2 |
| 80 | 4 | 700 | 660 | 13.2 | 14 | 14.5 | ||||||||||||||||||
| 15 | 32 | 46 | 18.5 | 4.5 | 120 | 6 | 1784 | 8 | 8 | 4.5 | 36 | 12 | 11 | 52 | 32 | 36 | M5 | 3 | 490 | 460 | 9.2 | 9.8 | 13.8 | |
| 68 | 4 | 700 | 660 | 19.8 | 21.1 | 22.4 | ||||||||||||||||||
| 20N | 35.2 | 46.3 | 22.5 | 5.5 | 120 | 8 | 2427 | 9 | 9.5 | 5.5 | 46 | 12 | 11 | 80 | 38 | 30 | 78 | M6 | 3 | 820 | 700 | 15.4 | 25.4 | 29.4 |
| 106 | 4 | 1400 | 1000 | 42 | 21.5 | 61.6 | ||||||||||||||||||
| 20 | 36 | 60 | 22.5 | 5.5 | 120 | 8 | 2744 | 9 | 9.5 | 5.5 | 58 | 12 | 12 | 72 | 50 | 40 | M6 | 3 | 820 | 700 | 18.2 | 52 | 421 | |
| 94 | 4 | 1400 | 1000 | 44 | 52 | 72.8 | ||||||||||||||||||
| 25 | 44 | 69 | 26 | 7 | 120 | 10 | 3873 | 10 | 10 | 6.6 | 68 | 16 | 12 | 100 | 56 | 56 | M8 | 3 | 1470 | 1260 | 4158 | 48.51 | 67.62 | |
| 130 | 57 | 75 | 4 | 2100 | 1800 | 96.6 | 118.8 | 138.6 | ||||||||||||||||
The travel length of the linear guides can be customized according to the specific requirements of customers.
The number of sliders are optional, and then you can choose them in the light of the size of the load.

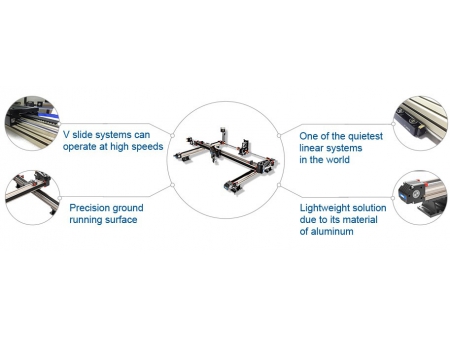

The series of KNZ15 features light weight and high strength because of the material of aluminum alloy.
