HYPERBARIC OXYGEN THERAPY (HBOT)
Hyperbaric chamber for providing pure oxygen at pressure up to 3.0ATA for multiple patients
- Maximum allowable working pressure (MAWP)0.2MPa (3.0ATA)
- CapacityCustomizable

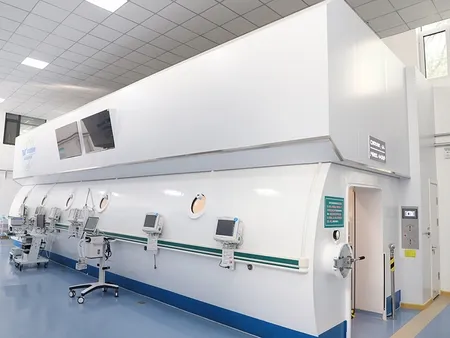

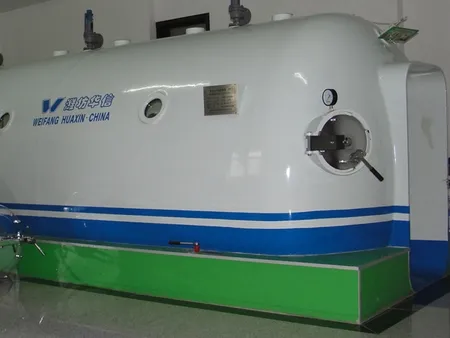

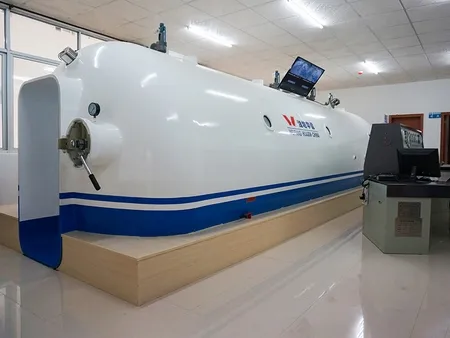

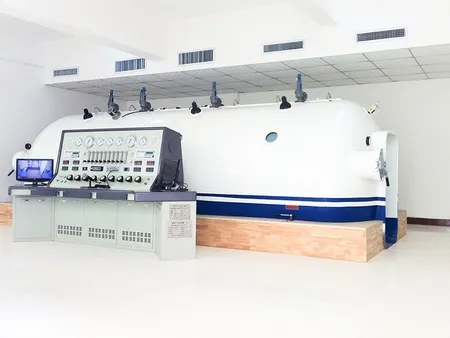

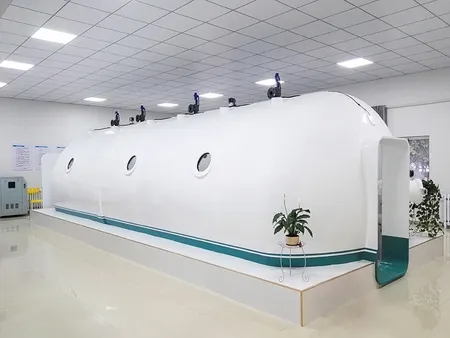

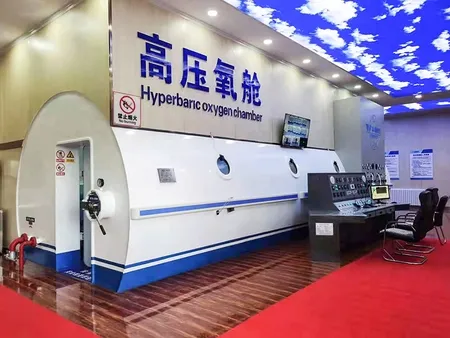

Multiplace Cylindrical Hyperbaric Oxygen Chamber
Request a Quote
These multiplace cylindrical hyperbaric oxygen chambers are built for clinical environments requiring high-pressure therapy for multiple users. The interior layout and functional features can be customized to accommodate different patient capacities and medical needs, making them a practical solution for hospitals looking to expand or upgrade their HBOT services. With a classic round-body structure and scalable design, they combine efficiency with flexibility to support group treatments safely and comfortably.
Main Components

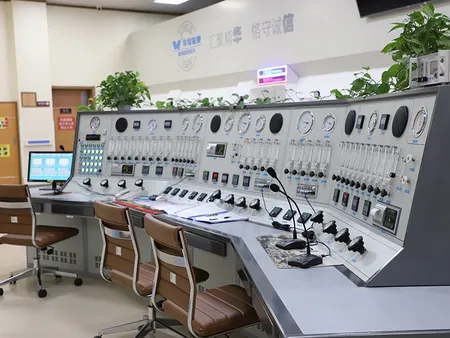

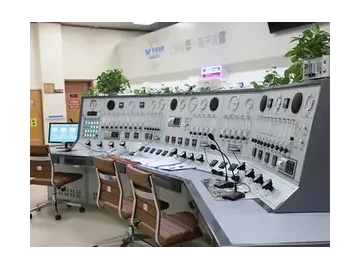

Touchscreen Centralized Control System
The hyperbaric chambers feature a fully digital control console with a large central touchscreen. All operating and monitoring functions are integrated into this main station, eliminating the need for a separate side console attached to the chamber body. This layout simplifies bed transfer, avoids miscommunication between operators and monitors, and improves workflow efficiency. All pressure gauges and indicators are positioned on a single control panel, allowing operators to manage the chamber from one place without moving back and forth between stations.

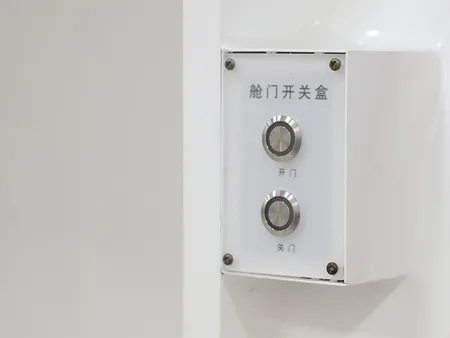

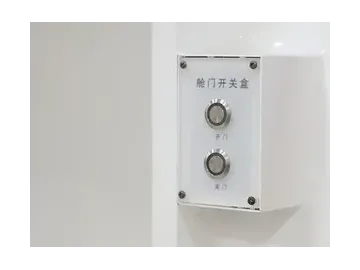

Pneumatic Door Lock
A pneumatic locking mechanism is used for emergency access. It’s easy to operate and designed to ensure safety during pressure changes.

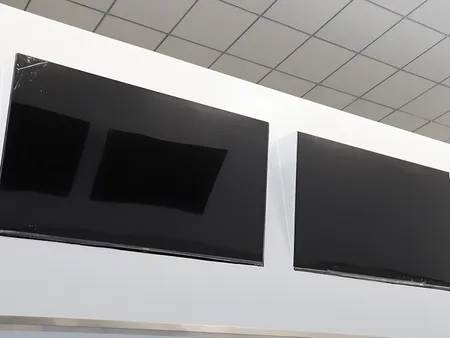

Real-Time Monitoring System
A dedicated monitoring setup allows staff to continuously observe the condition of patients inside the chamber during treatment, supporting both medical supervision and user safety.

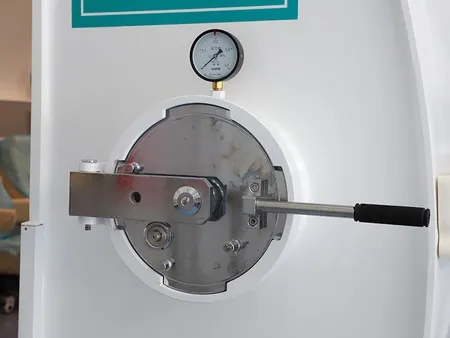

Medical Lock
A medical lock allows items or medication to be delivered quickly and safely between the inside and outside of the chamber without opening the door or interrupting therapy.

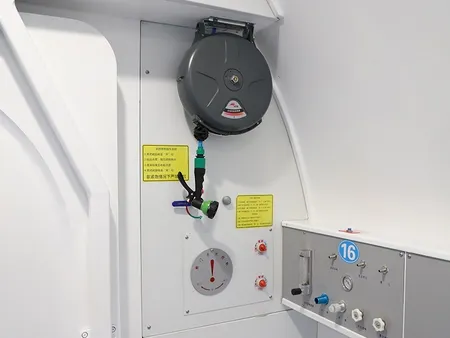

Fire Protection System
All compartments inside the hyperbaric chamber are equipped with water mist fire suppression systems. These fire protection systems release a fine spray that effectively controls fire while minimizing damage to equipment and ensuring a safe treatment environment. In the event of a water supply interruption, the system is designed to stop spraying automatically, preventing malfunction or unexpected discharge during operation.
Specifications
This model is classified as a large medical hyperbaric chamber. It is custom-built based on each client’s requirements, including capacity, layout, and functionality. Detailed specifications and configuration data will be provided after consultation to ensure proper alignment with operational and clinical needs.
