HYPERBARIC OXYGEN THERAPY (HBOT)
Hyperbaric chamber for providing pure oxygen at pressure up to 3.0ATA for multiple patients
- Maximum allowable working pressure (MAWP)0.2MPa (3.0ATA)
- CapacityCustomizable

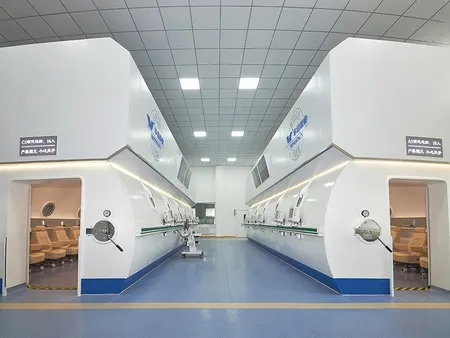

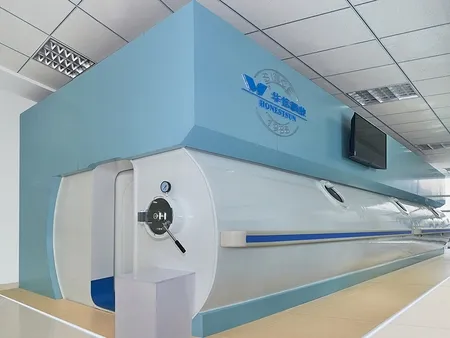

Multiplace Cylindrical Hyperbaric Oxygen Chamber (Omega Shape)
Request a Quote
Omega-shape chambers are built with a flat ceiling and flat base structure, offering higher space utilization inside the cabin. This design not only improves comfort and mobility for multiple users but also simplifies the installation process, particularly in hospitals with limited ceiling height or complex layouts. The number of seats and integrated features can be customized according to medical or operational requirements, making these systems highly adaptable for a wide range of clinical environments. With efficient use of space and flexible configuration, Omega chambers meet the needs of modern facilities aiming to expand their HBOT capabilities.
Main Components

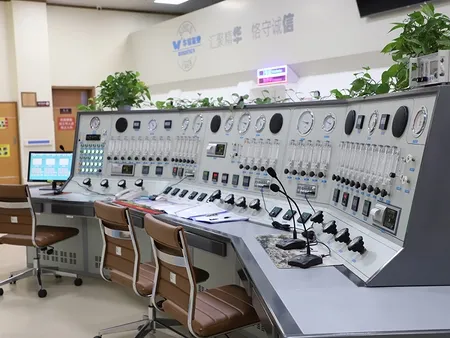

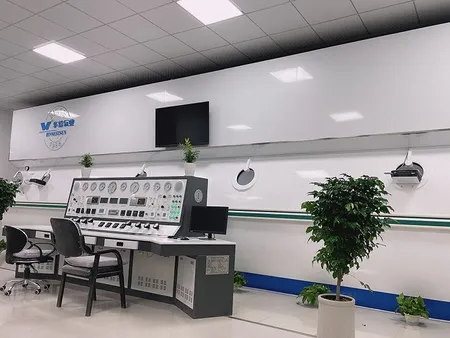

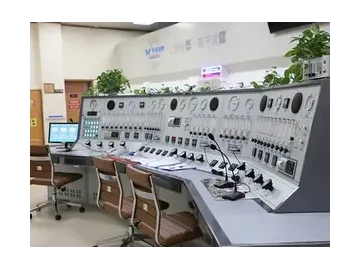

Control System with Touchscreen
The Omega shape hyperbaric chambers are managed through a fully integrated digital control panel equipped with large touchscreen interfaces. All monitoring and operating functions are centralized into a single console, eliminating the need for separate control stations on the chamber body. This setup improves efficiency during therapy sessions and avoids the operational disconnect that can occur between remote controls and central management. Instrument readings and control valves are logically grouped for easy access, helping operators manage everything from one place without constantly moving between primary and secondary stations.

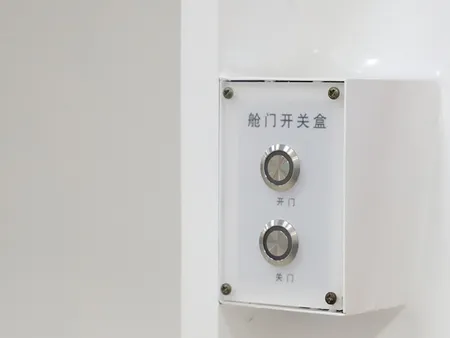

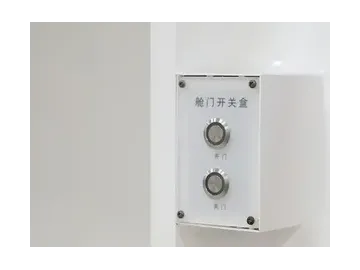

Pneumatic Emergency Valve
Ensures fast and safe door operation through a user-friendly pneumatic control, offering reliability in both HBOT routine use and emergency scenarios.

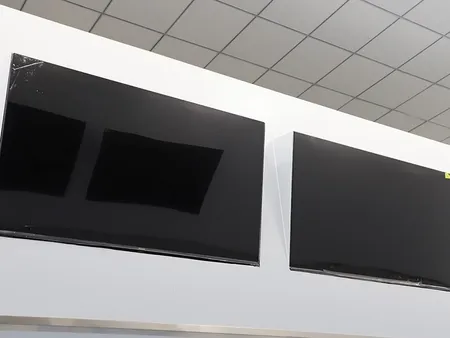

Patient Monitoring System
Real-time visual monitoring allows medical staff to track patient status throughout the session without entering the chamber.

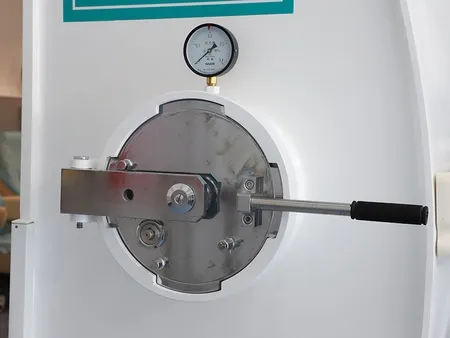

Medical Lock
Enables secure delivery of supplies and tools without pressure loss, maintaining internal sealing performance and operational convenience.

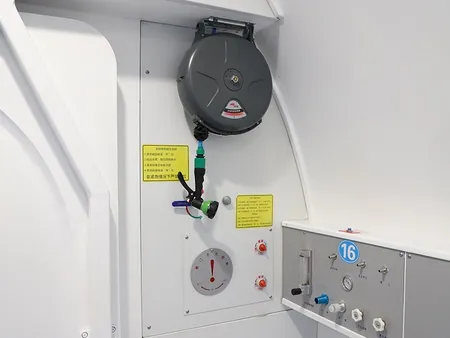

Fire Protection System
Each hyperbaric chamber is equipped with a fine water mist spray system that actively suppresses fires by cooling surfaces and displacing oxygen. It includes an automatic shutoff mechanism to prevent complications during water supply interruptions, adding an extra layer of safety to the chamber environment.
Specifications
These large-scale medical hyperbaric chambers are custom-built based on client requirements. Detailed technical specifications are available upon request to ensure accurate configuration and support for specific clinical or operational needs.
Photo Gallery
