PV cylindrical fuse is designed for solar systems to disconnect circuits during potential overloads or short-circuits caused by inverters and current feedback, so as to protect the entire photovoltaic setup. PV cylindrical fuses can also be used in other DC circuits for overload and short-circuit protection. Here we present three models of PV cylindrical fuses that conform to the IEC 60269-1 and IEC 60269.6 standards.

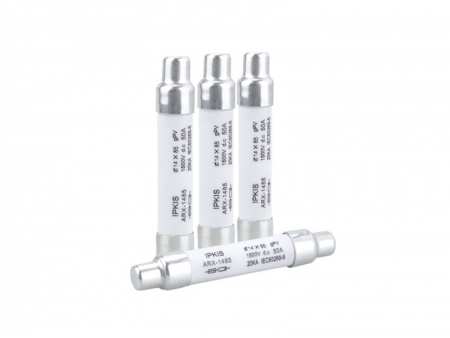

PV Cylindrical Fuse, ARX-1485
  • Rated Voltage: 1500V
  • Rated Current: 2A-50A

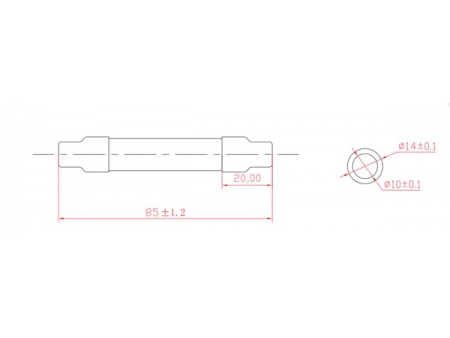

  • Fuse Size: 14*85mm
  • Classification: gPV
  • Standards: GB/T 13539.6, IEC 60269-6
  • Breaking Capacity: 35KA

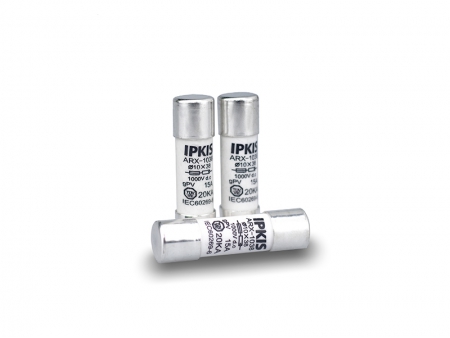

PV Cylindrical Fuse, ARX-1038
  • Rated Voltage: 1000V
  • Rated Current: 2A - 32A

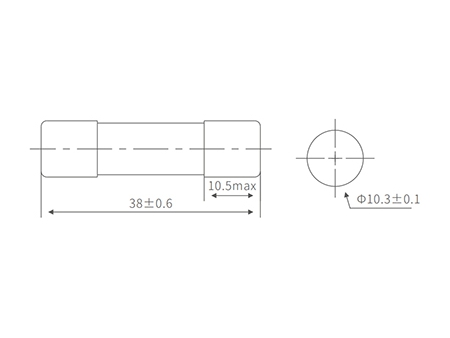

  • Fuse Size: 10*38mm
  • Classification: gPV
  • Standards: GB/T 13539.6, IEC 60269-6
  • Breaking Capacity: 20kA
Model Rated Current I²t (A2s) Watts Loss
Pre-Arcing Total Clearing 0.8In 1.0In
ARX-1038 2 1.2 3.3 0.68 1.36
ARX-1038 3 3.9 11 0.75 1.42
ARX-1038 4 10 27 0.94 1.58
ARX-1038 5 18 48 0.98 1.83
ARX-1038 6 31 89 1.10 1.84
ARX-1038 8 3.1 31 1.13 1.86
ARX-1038 10 7.2 68 1.21 2.08
ARX-1038 12 16 136 1.38 2.62
ARX-1038 15 24 215 1.67 2.95
ARX-1038 20 38 392 1.92 3.12
ARX-1038 25 71 508 2.10 3.46
ARX-1038 30 102 821 2.30 3.78
ARX-1038 32 111 952 2.42 3.91

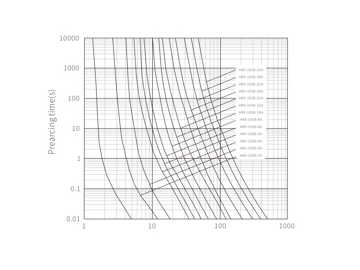

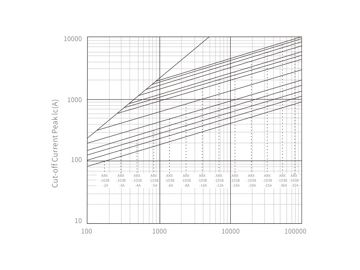

Data Curve

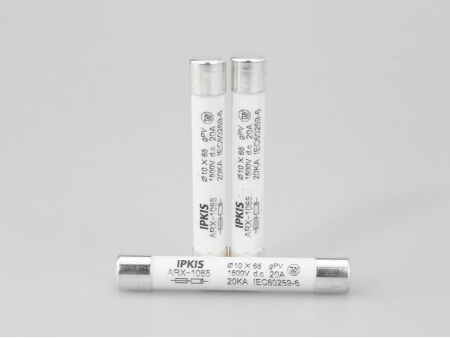

PV Cylindrical Fuse, ARX-1065
  • Rated Voltage: 1500V
  • Rated Current: 2A - 32A
  • Fuse Size: 10*65mm
  • Classification: gPV
  • Standards: GB/T 13539.6, IEC 60269-6
  • Breaking Capacity: 20kA
Model Rated Current I²t (A2s) Watts Loss
Pre-Arcing Total Clearing 0.8In 1.0In
ARX-1065 2 1.2 3.3 0.68 1.36
ARX-1065 3 3.9 11 0.75 1.42
ARX-1065 4 10 27 0.94 1.58
ARX-1065 5 18 48 0.98 1.83
ARX-1065 6 31 89 1.10 1.84
ARX-1065 8 3.1 31 1.13 1.86
ARX-1065 10 7.2 68 1.21 2.08
ARX-1065 12 16 136 1.38 2.62
ARX-1065 15 24 215 1.67 2.95
ARX-1065 20 38 392 1.92 3.12
ARX-1065 25 54 516 2.23 3.27
ARX-1065 30 61 632 2.57 3.42
ARX-1065 32 65 705 2.69 3.51
Data Curve
PV Cylindrical Fuse, ARX-1085
  • Rated Voltage: 1500V
  • Rated Current: 2A - 35A
  • Fuse Size: 10*85mm
  • Protection Classification: gPV
  • Standards: GB/T 13539.6, IEC 60269-6
  • Breaking Capacity: 20kA
Model Rated Current I²t (A2s) Watts Loss
Pre-Arcing Total Clearing 0.8In 1.01n
ARX-1085 2 4 8 1.0 2.0
ARX-1085 3 6 11 1.1 2.1
ARX-1085 4 8 14 1.2 2.2
ARX-1085 5 11 22 1.4 2.4
ARX-1085 6 15 30 1.5 2.6
ARX-1085 8 9 35 1.8 3.0
ARX-1085 10 10 98 2.2 3.5
ARX-1085 12 12 120 2.5 3.8
ARX-1085 15 14 170 3.0 4.8
ARX-1085 20 34 400 3.5 6.2
ARX-1085 25 65 550 4.0 7.2
ARX-1085 30 97 720 4.5 8.3
ARX-1085 32 116 792 4.8 8.9
ARX-1085 35 129 883 5.0 9.4
Data Curve
