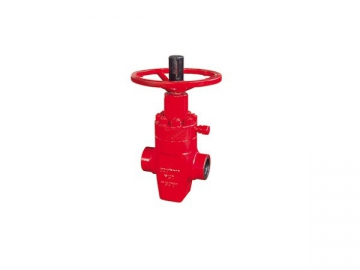

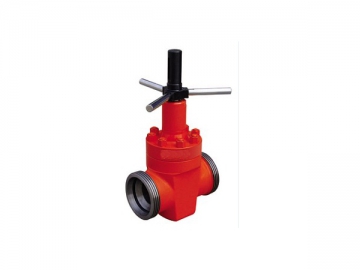

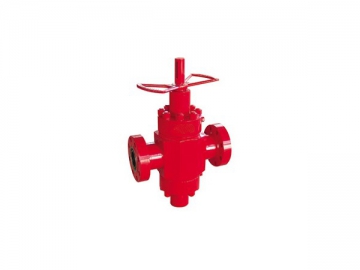

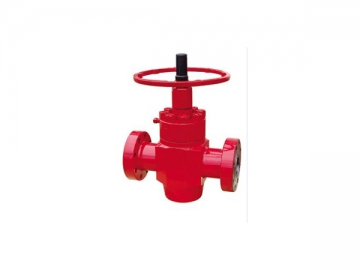

Plate Gate Valve

Plate gate valve is a major componentof production tree, tubing head, casing head, manifold, etc. Over the past fewyears, we at Rundong continually use internationallyadvanced technologies to upgrade our plate gate valve, which is made accordingto API Spec 6Astandards in terms of product design, material selection, production,acceptance check, etc.

Parameters

Model	PFF103-21	PFF52-35	PFF55-35	PFF103-35	PFF65-60	PFF65-70	PFF78-70	PFF103-70	PFF65-105	PFF78-105	PFF103-105
Inside nominal diameter (DN)	103	52	65	103	65	65	78	103	65	78	103
Nominal pressure (MPa)	21	35			60	70			105		105
Connection length(A)	511	371	422	550	380	565	620	670	533	598	737
Flange OD (D)	290	215	245	310	245	230	270	315	255	290	360
Handwheel diameter (C)	400	320	320	400	360	400	450	550	450	500	650
Backing ring No.	R37	R24	R27	R39	BX130	BX153	BX154	BX155	BX153	BX154	BX155
Weight (Kg)	210	48	105	284	130	154	231	382	250	336	550

Thanks for visitingour website! Rundong is a professional plate gatevalve manufacturer and supplier, located in China. Through more than 40 yearsof experience, we are capable of providing a wide range of oil equipment,including mud pump, drill bit, power torque, and more. As a result of ourstrict quality and cost control measures, our high quality products areavailable at economical prices. Additionally, our access to convenienttransportation allows us to make deliveries at reasonable rates for our customers.If you require information, please contact us. Our attentive customer servicestaff looks forward to working with you.
