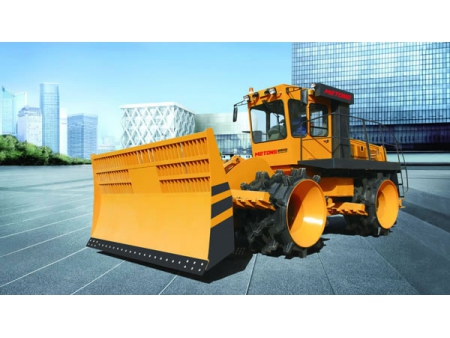

GYL283 Landfill Compactor
Request a Quote
Consulting Products Information
Technical Parameters of the Road Roller:
| Model | GYL283 |
| Operating weight (kg) | 28000 |
| Rolling width (mm) | 3430 |
| Max. travel speed (km/h) | 10.9 |
| Gradeability (%) | 100 |
| Dozer blade dimensions （Width×height）(mm) | 1880×3800 |
| Wheelbase (mm) | 3500 |
| Ground clearance (mm) | 490 |
| Teeth number per wheel (Front/reverse) | 50/40 |
| Diesel engine | SHANGCHAI SC11CB 255 |
| Rated output power （kw） | 187 |
| Overall dimensions （Length ×width ×height）（mm） | 8150×3430×3650 |
