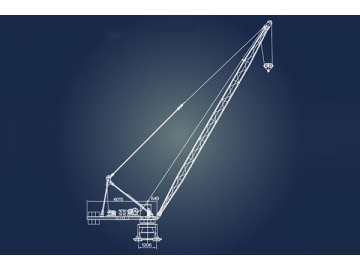

WQ20 Luffing Jib Crane
Product descriptions
The Jushen WQ20 luffing jib crane advanced capabilities include operating in a wide radius. The radius of gyration is as high as 14m, and amplitude adjustment is supported with loads within the rated capacity, improving the construction efficiency. The crane components Jushen provides are highly standardized and can be widely used, making the installation, transporting between sites and maintenance all very convenient.
Customized service is also available of this kind of crane by Jushen.
Parameters:| Angle of elevation | 15 – 75° |
| Radius range | 3.5 – 14m |
| Max. lifting capacity | 1.5 – 2t |
| Operation type | Operation board with a rocker |

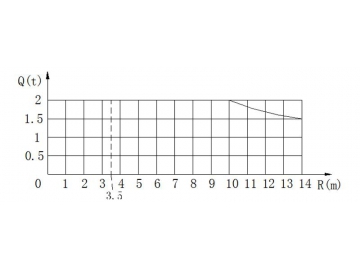

lifting capability curve(1) Lifting Mechanisam:
| Motor type | YZRW160L-6 |
| Working level | M5 |
| Motor power | 11KW |
| Reducer type | JZQ500-3-Ⅷ-F |
| Lifting speed | 16.2m/min |
| Brake type | YWZ300/45 |
| Diameter of drum | Φ295mm |
| Steel cable | 35WX7-12 (no twisting) |
| Steel cable | YZR132M1-6 |
| Working level | M4 |
| Motor power | 2.2KW |
| Reducer model | XX4-40-157.5 |
| Slewing speed | 0.78r/min |
| Slewing bearing | 011.40.900 m=8 Z=130 |
| Motor type | Y132M-6 |
| Working level | M4 |
| Motor power | 4KW |
| Luffing speed | 2.44m/min |
| Steel rope | 6X19(W)-9-155 |
Jushen is a leading construction crane manufacturer since 1974, an experienced 1.5~2 ton luffing jib crane supplier, our company design and manufacture building construction machinery and heavy equipment as well as providing vertical lifting solutions for customers. With rich experience and quality manufacturing equipment, we can provide quality building construction crane and custom luffing jib cranes in specific demands.
