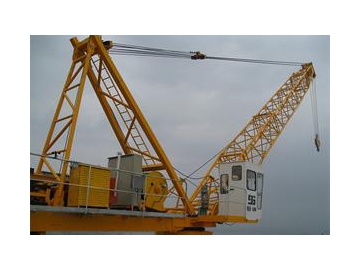

WQ160 Luffing Jib Crane
Product descriptions
The WQ160 luffing jib crane is able to operate in a wide radius. The radius of gyration is as high as 23.5m, and amplitude adjustment is supported with loads within the rated capacity, improving construction efficiency. Also, a monitor system is equipped on this crane to facilitate real-time observation of the working site, enabling intelligent management.
Customized service is also available for this kind of crane by Jushen.

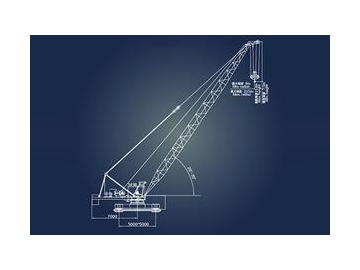

Parameters:| Angle of elevation | 20 - 70° |
| Radius range | 9 - 23.5m |
| Max. lifting capacity | 6.2 - 16t |
| Operation type | Operation board with a handle |

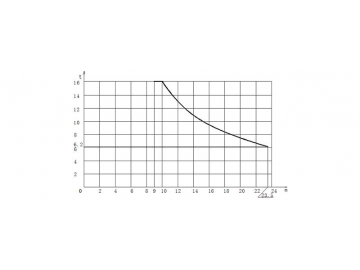

Figure 3 lifting capability curve(1) Lifting Mechanism:
| Type | 70RCS40 |
| Working level | M4 |
| Motor type | YRTE3180L-4 |
| Motor power | 51.5/62kW |
| Lifting speed | 15.37/30.7 m/min |
| Steel cable | 18×19-Φ20-1850 (GB8918) |
| Working level | M4 |
| Motor type | YLEW112M-6 |
| Motor power | 5.5KW |
| Reducer type | XX4-100-195 |
| Slewing speed | 0-0.62r/min |
| Type | JM-4 |
| Working level | M4 |
| Motor type | YZR180L-6 |
| Motor power | 15kW |
| Luffing speed | 16m/min |
| Steel cable | 6×19-Φ16-1850 (GB8918) |
Jushen is a leading construction crane manufacturer since 1974, an experienced 6~16 ton luffing jib crane supplier, our company design and manufacture building construction machinery and heavy equipment as well as providing vertical lifting solutions for customers. With rich experience and quality manufacturing equipment, we can provide quality building construction crane and custom luffing jib cranes in specific demands.
