WQ100 Luffing Jib Crane
Product descriptions

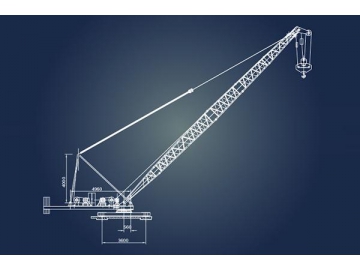

The WQ100 luffing jib crane is able to work in a wide radius. The radius of gyration is as high as 24m, and amplitude adjustment is supported with loads within the rated capacity, improving the construction efficiency. Frequency conversion technology is adopted in the lifting mechanism, luffing mechanism, and slewing mechanism of this crane, making the operation smooth and impact-free, adding greatly to its working safety.
Customize service is also available of this kind of crane by Jushen.
Parameters:| Working elevation | 15 – 75° |
| Working radius | 8 – 24m |
| The max. load | 5 – 10t |
| Type of operation | Portable |

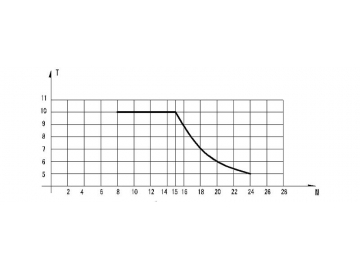

lifting capability curve(1) Hoisting mechanism:
| Type of electromotor | YRTE180M4-4 (B4) |
| Working level | M5 |
| Power of electromotor | 51.5KW |
| Type of reducer | J004 i=35.6×1.65/17.8×1.65 |
| Hoisting speed | 15.37/30.7m/min |
| Diameter of rope roller | Φ675mm |
| Type of steel cable | Φ18 |
| Type of electromotor | Y132M1-6 |
| Working level | M4 |
| Power of electromotor | 4KW |
| Type of reducer | XX4-100-195C |
| Slewing speed | 0 - 0.62r/min |
| Electromagnetic shaft coupling | QZJ-40 |
| Slewing bearing | F-QWA1250X40-00 m=10 Z=144 |
| Type of electromotor | Y160L-6 |
| Working level | M4 |
| Power of electromotor | 11KW |
| Type of reducer | JZQ-400 i=15.75 |
| Luffing speed | 2.25m/min |
| Type of brake | YWZ-200/45 |
| Diameter of rope roller | Φ460mm |
| Type of steel cable | 6X19(W)-17.5-155 |
Jushen is a truthful construction crane manufacturer since 1974, an experienced 5~10 ton luffing jib crane supplier, our company design and manufacture building construction machinery and heavy equipment as well as providing vertical lifting solutions for customers. With rich experience and quality manufacturing equipment, we can provide quality building construction crane and custom luffing jib cranes in specific demands.
