WQ120 Luffing Jib Crane
Product descriptions
The WQ120 luffing jib crane is able to work in a wide radius. The radius of gyration is as high as 24m, and amplitude adjustment is supported with loads within the rated capacity. All the luffing jib cranes produced by Jushen have undergone a shot blasting pre-treatment, and the surface rust level reaches Sa2.0-2.5.
Luffing jib crane is a fixed rotary crane. The low center of gravity optimizes its high stability. Customization service is also available for this kind of crane by Jushen.
Parameters:| Angle of elevation | 15 - 75° |
| Radius range | 3.5 - 24m |
| Max. lifting capacity | 5 - 10t |
| Operation type | Operation board with a rocker |

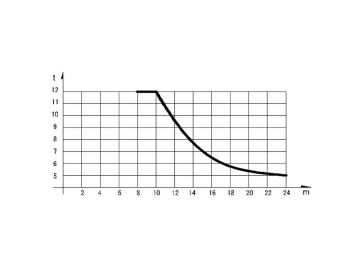

lifting capability curve(1) Lifting Mechanisam:
| Type | RCS40 |
| Motor type | YRTE180-4 |
| Working level | M5 |
| Motor power | 51.5KW |
| Lifting speed | 28.5/17 (m/min) |
| Brake type | YWZ300/45 |
| Steel cable | 35WX7-18-1770 |
| Steel cable | YZR132M1-6 |
| Working level | M4 |
| Motor power | 4KW |
| Reducer model | XX4-100-157.5 |
| Slewing speed | 0.78r/min |
| Slewing bearing | 011.40.1250 m=10 Z=144 |
| Type | JK3 |
| Motor type | Y132M1-6 |
| Working level | M4 |
| Motor power | 4KW |
| Luffing speed | 2m/min |
| Steel rope | 6X19(W)-12-1570 |
Jushen is a truthful construction crane manufacturer since 1974, an experienced 5~10 ton luffing jib crane supplier, our company design and manufacture building construction machinery and heavy equipment as well as providing vertical lifting solutions for customers. With rich experience and quality manufacturing equipment, we can provide quality building construction crane and custom luffing jib cranes in specific demands.
