Perkins Series Diesel Engine Manufacturer

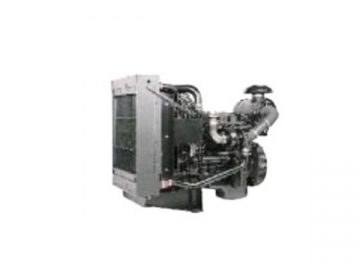

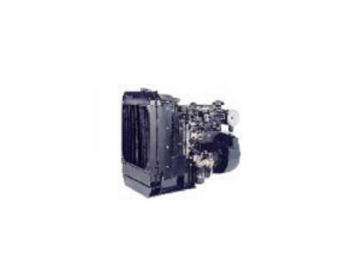

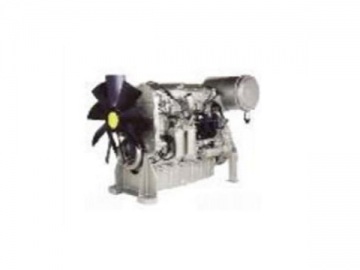

Perkins Series Diesel Engine

Request a Quote

View All: http://dieselpower-en.com

For 75 years Perkins has always taken the lead in the design and manufacture of high-performance diesel engines in the field. The continuous development programme of Perkins offers one of the most advanced and comprehensive ranges of purpose-built diesel and gas engines available today. Meanwhile, it commits to providing the optimum power solutions for diesel engines.

1. 400 Series 11.2 to 39.3 kVA
a. 1.1 to 2.2 litre
b. In-line 3 and 4 cylinders
c. Naturally aspirated
The 400 series Perkins diesel engine, a significant evolution of the compact engine family, offers superior performance, with low emissions and low operating costs, all of which in a small efficient package.

2. 1100 Series 30 to 228 kVA
a. 3.3, 4.4 and 6.6 litre
b. In-line 3, 4 and 6 cylinder
c. Naturally aspirated
d. Turbocharged
e. Turbocharged and charge-cooled
1100 Series is a multigenerational product designed to provide an optimum range of power solutions for both areas with discharge limits or with no discharge limits.

3. 1000 Series 93 to 165 kVA
a. 6.0 litre
b. In-line 6 cylinders
c. Turbocharged
d. Turbocharged charge-cooled
Perkins advanced combustion technology makes the Perkins series diesel engine highly productive and fuel efficient. In addition, class leadership on the SAE maintainability index – a widely accepted means of comparing the serviceability of engines – and service intervals of up to 500 hours further minimizes operating costs of the diesel engines.

4. 1300 Series 189 to 275 kVA
a. 8.7 litre
b. In-line 6 cylinders
c. Turbocharged and charge-cooled
The 1300 series range features fully authorized electronic engines coupled with hydraulically actuated electronic controlled unit injectors, with clean, strong power, low noise and high fuel efficiency. This range of Perkins series diesel engines also boast proven reliability, remarkable design, and are fitted with low-cost roller cam and wet liners.

5. 2200 Series 350 to 500 kVA
a. 13 litre
b. In-line 6 cylinder
c. Turbocharged and charge-cooled
Developed on the basis of a proven industrial engine, this 13 litre turbocharged and charge cooled unit provides economic and reliable power at key modes in the industry. All the Perkins series diesel engines in this family meet the requirements of EPA/EC Stage 2 emission standards and are capable of meeting 1⁄2 TA Luft (1986) NOx levels.

6. 2500 Series 455 to 687 kVA
a. 15 litre
b. In-line 6 cylinder
c. Turbocharged and charge-cooled
The 2500 series builds on the strengths of the already very successful 2000 series family. This range of Perkins series diesel engines features exceptional power-to-weight ratio, resulting in exceptional fuel consumption. This engine offers power solutions to both emissions controlled and non-controlled areas.

7. 2800 Series 591 to 750 kVA
a. 18 litre
b. In-line 6 cylinders
c. Turbocharged and charge-cooled
A well proven family of 6 cylinder in-line engines is designed with particular focus on the standby sector. Developed from a proven heavy-duty industrial base, the 2800 Series Perkins diesel engines offer superior performance and reliability in economic operation with low exhaust emissions.

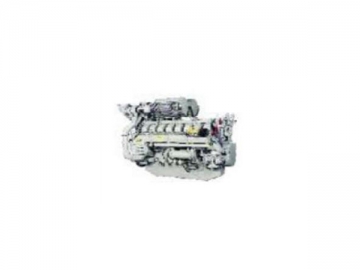

8. 4000 Series 585 to 2500 kVA
a. 23 to 61 litre
b. In-line 6 and 8 cylinders
c. Vee 12 and 16 cylinders
d. Turbocharged and charge-cooled
A unique piston and cylinder design, incorporating an individually operated unit fuel injector, gives the Perkins 4000 series diesel engines ultra-low fuel consumption and emissions. The gas powered engines available in this range received the Queen Award for Environmental Achievement.

The delicate design and reliable performance of the Perkins series diesel engine have won Perkins a vast client base. What's more, with increasing development of its agency service and distribution network, Perkins has grown into a top ranking supplier of 4-2000 kW (5 - 2600 hp) diesel and gas engines. Ranging from 5 to over 2,600 hp, the Perkins series diesel engines are widely adopted by a large number of equipment manufacturers in the construction, power generation, materials handling, agricultural and general industrial markets.

Technical parameters

Genset Power Selector Chart

50HZ

Net Engine Output

Typical Generator Efficiency

Typical Power Factor

Typical Generating Set Output

1500/1800 rev/min switchable

Model

Baseload kWm

Prime kWm

Standby kWm

Baseload

Prime

Standby

kWe

Kva

kWe

kVA

kWe

kVA

3000 rev/min (8.3 kVA to 36.4 kVA)

402D-05G	*	7.7	8.5	86	0.8	*	*	6.6	8.3	7.3	9.1
403D-07G	*	11.5	12	12.6	0.8	*	*	9.9	12.3	10.8	13.5
403D-11G	*	16.5	18.1	18.1	0.8	*	*	14.2	17.7	15.6	19.5
403D-15G	*	20.2	22.2	22.2	0.8	*	*	17.6	21.9	19.3	24.1
404D-22G	*	29.7	32.7	32.7	0.8	*	*	26.5	33.1	29.1	36.4

1500 rev/min (9 kVA to 2500 kVA)

403D-11G	*	8.4	9.2	86	0.8	*	*	7.2	9	7.9	9.9
403D-15G	*	12	13.2	87	0.8	*	*	10.4	13	11.4	14.3
404D-22TG	*	18.4	20.3	88	0.8	*	*	16.2	20.3	17.8	22.3
1103A-33G	*	24.3	26.7	90	0.8	*	*	21.8	27.3	24	30
1103A-33TG1	*	27.7	30.4	87	0.8	*	*	24	30	26.4	33
1103A-33TG1	*	41.3	45.6	87	0.8	*	*	36	45	39.7	49.6
1103A-33TG2	*	53.8	59.3	89	0.8	*	*	48	60	52.8	66
1104A-44TG1	*	58.4	64.3	89	0.8	*	*	52	65	57.2	71.5
1104A-44TG2	*	71.9	79.1	89	0.8	*	*	64	80	70.4	88
1104C-44TAG2	*	90.1	99.5	90	0.8	*	*	81.4	101.4	89.6	111.9
1006TG1A	*	83	91.5	90	0.8	*	*	74.5	93	82.5	103
1006TG2A	*	91	100	90	0.8	*	*	82	102.5	90	112.5
1006TAG	*	121	133.5	90	0.8	*	*	109	136	120	150
1006TAG2	*	129.3	143	93	0.8	*	*	120	150	132	165
1106C-E66TAG4	*	158.4	175.5	93	0.8	*	*	147.3	184.1	163.2	204
1306C-E87TAG3	164	180	199	92	0.8	151	189	166	208	183	229
1306C-E87TAG4	179	198	217	92	0.8	165	205	182	228	200	250
1306C-E87TAG5	185	204	224	92	0.8	170	213	188	235	206	258
1306C-E87TAG6	198	217	239	92	0.8	182	228	200	250	220	275
2206A-E13TAG2	*	305	349	92	0.8	*	*	280	350	320	400
2206A-E13TAG3	*	349	392	92	0.8	*	*	320	400	360	450
2506A-E15TAG1	*	396	434	92	0.8	*	*	364	455	400	500
2506A-E15TAG2	*	435	478	92	0.8	*	*	400	500	440	550
2806A-E18TAG1A	*	522	574	92	0.8	*	*	480	600	528	660
2806A-E18TAG2	*	565	609	92	0.8	*	*	520	650	560	700
4006-23TAG2A	505	632	695	95	0.8	480	600	600	750	660	825
4006-23TAG3A	540	679	760	94	0.8	512	640	640	800	720	900
4008TWG2	560	710	782	95	0.8	532	665	675	843	743	929
4008TAG	566	715	787	95	0.8	538	672	679	849	748	935
4008TAG1A	606	767	844	95	0.8	576	720	728	911	802	1002
4008TAG2A	681	861	947	95	0.8	647	809	818	1022	900	1125
4012-46TAG0A	842	1053	1158	95	0.8	800	1000	1000	1250	1100	1375
4012-46TWG2A	833	1055	1166	95	0.8	791	989	1002	1253	1108	1385
4012-46TWG3A	909	1149	1263	95	0.8	864	1079	1092	1364	1200	1500
4012-46TAG1A	909	1148	1263	95	0.8	864	1080	1091	1364	1280	1500
4012-46TWG4A	-	1254	1342	96	0.8	-	-	1200	1500	1325	1600
4012-46TAG2A	1005	1267	1395	95	0.8	955	1194	1204	1505	1504	1656
4012-46TAG3A	1200	1440	1583	95	0.8	1140	1425	1368	1710	1622	1880
4016-61TRG1	1178	1558	1684	96	0.8	1120	1400	1480	1850	1600	2000
4016TAG1A	1219	1537	1690	96	0.8	1170	1463	1476	1844	1622	2028
4016-61TRG2	1347	1684	1894	96	0.8	1280	1600	1600	2000	1800	2250
4016TAG2A	1362	1715	1886	96	0.8	1307	1634	1646	2058	1811	2263
4016-61TRG3	1500	1875	2083	96	0.8	1440	1800	1800	2250	2000	2500

Gas Power 1500 rev/min (307 kWe to 1000 kWe)

4006-23TRS1†	322	-	-	95.4	1	307	307	-	-		-
4006-23TRS2†	393	-	-	95.4	1	375	375	-	-		-
4008-30TRS1†	447	-	-	95	1	425	425	-	-		-
4008-30TRS2†	526	-	-	95	1	500	500	-	-		-
4012TESI†	632	-	-	95	1	600	600	-	-		-
4016-61TRS1†	912	-	-	96	1	875	-	-	-	-	-
4016-61TRS2†	1042	-	-	96	1	1000	-	-	-	-	-

Technical Data

60HZ	Net Engine Output			Typical Generator Efficiency	Typical Power Factor	Typical Generating Set Output						1500/1800 rev/min switchable
Model	Baseload kWm	Prime kWm	Standby kWm	%		Baseload		Prime		Standby
Model	Baseload kWm	Prime kWm	Standby kWm	%		kWe	Kva	kWe	kVA	kWe	kVA
1800 rev/min (3.9 kWe to 1504 kWe)
402D-05G	*	4.5	5	86	0.8	*	*	3.9	4.9	4.3	5.3
403D-07G	*	6.6	7.3	86	0.8	*	*	5.7	7.1	6.3	7.8
403D-11G	*	10.4	11.4	87	0.8	*	*	9	11.3	9.9	12.4	·
403D-15G	*	14.4	15.8	88	0.8	*	*	12.6	15.8	13.9	17.4	·
404D-22G	*	21.7	23.9	89	0.8	*	*	19.3	24.2	21.3	26.6	·
404D-22TG	*	28.8	31.7	89	0.8	*	*	25.6	32.1	28.2	35.3
404D-22TAG	*	31.5	34.7	89	0.8	*	*	28.4	35.5	31.2	39
1103A-33G	*	32.2	35.4	87	0.8	*	*	27.9	34.9	30.6	38.2	·
1103A-33TG1	*	48.8	53.9	87	0.8	*	*	42.5	53.1	46.9	58.7	·
1103A-33TG2	*	61.2	66.4	89	0.8	*	*	54.5	68.1	60.1	75.1	·
1104A-44TG1	*	68.6	75.5	89	0.8	*	*	60.8	76	66.9	83.6	·
1104A-44TG2	*	82	90.2	89	0.8	*	*	73	91.3	80.3	100.3	·
1006TG1A	*	96.5	106.5	90	0.8	*	*	87	109	96	120
1006TG2A	*	107	118	90	0.8	*	*	96.5	120.5	106	132.5
1006TAG	*	134	147	90	0.8	*	*	120.5	151	132.5	165.5	·
1106C-E66TAG2	*	138.4	155.3	92	0.8	*	*	127.3	159.2	142.9	178.6	·
1106C-E66TAG3	*	146.4	163.4	92	0.8	*	*	136.1	170.1	152	190	·
1106C-E66TAG4	*	177.3	196.3	92	0.8	*	*	164.9	206.1	182.6	228.2	·
1106D-E66TAG2	*	136.6	153.6	92	0.8	*	*	125	156	140	175
1106D-E66TAG3	*	142.4	159.4	92	0.8	*	*	135	169	150	188
1106D-E66TAG4	*	173.7	192.3	92	0.8	*	*	160	200	175	219
1306C-E87TAG3	182	201	220	92	0.8	167	209	185	231	202	253	·
1306C-E87TAG4	194	213	235	92	0.8	178	223	196	245	216	270	·
2206A-E13TAG5	*	349	381	92	0.8	*	*	320	400	350	438	·
2206A-E13TAG6	*	381	435	92	0.8	*	*	350	438	400	500	·
2506A-E15TAG3	*	446	490	92	0.8	*	*	410	513	450	563	·
2506A-E15TAG4	*	495	543	92	0.8	*	*	455	569	500	624	·
2506C-E15TAG4#	-	-	597	92	0.8	-	-	-	-	550	687
2806A-E18TAG1A	*	543	598	92	0.8	*	*	500	625	550	687	·
2806A-E18TAG3	*	592	652	92	0.8	*	*	545	681	600	750	·
4006-23TAG2A	511	638	702	94	0.8	480	600	600	750	660	825
4008TWG2	534	684	756	95	0.8	507	634	650	812	718	898
4008TAG	564	712	784	95	0.8	536	670	676	846	745	931
4006-23TAG3A	570	715	795	95	0.8	540	675	675	844	750	938
4008TAG1	584	744	821	95	0.8	555	694	707	884	780	975
4008TAG2	659	838	924	95	0.8	626	783	796	995	878	1097
4012-46TWG2A	833	1055	1166	95	0.8	791	989	1002	1253	1108	1385
4012-46TWG3A	909	1149	1263	95	0.8	864	1079	1092	1364	1200	1500
4012-46TAG1A	914	1153	1267	95	0.8	868	1085	1095	1369	1204	1505
4012-46TWG4A	-	1254	1342	96	0.8	-	-	1200	1500	1280	1600
4012-46TAG2A	1009	1272	1399	95	0.8	959	1199	1208	1510	1329	1669
4012-46TAG3A	1200	1440	1583	95	0.8	1140	1425	1368	1710	1504	1880
1200 rev/min (592 kWe to 1478 kWe)
4008TAG1	491	623	686	95	0.8	466	583	592	740	652	815
4008TAG2	547	693	763	95	0.8	520	650	658	823	725	906
4016TAG	908	1146	1263	96	0.8	872	1091	1100	1375	1212	1515
4016TAG2	1108	1400	1540	96	0.8	1063	1329	1344	1680	1478	1848
Gas Power 1200 rev/min (576 kWe)
4012TESI†	600	-	-	96	1	576	576	-	-	-	-

* For switchable engines, please consult with your local Perkins representative.
The engine is available as Electro Unit only.
Notes:
– All ratings are for guidance only, please refer to the specific engine technical data sheet for final powers.
– Perkins conditions of sale apply.
– Electrical output is based on typical generator efficiency and is for guidance only.
– All ratings data based on operation under ISO 8528-1, ISO 3046, DIN6271 conditions using typical fan sizes and drive ratios. Performance tolerance quoted by Perkins is ± 5%.
– Baseload Power = Power available for continuous full load operation. An overload of 10% permitted for one hour in every twelve hours of operation.
Please Note: No overload is permitted on 4000 Series.
– Prime Power = Power available at variable load in lieu of main power network (please refer to the engine Technical Data Sheet for engine load factors). An overload of 10% permitted for one hour in every twelve hours of operation.
– Standby Power = Power available at a variable load in the event of a main power network failure up to a maximum of 500 hours per year. No overload is permitted.
– Emergency Standby Power = Power available in the event of a main power network failure, up to maximum of 200 hours per year which may be run continuously. Load factor may be up to 70% of the Emergency Standby Power rating. No overload is permitted.

Technical Specifications

Functional Masterbatch talc-powder.com

Enclosed Flatbed Fiber Laser Cutting Machine cw-lasermachines.com

5W Brushless DC Motor Controller dcmotor-controller.com

Disposable Medical Products syringes-needles.com

Tire Repair Products tirerepair-products.com

Modular Oxygen Generator psa-gasgenerators.com

Plastic Tube Bending Machine (Tube Diameter 6-14mm) autotubebenders.com

Cap & Closure Moulds mw-blowingmachine.com

Semi-Automatic Pendulum Impact Testing Machine friction-testers.com

Other Products

Diesel Generator Sets with Perkins Engines, TP Series power-gensets.com

Diesel Engine ytocorp.com

K Series Diesel Engine for Genset china-cngengine.com

W Series Diesel Engine for Genset sdeciepower.com

H Series Diesel Engine for Genset sdeciepower.com

D Series Diesel Engine for Genset sdeciepower.com

Videos

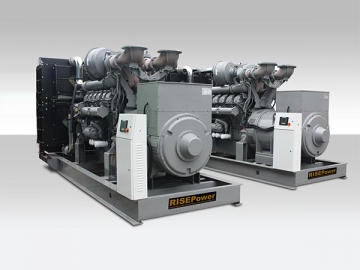

Diesel Generator Set with Perkins Engine

Diesel Generator Set with Lovol Perkins Engine

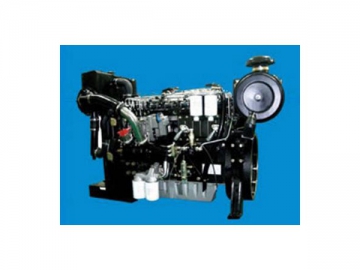

Outboard Diesel Engine

Diesel Engine Production Line

Six Cylinder Diesel Engine

Air Cooled Diesel Engine

Inquiry

DIESEL Model	Length (A)	Height (B)	Width (c)	Length (D)	ElectropaK Dry Weight (kg)
402D-05G
403D-07G	480	528	371	-	71
403D-11G	776	700	449	-	129
403D-15G	820	791	476	-	197
404D-22G	915	840	477	-	242
404D-22TG	988	969	588	-	260
404D-22TAG	1073	997	700	-	300
1103A-33G	1029	951	629	912	412
1103A-33TG1/TG2	1049	951	634	928	420
1104A-44TG1/TG2	1241	951	629	1046	463
1103C-33G2/G3	1045	951	631	928	329
1103C-33TG2/TG3	1048.8	951	634	928	420
1104C-44TG2/TG3	1239	951	614.8	1045.7	401
1104D-44TG1	1238	967	637	-	474
1104C-44TAG1/TAG2	1259	966	721	1121	401
1006TG1A	1559	1124	709	1378	542
1006TG2A	1559	1124	709	1378	586
1006TAG	1685	1065	773	1450	586
1006TAG2	1685	1065	773	1450	586
1104D-E44TG1	1281	940	708	-	483
1104D-E44TAG1/TAG2	1357.7	1090.7	749.6	1067.7	465
1106C-E66TAG2/TAG3	1728.3	1140.4	779.8	1413.8	788
1106C-E66TAG4	1763.2	1140.4	788.3	1421	788
1106D-E66TAG2/TAG3	1728.3	1140.4	779.8	1413.8	788
1106D-E66TAG4	1763.2	1140.4	788.3	1421	788
1306C-E87TAG3/TAG4/TAG5/TAG6	1822	1369	875	1539	895
2206A-E13TAG2/TAG3/TAG5/TAG6	2410	1725	1120	-	1478
2206C-E13TAG2/TAG3	2410	1725	1120	-	1478
2206D-E13TAG2/TAG3	2410	1725	1120	-	1478
2306A-E14TAG2/TAG3	2422	1614	1107	2029	1690
2306C-E14TAG2/TAG3	2657	1718	1120	-	1633
2506A-E15TAG1/TAG2/TAG3/TAG4	2657	1718	1120	-	1633
2506C-E15TAG1/TAG2/TAG3/TAG4	2657	1718	1120	-	1633
2506D-E15TAG1	2657	1718	1120	-	1633
2806A-E18TAG1A/TAG2/TAG3	2545	1807.5	1536	2050	2050
2806C-E18TAG1A/TAG3	2545	1807.5	1536	2050	2050
4006-23TAG2A/TAG3A	3027	1964	1706	2414	2524
4008TAG	3780	2193	1630	3129	3730
4008TAG1/TAG2	3935	2258	1870	3281	4360
4008TAG1A/TAG2A	3852	2067	2046	2921	4270
4008TWG2	2890	1772	1585	2201	3350
4012-46TAG1A/TAG2A/TAG3A	3971	2260	2192	3339	4400
4012-46TWG2A/TWG3A/TWG4A	3714	2255	1978	2930	5283
4016TWG2	4510	3149	2775	3872	8240
4016TAG1A/TAG2A	4460	3239

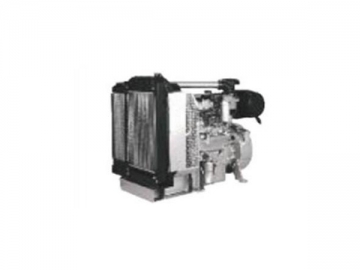

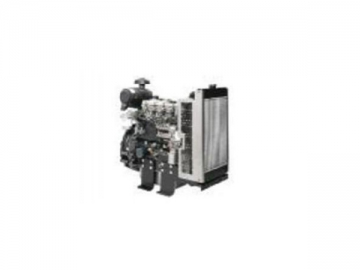

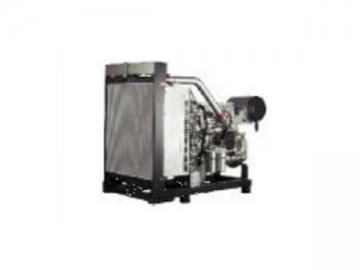

Perkins Series Diesel Engine

Perkins Diesel Engine Powered 7—1800kW Industrial Diesel Generator

LOVOL Marine Diesel Engine

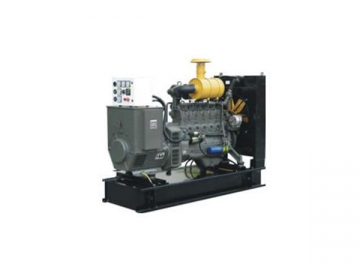

Deutz Diesel Engine Powered 28—120kW Deutz Diesel Generator

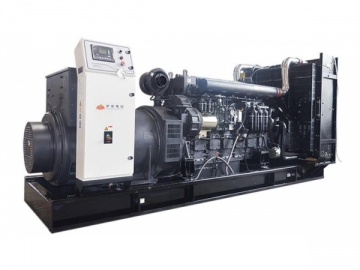

SDEC Diesel Engine Powered 55—700kW SDEC Diesel Generator

1400kW-1800kW Diesel Generator Set

Portable Diesel Air Compressor, LY Series

YDST Series Diesel Oil Burner Barrel Melter, Bitumen Drum Decanter

Automotive Engine Assembly Line
