MT95 Rigid Dump Truck

Request a Quote

View All: http://ytocorp.com/

Overviews

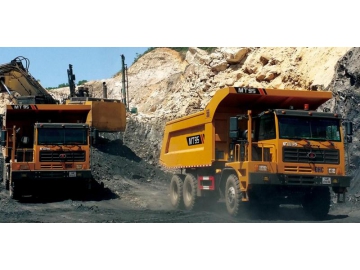

The MT95 heavy duty dump truck is equipped with a 340kW high-powered engine and is designed with a load bearing capacity of 60 tons, making it useful for heavy duty mine transportation applications, such as carrying iron ore, stone, coal and other bulk materials.

Technical Parameters

Model MT95
Gross weight 32,000 kg
Max. payload (nominal payload) 60t
Engine WEICHAI WP12G460E310
Engine power 340kW
Displacement 12L
Transmission FAST 7DS200K
Max. torque 2000Nm
Speed range 7 speeds forward and 1 reverse
Engine speed 2600rpm
Axles load 25T+35T+35T
Tyres 16.00-25-36PR
Max.travel speed 44km/h
Tailgate dump body capacity (heaped) 33m³
Dump body capacity (struck) 32m³
Overall dimension (length × width × height) 9080×3670×4140 mm

Features

The heavy-duty truck features a reinforced, flexible frame capable of bearing up to 60 tons. They are adaptable to harsh working conditions, such as deep pits and complex roads. The chassis structural frame is extremely strong, due to the use of thickened high strength steel plates and large tires.
The front suspension features a double shock absorption structure and has a strong bearing capacity.
The durable self-unloading box is made using a high-strength steel plate.
This heavy duty dump truck uses fully hydraulic steering for greater comfort than mechanical steering.
All truck cabs are equipped with a coach seat.
