High-Low Pumps
Request a Quote
Technical Information
- Displacement: 3~30cm³/rev.
- Rotation direction: clockwise (D), counter-clockwise(S)
- Min. speed: 800r/min
- Max. speed: 2500r/min
- Peak pressure: 250bar
High-Low Pump, Group 2G/2G Technical Parameter
| Displacement | Displacement | Overflow pressure | Max. continuous pressure | Max. intermittent pressure | Max. peak pressure | Min. speed | Max. speed | Volumetric efficiency |
| Y | V | P | P1 | P2 | P3 | nmin | nmax | ηv |
| cm³/rev. | cm³/rev. | bar | t/min | % | ||||
| 3 | 16 | 35...75 | 210 | 230 | 250 | 800 | 2500 | ≥90 |
| 3 | 18 | |||||||
| 4 | 18 | |||||||
| 4 | 20 | |||||||
| 6 | 20 | |||||||
| 6 | 22 | |||||||
| 8 | 20 | |||||||
| 8 | 22 | |||||||
| 10 | 22 | |||||||
| 10 | 25 | |||||||
| 12 | 25 | |||||||
| 12 | 28 | |||||||
| 14 | 28 | |||||||
| 14 | 30 | |||||||

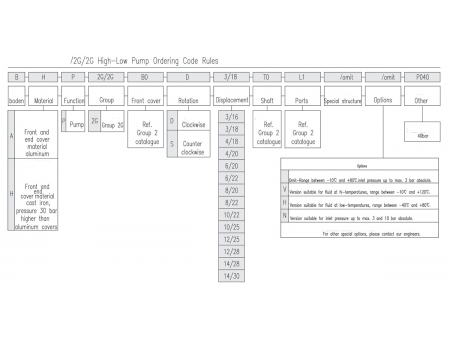

2G/2G High-Low Pump Ordering Code Rules

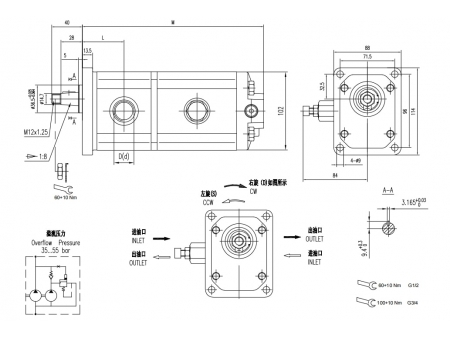

2G/2G High-Low Pump Standard Product Dimensions
| Displacement | Max. pressure | Max. continuous pressure | Max. speed | Min. speed | Dimensions | Oil port code | Inlet | Outlet | ||||
| High | Low | P1 | P2 | P3 | P | L | M | D | d | |||
| (cm³/rev.) | (cm³/rev.) | bar | bar | bar | bar | (r/min) | (r/min) | mm | mm | |||
| 3 | 16 | 210 | 230 | 250 | 3500 | 1000 | 43.6 | 181.8 | L1 | G3/4 | G1/2 | |
| 3 | 18 | 210 | 230 | 250 | 3500 | 1000 | 43.6 | 185.1 | L1 | G3/4 | G1/2 | |
| 4 | 18 | 210 | 230 | 250 | 3500 | 1000 | 44.4 | 186.7 | L1 | G3/4 | G1/2 | |
| 4 | 20 | 210 | 230 | 250 | 3500 | 1000 | 44.4 | 190 | L1 | G3/4 | G1/2 | |
| 6 | 20 | 210 | 230 | 250 | 3500 | 1000 | 46 | 193.3 | L1 | G3/4 | G1/2 | |
| 6 | 22 | 210 | 230 | 250 | 3500 | 1000 | 46 | 196.6 | L1 | G3/4 | G1/2 | |
| 8 | 20 | 210 | 230 | 250 | 35..75 | 3500 | 1000 | 47.7 | 196.6 | L1 | G3/4 | G1/2 |
| 8 | 22 | 210 | 230 | 250 | 3500 | 1000 | 47.7 | 199.9 | L1 | G3/4 | G1/2 | |
| 10 | 22 | 210 | 230 | 250 | 3500 | 1000 | 49.3 | 203.2 | L1 | G3/4 | G1/2 | |
| 10 | 25 | 210 | 230 | 250 | 3500 | 1000 | 49.3 | 208.2 | L1 | G3/4 | G1/2 | |
| 12 | 25 | 210 | 230 | 250 | 3500 | 1000 | 51 | 211.5 | L1 | G3/4 | G1/2 | |
| 12 | 28 | 210 | 230 | 250 | 3500 | 1000 | 51 | 216.5 | L1 | G3/4 | G1/2 | |
| 14 | 28 | 210 | 230 | 250 | 3500 | 1000 | 52.7 | 219.9 | L1 | G3/4 | G1/2 | |
| 14 | 30 | 210 | 230 | 250 | 3500 | 1000 | 52.7 | 223.2 | L1 | G3/4 | G1/2 | |
