High-Low Pumps
Request a Quote
Technical Information
- Displacement: 1~13cm³/rev.
- Rotation direction: clockwise (D), counter-clockwise(S)
- Min. speed: 500r/min
- Max. speed: 3600r/min
- Peak pressure: 250bar
High-Low Pump, Group 1.3G/1.3G Technical Parameter
| Displacement | Displacement | Overflow pressure | Max. continuous pressure | Max. intermittent pressure | Max. peak pressure | Min. speed | Max. speed | Volumetric efficiency |
| V | V | P | P1 | P2 | P3 | nmin | nmax | ηv |
| cm³/rev. | cm³/rev. | bar | r/min | % | ||||
| 2.1 | 1 | 40...45 | 210 | 230 | 250 | 500 | 3600 | ≥93 |
| 4.2 | 1 | |||||||
| 4.2 | 1.6 | |||||||
| 6.3 | 2.1 | |||||||
| 6.3 | 3 | |||||||
| 6.3 | 3.6 | |||||||
| 8.8 | 1.6 | |||||||
| 8.8 | 2.1 | |||||||
| 8.8 | 3.6 | |||||||
| 10.9 | 2.1 | |||||||
| 10.9 | 3.6 | |||||||
| 10.9 | 4.2 | |||||||
| 13 | 3.2 | |||||||
| 13 | 4.2 | |||||||

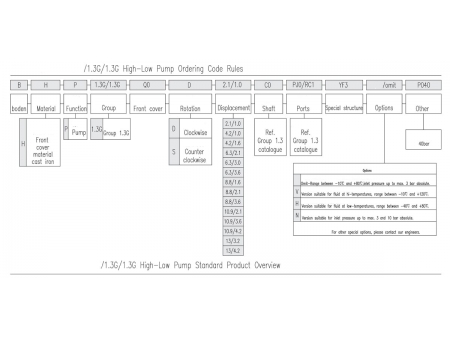

1.3G/1.3G High-Low Pump Ordering Code Rules

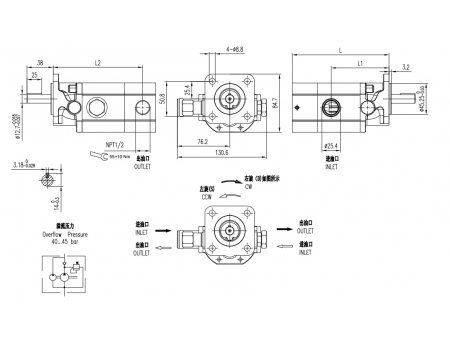

1.3G/1.3G High-Low Pump Standard Product Dimensions
| Displacement | Max. pressure | Max. continuous pressure | Max. speed | Min. speed | Weight | Dimensions | Oil port code | Inlet | Outlet | ||||||
| Low | High | P1 | P2 | P3 | P | L | L1 | L2 | D | d | D | d | |||
| (m³/rev) | (m³/rev) | bar | bar | bar | bar | (r/min) | (r/min) | Kg | mm | mm | mm | mm | |||
| 2.1 | 1 | 210 | 230 | 250 | 40.45 | 3600 | 500 | 1.45 | 157.8 | 64.2 | 100.2 | PJ0 | NC2 | Ø25.4 | NPT1/2 |
| 4.2 | 1 | 210 | 230 | 250 | 3600 | 500 | 1.6 | 157.8 | 64.2 | 100.2 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
| 4.2 | 1.6 | 210 | 230 | 250 | 3600 | 500 | 1.68 | 159.8 | 64.2 | 102.2 | PJ0 | NC2 | Ø25.4 | PT1/2 | |
| 6.3 | 2.1 | 210 | 230 | 250 | 3600 | 500 | 1.9 | 154.2 | 61.2 | 95.2 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
| 6.3 | 3 | 210 | 230 | 250 | 3600 | 500 | 1.98 | 157.8 | 61.2 | 95.2 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
| 6.3 | 3.6 | 210 | 230 | 250 | 3600 | 500 | 2 | 159.5 | 61.2 | 99.2 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
| 8.8 | 1.6 | 210 | 230 | 250 | 3600 | 500 | 2.1 | 162 | 69.6 | 103.6 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
| 8.8 | 2.1 | 210 | 230 | 250 | 3600 | 500 | 2.15 | 162.7 | 69.6 | 103.6 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
| 8.8 | 3.6 | 210 | 230 | 250 | 3600 | 500 | 2.25 | 167.9 | 69.6 | 107.6 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
| 10.9 | 2.1 | 210 | 230 | 250 | 3600 | 500 | 2.4 | 170.2 | 77.1 | 111.1 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
| 10.9 | 3.6 | 210 | 230 | 250 | 3600 | 500 | 2.5 | 175.4 | 77.1 | 115.1 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
| 10.9 | 4.2 | 210 | 230 | 250 | 3600 | 500 | 2.55 | 177.7 | 77.1 | 115.1 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
| 13 | 3.2 | 210 | 230 | 250 | 3600 | 500 | 2.98 | 180.7 | 84.1 | 122.1 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
| 13 | 4.2 | 210 | 230 | 250 | 3600 | 500 | 3.04 | 184.7 | 84.1 | 122.1 | PJ0 | NC2 | Ø25.4 | NPT1/2 | |
