High-Low Pumps
Request a Quote
Technical Information
- Displacement: 0.8~8cm³/rev.
- Rotation direction: clockwise (D), counter-clockwise(S)
- Min. speed: 1000r/min
- Max. speed: 3500r/min
- Peak pressure: 250bar
High-Low Pump, Group 1G/1G Technical Parameter
Displacement | Displacement | Overflow pressure | Max. continuous pressure | Max. intermittent pressure | Max. peak pressure | Min. speed | Max. speed | Volumetric efficiency |
V | V | P | P1 | P2 | P3 | nmin | nmax | ηv |
cm³/rev. | cm³/rev. | bar | r/min | % | ||||
0.8 | 3.7 | 35...55 | 210 | 230 | 250 | 1000 | 3500 | ≥93 |
1.1 | 3.7 | |||||||
1.6 | 3.7 | |||||||
1.8 | 4.2 | |||||||
2.1 | 4.2 | |||||||
2.1 | 4.8 | |||||||
2.7 | 4.8 | |||||||
2.7 | 5.8 | |||||||
3.2 | 5.8 | |||||||
2.1 | 7 | |||||||
2.7 | 7 | |||||||
3.2 | 7 | |||||||
2.7 | 8 | |||||||
3.2 | 8 |

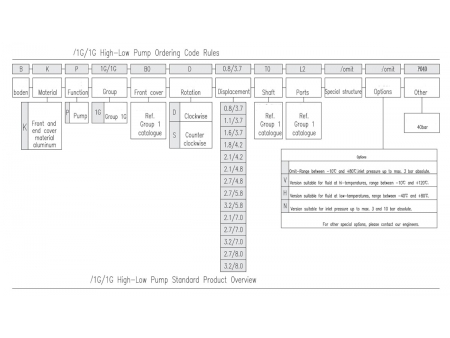

1G/1G High-Low Pump Ordering Code Rules

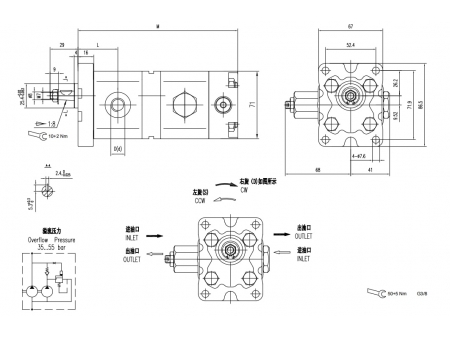

1G/1G High-Low Pump Standard Product Dimensions
Displacement | Max. pressure | Overflow pressure | Max. speed | Min. speed | Dimensions | Oil port code | Inlet | Outlet | ||||
High | P1 | P2 | P3 | P | L | M | D | d | ||||
(cm³/rev.) | (cm³/rev.) | bar | bar | bar | bar | (r/min) | (r/min) | mm | mm | |||
0.8 | 3.7 | 210 | 230 | 250 | 40…45 | 3500 | 1000 | 33.8 | 146.7 | L3 | G3/8 | G3/8 |
1.1 | 3.7 | 210 | 230 | 250 | 3500 | 1000 | 34 | 147.2 | L3 | G3/8 | G3/8 | |
1.6 | 3.7 | 210 | 230 | 250 | 3500 | 1000 | 35 | 149.2 | L3 | G3/8 | G3/8 | |
1.8 | 4.2 | 210 | 230 | 250 | 3500 | 1000 | 35.5 | 152.2 | L3 | G3/8 | G3/8 | |
2.1 | 4.2 | 210 | 230 | 250 | 3500 | 1000 | 36 | 153.2 | L3 | G3/8 | G3/8 | |
2.1 | 4.8 | 210 | 230 | 250 | 3500 | 1000 | 36 | 155.2 | L3 | G3/8 | G3/8 | |
2.7 | 4.8 | 210 | 230 | 250 | 3500 | 1000 | 37 | 157.2 | L3 | G3/8 | G3/8 | |
2.7 | 5.8 | 210 | 230 | 250 | 3500 | 1000 | 37 | 161.2 | L3 | G3/8 | G3/8 | |
3.2 | 5.8 | 210 | 230 | 250 | 3500 | 1000 | 38 | 163.2 | L3 | G3/8 | G3/8 | |
2.1 | 7.0 | 210 | 230 | 250 | 3500 | 1000 | 36 | 163.2 | L3 | G3/8 | G3/8 | |
2.7 | 7.0 | 210 | 230 | 250 | 3500 | 1000 | 37 | 165.2 | L3 | G3/8 | G3/8 | |
3.2 | 7.0 | 210 | 230 | 250 | 3500 | 1000 | 38 | 167.2 | L3 | G3/8 | G3/8 | |
2.7 | 8.0 | 210 | 230 | 250 | 3500 | 1000 | 37 | 169.2 | L3 | G3/8 | G3/8 | |
3.2 | 8.0 | 210 | 230 | 250 | 3500 | 1000 | 38 | 171.2 | L3 | G3/8 | G3/8 |
