Request a Quote

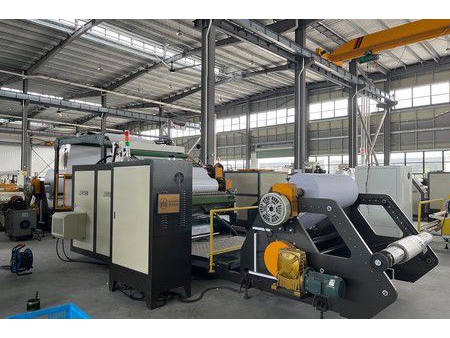

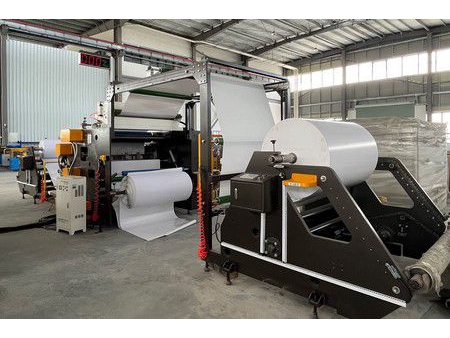

Hot melt coating and laminating machine

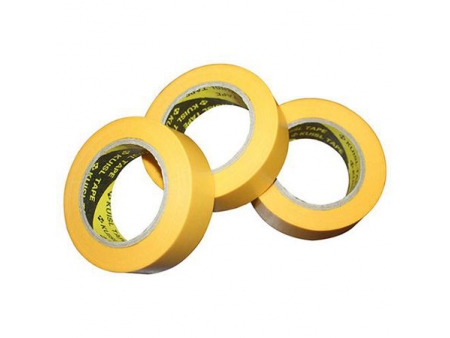

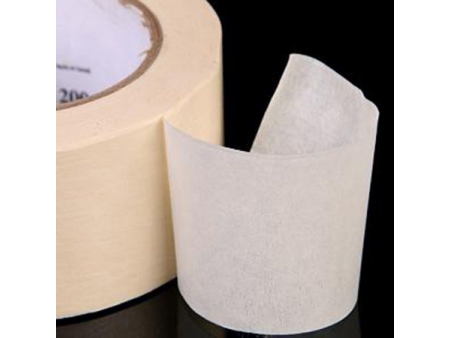

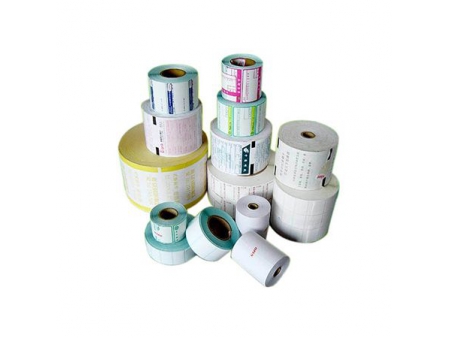

Our high-speed scratch-resistant hot melt adhesive coater employs a high-precision, wear-resistant alloy applicator head, ensuring optimal results during high-speed coating. With PLC touchscreen automatic centralized control system, single-person operation is achieved. Suitable for handling transparent label materials, self-adhesive label paper, adhesive tapes, advertising and photographic materials, etc.

Specifications
Coating Width 300-2000mm
Coating Weight 10-200g/m²
Coating Speed 50-150m/min
Unwind Diameter 500mm
Rewind Diameter 500mm
Web Guide System 2sets
Length 7000mm
Height 1600mm
Power 38-60kW
Power Supply 380v±15% 50Hz

Parameters can be adjusted according to specific customer requirements.

Features
  • PLC touchscreen automatic centralized control system, realizing single-person operation.
  • Pneumatic feeding device ensures easy material connection and flat joining position, enabling non-stop operation.
  • Neat and flat material winding is ensured with automatic constant tension control system complemented by center-surface rolling technique.
  • Multi-layer filtration technology is employed in the filters, enhancing the aesthetic effect of adhesive application.
  • High-precision, wear-resistant alloy steel applicator head ensures optimal coating results during high-speed applicating.
