High Voltage Heat Shrink Cable Terminations up to 42kV
Request a Quote
35kV heat shrinkable cable terminals are made of EDPM, which, compared to other EVA materials, has a better heat and aging resistance, allowing it to be used in a variety of harsh environmental conditions. It is applicable to any cable with a voltage range of 26kV-42kV.

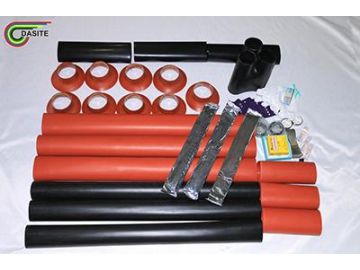

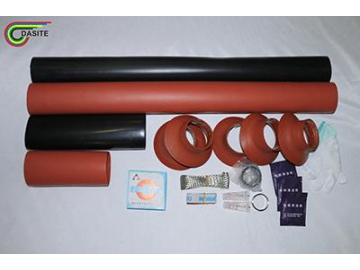

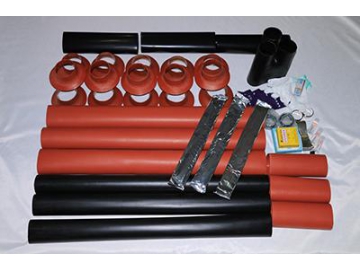

Due to the different inner cable structures, we offer one core and three core heat shrink terminations. According to different requirements, we also offer heat shrink terminations for use in indoor or outdoor applications.
Optional type
1-core indoor heat shrinkable terminal| Type and specification | Cross sectional area of applicable cable (mm2) |
| NSY-35/1.1 | 50-120 |
| NSY -35/1.2 | 150-240 |
| NSY -35/1.3 | 300-500 |
| Type and specification | Cross sectional area of applicable cable (mm2) |
| WSY-35/1.1 | 50-120 |
| WSY -35/1.2 | 150-240 |
| WSY -35/1.3 | 300-500 |
| Type and specification | Cross sectional area of applicable cable (mm2) |
| NSY -20/3.1 | 50-120 |
| NSY -20/3.2 | 150-240 |
| NSY -20/3.3 | 300-500 |
| Type and specification | Cross sectional area of applicable cable (mm2) |
| WSY -20/3.1 | 50-120 |
| WSY -20/3.2 | 150-240 |
| WSY -20/3.3 | 300-500 |
| Item | Test condition |
| West state power frequency withstand voltage test(external) | 104kv,1min |
| Dry power frequency withstand voltage test(inside) | 117kv,5min |
| Impact withstand voltage test | 250kv1.2/50us 10 times |
| Partial discharge test | ≤10pc(1.73u) |
