Pneumatic Actuated Butterfly Valve, KV402
Request a Quote

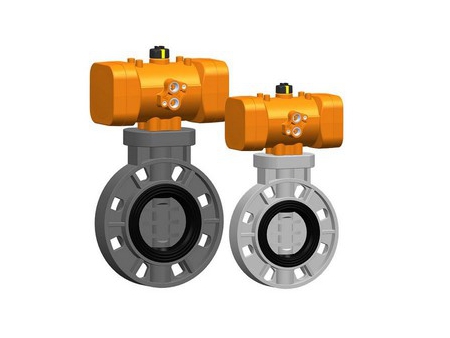

Plastic Butterfly Valve with Pneumatic Actuator
KV402 pneumatic actuated butterfly valve is an economic choice for environmental industry which can deliver signal feedback, auto power-off reset, failure alarm functions and more. This series of butterfly valves of some sizes can be configured with full plastic actuator.
Specifications
-
- Size
- DN 50/65/80/100/125/150/200
-
- Pressure Level
- PN 10/8
-
- Body Material
- PVC-U, PP-H
-
- Seal
- EPDM, FPM
-
- Connection
- flange
-
- Standard
- ISO 5211 standard
Features
Easy installation and maintenance
- ISO mounting holes standard for easy mounting
- Switch direction indication on the handwheel
- ISO 5211 standard design for simple maintenance
- Interchangeable manual and auto modules for easy upgrade
- Plastic or aluminum actuator with compact design
Outstanding safety
- Stainless steel valve shaft with corrosion and deformation resistance
- Double seals in valve seat leads to lower stem torque and no leakages
- A wide range of materials and seals are optional to meet most media applications
- Actuator designed with over torque protection to ensure safety
Excellent flexibility in configuration
- Actuator: NC (normally closed), NO (normally open), DA (direct acting)
- Valve body: PVC-U, PP-H
- Seal: EPDM, FPM
- Connection: flange
- Connection standard: metric, US, JP
- Signal feedback function is optional upon request
Application
- Environmental industry
- Water treatment
- Electroplate
- Integrated circuit
- Renewable energy
- Landfill leachate treatment
