Electric Actuated Butterfly Valve
Request a Quote
Electric actuated butterfly valve is a kind of self-control valve that uses power to open and close the butterfly valve, driving the valve disc to do 0-90 degree rotary movement through the power signal.
Applications
As an automatic industrial valve, electric actuated butterfly valve is widely used in water conveyance system of the food processing industry, piping system of the light industry, petroleum transmission systems, corrosion-resistant piping system of chemical industry, water treatment system of paper industry, and industrial process automation fluid control systems in industries such as power and water treatment.

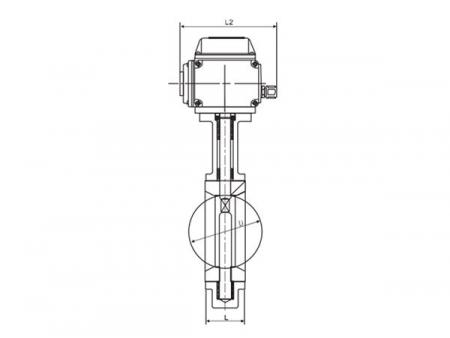

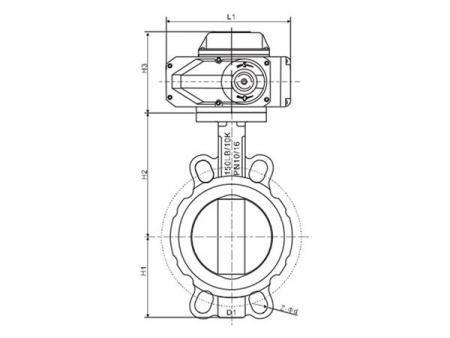

Dimensions (unit: mm)
DN (mm) | L | L1 | L2 | D | PN1.0 | PN1.6 | 150Lb | 10K | D3 | H1 | H2 | H3 | ||||
D1 | Z-Ød | D1 | Z- Ød | D1 | Z- Ød | D1 | Z- Ød | Flange No. | ||||||||
50 | 42 | 164 | 136 | 52.9 | 125 | 4-19 | 125 | 4-23 | 120.6 | 4-19 | 120 | 4-19 | F05 | 73 | 125 | 180 |
65 | 44.7 | 164 | 136 | 64.5 | 145 | 4-19 | 145 | 4-23 | 139.7 | 4-19 | 140 | 4-19 | F05 | 82 | 136 | 180 |
80 | 45.2 | 164 | 136 | 78.8 | 160 | 8-19 | 160 | 8-20 | 152.4 | 4-19 | 150 | 8-19 | F05 | 91 | 142 | 180 |
100 | 52.1 | 210 | 156 | 104 | 180 | 8-19 | 180 | 4-23 | 190.5 | 8-19 | 175 | 8-19 | F07 | 104 | 163 | 190 |
125 | 54.4 | 210 | 156 | 123.3 | 210 | 8-19 | 210 | 4-23 | 215.9 | 8-22 | 210 | 8-23 | F07 | 127 | 176 | 190 |
150 | 55.8 | 210 | 156 | 155.6 | 240 | 8-23 | 240 | 4-25 | 241.3 | 8-22 | 240 | 8-23 | F07 | 138 | 197 | 190 |
200 | 60.6 | 256 | 179 | 202.5 | 295 | 8-23 | 295 | 4-25 | 298.5 | 8-22 | 290 | 12-23 | F10 | 170 | 230 | 210 |
250 | 65.6 | 256 | 179 | 250.5 | 350 | 12-23 | 355 | 4-28 | 362 | 12-25 | 355 | 12-25 | F10 | 204 | 261 | 210 |
300 | 77 | 256 | 179 | 301.6 | 400 | 12-23 | 410 | 4-28 | 432 | 12-25 | 400 | 16-25 | F10/12 | 241 | 294 | 210 |
350 | 76.5 | 256 | 179 | 333.3 | 460 | 16-23 | 470 | 4-30 | 476 | 12-29 | 445 | 16-25 | F10/12 | 263 | 335 | 210 |
400 | 86.5 | 280 | 179 | 389.6 | 515 | 16-28 | 525 | 4-30 | 540 | 16-29 | 510 | 16-27 | F14/16 | 309 | 400 | 290 |
450 | 105.6 | 280 | 179 | 440.5 | 565 | 20-28 | 585 | 4-30 | 578 | 16-32 | 565 | 20-27 | F14/16 | 328 | 420 | 290 |
500 | 132 | 280 | 179 | 491.6 | 620 | 20-28 | 650 | 4-33 | 635 | 20-32 | 620 | 20-27 | F14/16 | 361 | 480 | 290 |
600 | 152 | 280 | 179 | 592.5 | 725 | 20-31 | 770 | 4-36 | 749.5 | 20-35 | 730 | 24-32 | F16 | 459 | 560 | 290 |
700 | 163 | 695 | 840 | 24-31 | 840 | 24-36 | 864 | 28-35 | 840 | 24-33 | F25 | 520 | 624 | |||
800 | 188 | 794.7 | 950 | 24-34 | 950 | 24-39 | 978 | 28-41 | 950 | 28-33 | F25 | 590 | 680 | |||
900 | 203 | 864.7 | 1050 | 28-34 | 1050 | 28-39 | 1086 | 32-41 | 1050 | 28-33 | F25 | 656 | 720 | |||
1000 | 216 | 965 | 1160 | 28-37 | 1170 | 28-42 | 1200 | 36-41 | 1160 | 28-39 | F25 | 720 | 800 | |||
1200 | 276 | 1158 | 1380 | 32-40 | 1390 | 28-49 | 1422 | 44-41 | 1380 | 32-39 | F30 | 844 | 941 |
Note: If you need other sizes and materials of butterfly valves, please
The electric butterfly valve consists of an electric actuator and a butterfly valve, with the advantages of convenient operation and a simple structure common to sanitary butterfly valves. It can also be widely used in industries such as chemicals and pharmaceuticals.
Our electric actuated butterfly valves mainly include flanged butterfly valves and wafer type butterfly valves according to the connection method.
The sealing forms mainly include soft seat valves and hard seat valves. Depending on different functional requirements, they can be categorized as switch-type electric actuated butterfly valves and intelligent regulation-type electric actuated butterfly valves.
The sealing forms mainly include soft seat valves and hard seat valves. Depending on different functional requirements, they can be categorized as switch-type electric actuated butterfly valves and intelligent regulation-type electric actuated butterfly valves.
Our company is a professional stainless steel precision casting foundry that has a large stock of general valves, and we also provide a variety of customized products according to the purchaser's drawings and materials.
From 2003 to now, we have more than twenty years of production experience.
As a professional stainless steel casting foundry, we offer precision investment casting, sand casting, and machining services for various industry sectors, in addition to the field of flow control valves.
