Request a Quote

With a diverse range of scaffolding accessories available, we offer scaffolding frame solutions adapted to your construction and maintenance projects

Scaffold Frame System

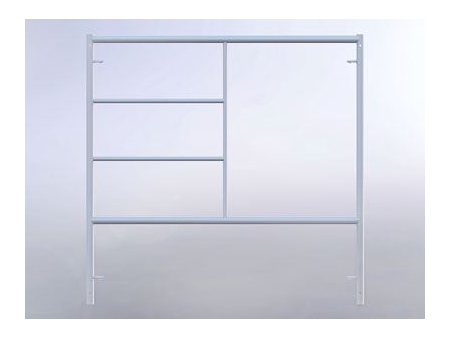

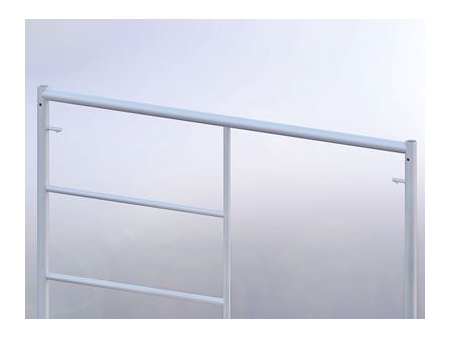

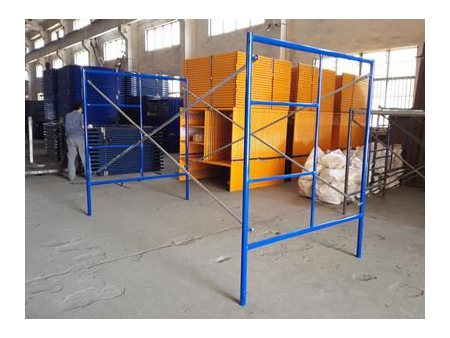

The scaffolding mason frame with drop lock features quick and simple assembly, optimal load bearing capacity, and a high safety factor. This half-ladder frame structure is extremely stable and it can be used as a ladder to allow access to the upper platform. The mason frame is hot-dipped galvanized or powder coated.

Parameters
Item No Description Weight (Kgs) Weight (LBS) Package Unit (Pcs)
MF4202D 42"x2' Mason Frame with Drop Lock 8.54 18.8 1000
MF4203D 42"x3' Mason Frame with Drop Lock 11.17 24.6 1000
MF0502D 5'x2' Mason Frame with Drop Lock 10.65 23.45 1000
MF0503D 5'x3' Mason Frame with Drop Lock 12.3 27.1 1000
MF0504D 5'x4' Mason Frame with Drop Lock 14.96 32.95 1000
MF0505D 5'x5' Mason Frame with Drop Lock 16.66 36.7 1000
MF0564D 5'x6'4" Mason Frame with Drop Lock 19.89 43.8 1000
