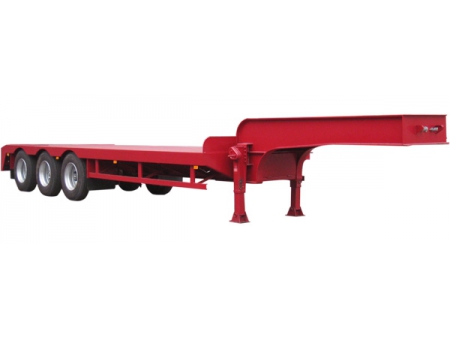

30T-60T Drop Deck Flatbed Trailer
Description:
The 30t-60t drop deck flatbed trailer is designed to be light weight, and is made entirely of a high strength steel. With its light weight of only 2 to 3 tons, and high strength, it is often a better choice when compared to traditional drop deck flatbed trailers made of other materials. Upon customer request, our drop deck flatbed trailer can be customized to meet required specifications.
| Weight: | ||
| Tare Weight | 5900kg--6820kg | |
| Loading Capacity | 30T--60T | |
| Axle Weight Load | 13T/16T | |
| Specifications: | ||
| Axle number | Three | |
| Axle specs. | FUWA or BPW Brand | |
| Suspension | Common mechanical | |
| Wheel | 11.00R20/12.00R20 Vacuum tire /Triangle or Double Cone Brand | |
| King Pin | JOST 2.0''# or 3.5'# traction pin | |
| Dimensions (LxWxH) (mm) | 12450×2500×1490 13000 x 2490 x 1450/1575/2770 14850 x 2480 x 1770 | |
| Support legs | 28Tons (Tongyada Brand)/Jost D200T | |
| Rim | 8.25-20/8.5-20 x 20Vacuum tire China Brand | |
| Wheelbase | 7180/6680/6260 1310 1310mm | |
| Steel Spring | 10/10/10 pieces per axle | |
| Tire: | ||
| Number of Tires | can be freely chosen | |
| Spare Tire Carriers | 1 pieces | |
| Frame: (specs. and materials) | ||
Main beam | The height of the beam is 500mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm. | |
| Platform plate | 3mm diamond plate | |
| Brake: | ||
| Brake | Kemi Brand of China | |
| Brake Chamber | Four double and two single chamber( TKL brand) | |
| ABS system | without | |
| Electrical: | ||
| Voltage | 24V | |
| Receptacle | 7 ways (7 wire harness) | |
Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the 30T to 60T drop deck flatbed trailer , we offer a wide range of aluminum alloy fuel tank trailer, 3 axle trailer, flatbed trailer, cargo semi-trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality flatbed semi-trailers and other special transport vehicles with custom solutions.
