Seamless Steel Pipe & Hydraulic Hose Assembly

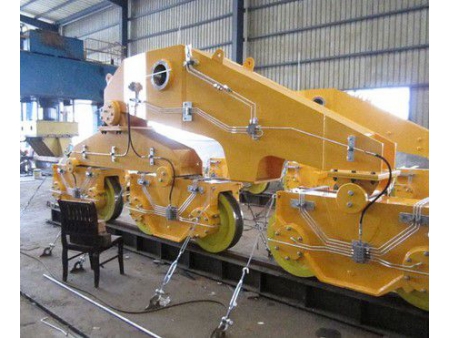

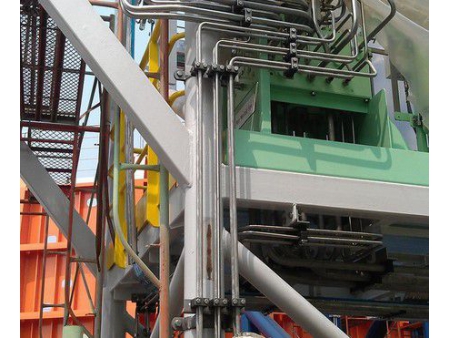

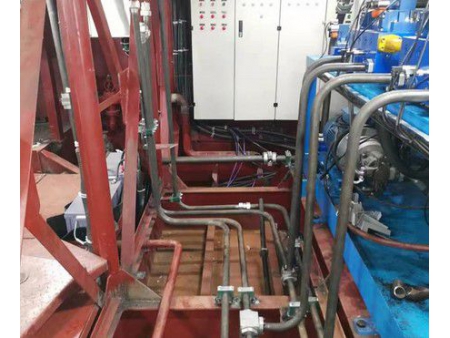

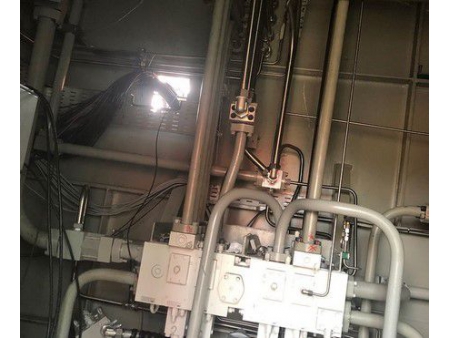

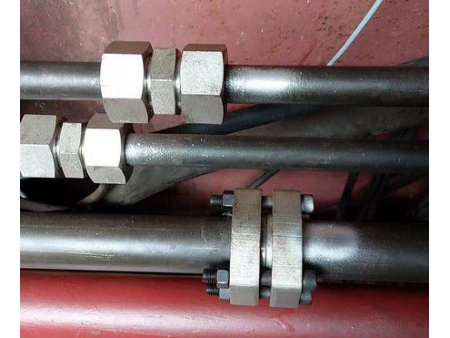

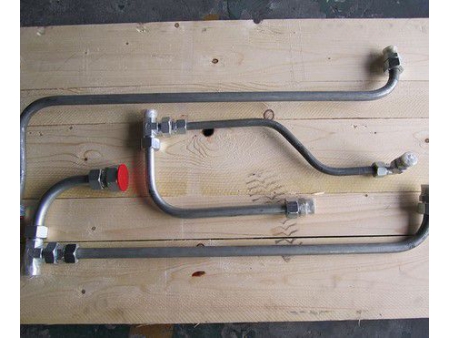

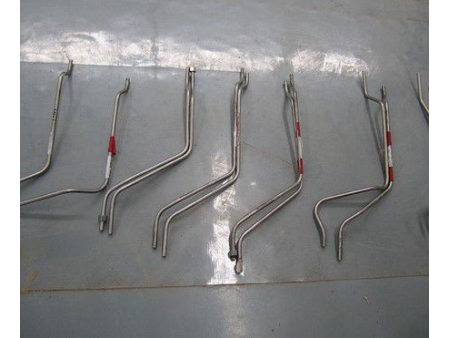

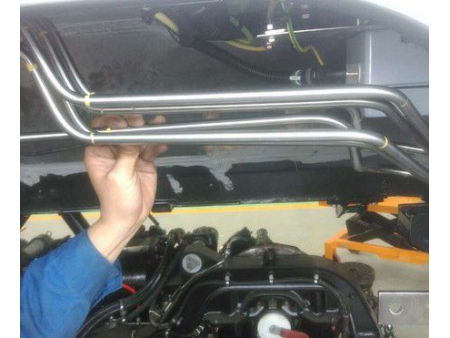

The bent seamless steel pipe body is provided with a plurality of clamp components, each consisting of two U-shaped clamps for holding pipes. The two U-shaped package pipe clamps are clamped and fixed on the pipe body of the bent pipe through bolts and nuts. And two adjacent package pipe clamp components are connected and set through a connecting rod that can support the bent pipe when the pipe body is extruded from the outside. Under the condition that the bent pipe is tensioned, the connecting rod increases the tensile property of the bent pipe due to its positioning function. The connecting rod makes the bent pipe more tensile and compressive, ensuring the accurate connection of the hydraulic seamless steel pipe.
- DIN2391 bright/phosphated precision seamless steel pipe
- GB/T3639-09 phosphated precision seamless steel pipe
- GB/T5312-09 seamless steel pipe for shipbuilding
- GB/T8163-08 seamless steel pipe
- ASTMA53-07 seamless steel pipe
- ASTMA269-08 stainless steel seamless pipe
- GB/T14976-02 stainless steel seamless pipe
- Connection forms: ferrule, flaring, welding, clamping
- If needed, the steel pipes can be provided with ABS, BVCCS, DNV, or other forms or product ship inspection certificates.

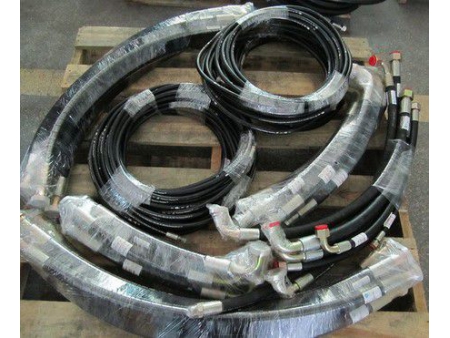

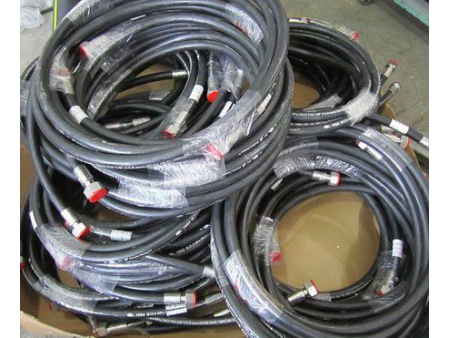

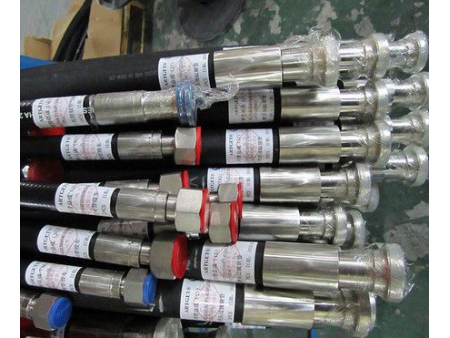

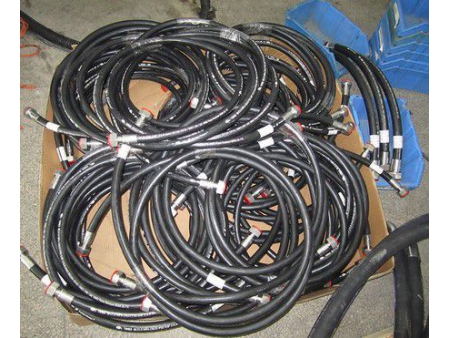

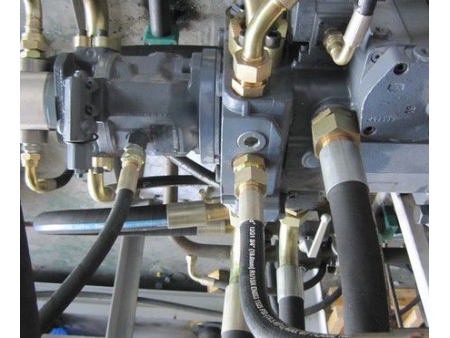

The rubber hydraulic hoses are usually made of 4 layers: a liquid-resistant inner rubber layer that bears pressure for the medium and protects the steel wire from being eroded; a middle rubber layer; 2, 4, or 6 layers of steel wire as a framework material of reinforcement; and an exterior rubber layer protects the steel wire from being damaged.

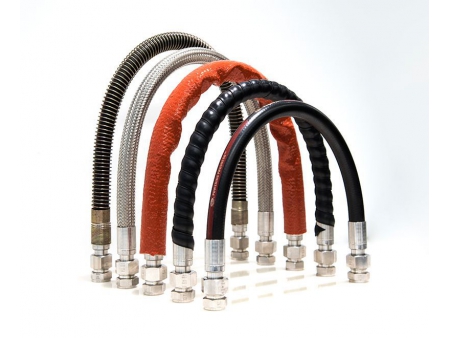

- High-pressure hose: steel wire braided hose, steel stripwound hose
- Industrial hose: air hose, oil suction hose, drain hose, nylon hose, fiber/steel wire braided resin hose, high temperature steam hose

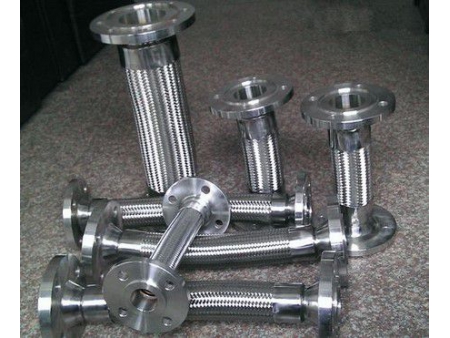

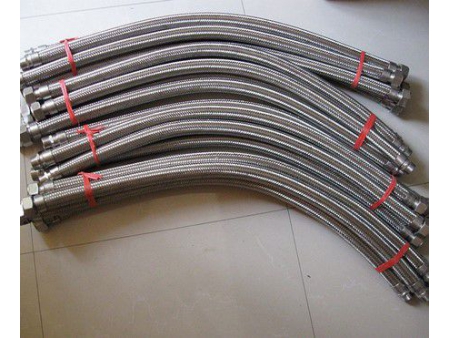

- Special hose: Teflon hose (PTFE hose), ultra-high pressure hose, jack hose, stainless steel metal bellows
