Hydraulic Power Unit
Medium pressure power units come in three varieties: the compact power unit, mini power unit, and modular power unit.
The electro-hydraulic immersion motor compact power unit is ideal for minimal installation space and intermittent duty cycles.
The compact mini hydraulic power unit is perfect for both mobile machinery and stationary systems.
The mini hydraulic power unit has a CETOP valve connection that allows for horizontal circuits.
The single-pump modular power units are great for industrial automation applications with their standardized modules which offer flexibility across various industries such as machine tools, food production, textiles, and energy technology.

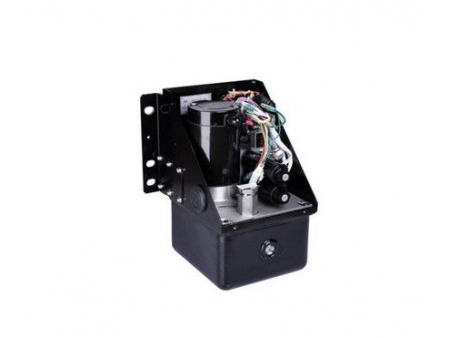

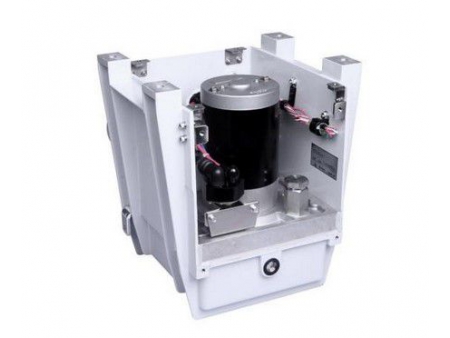

Type | Working Pressure | Relief pressure | Working Flow | Rated Voltage | Motor Power |
DU-283A | 8.8±0.5 MPa | 15.68±2 MPa | 6.0±1 L/min | DC 24V | 2.0kW |
DU-284A | 8.8±0.5 MPa | 15.68±2 MPa | 4.5±1 L/min | DC 24V | 1.7kW |
UW-001 | 8.8±0.5 MPa | 13.7±1.02 MPa | 4.5±0.5 L/min | DC 24V | 1.7kW |

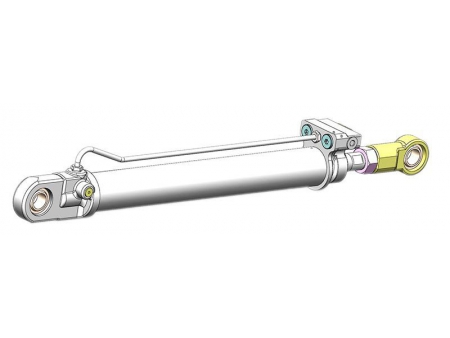

A hydraulic cylinder is a type of hydraulic actuator that converts hydraulic energy into mechanical energy by linear mechanical or rotational motion. It has a simple structure and is reliable when used. As it eliminates the need for deceleration devices, there's no transmission clearance and its motion remains stable; thus, it's widely implemented in various mechanical-hydraulic systems. The output force of the cylinder corresponds to the effective area of the piston and pressure difference between both sides of said piston. Composed mainly by a cylinder barrel, cover, piston rod, seal as well as buffer and exhaust mechanisms (which are application specific), it offers an efficient solution for many purposes.
Type | Max. working pressure | Cushion Distance/Speed | Inner Diameter | Piston Diameter | Working Distance |
DU-283A | 17.6 MPa | 21 mm/14~10mm/sec | Ø50 mm | Ø25 mm | 300 2mm |
DU-284A | 17.6 MPa | 21 mm/14~10mm/sec | Ø50 mm | Ø25 mm | 300 2mm |
