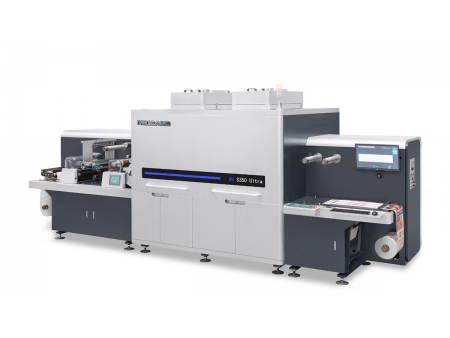

Digital Printing Machine, WG S350 Ultra

Request a Quote

Website: http://weigangmachinery.com/3-4-digital-printing-machine.html

Ink tank capacity 5L/color
Resolution 1200×1200 DPI
Printing speed Up to 75 m/min (at 1200×1200 DPI)
Max. print width 310 mm

Features

Flexible & Efficient PrintingThe digital printing machine offers fully customizable color configurations with scalable enhancement options, delivering high productivity at speeds of up to 75 m/min. Its wide 310 mm print width further broadens application possibilities, combining efficiency, versatility, and flexibility in one solution.

Stable & Reliable PerformanceThe digital printing machine is equipped with durable inkjet printheads that ensure consistent print quality, enabling reliable, continuous production around the clock.

Easy Operation & Smart MaintenanceWith integrated software for rapid job intake, short-run customization, and quick prototyping, the system streamlines workflows from start to finish. Its intuitive interface ensures fast, hassle-free operation, while automated cleaning, moisturizing, and printhead anti-collision functions simplify maintenance. A compact footprint further saves valuable floor space, making it adaptable to a wide range of production environments.

Consistent Print ClarityThe printing process produces precise images in just one step without the need for plate making, while1200 × 1200 DPI resolution ensures sharp details and vibrant, full-color output.

Details

Web-guider

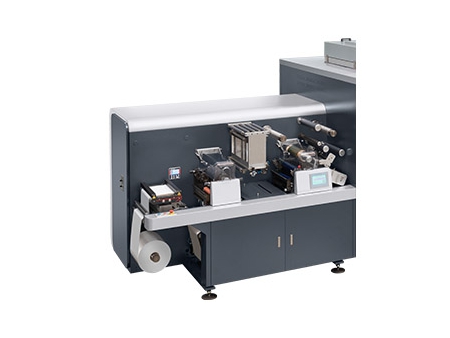

Digital cold stamping system with flexo printing unit
Delam/Relam Flexo printing with cold stamping
Control area
UV inkjet printing unit

Technical Specifications

Model	NG S350 Ultra
Print control
Inkjet printhead	Piezoelectric inkjet, grayscale printing
Resolution	1200x1200DPI
Printing speed	75m/min(1200x1200DPI)
Printing data	Fix data, variable data
Printhead model	Kyocera KJ4A-1200RC
Ink
Ink type	UV curable ink
Printing color	CMYK White, Varnish, Spot colors (optional)
Ink tank capacity	5 L per color
Substrate system
Unwinder/rewinder	Servo control system, tension detector, web break protection, roll diameter detector, etc.
Max unwinding/rewinding diameter	700mm
Substrate thickness	0.04-0.35mm
Max. printing width	310mm
Web cleaner	Dual-sided contacted cleaning system
Static eliminator	Anti-static bar
Max.web width	350mm
Drying system
LED dryer	Inline LED dryer after each color
Final curing	Mercury UV lamp for complete curing
Cleaning system
Automatic cleaning system	Integrated cleaning unit
Data transfer
Data interface	10 Gigabit Ethernet (XFP)
User interface	Touchscreen control panel
Dimensions
Dimensions (L×W×H）	5900 × 2200 × 2100 mm
Installation
Operating environment	Temperature 25–30 °C; Humidity 50–65%
Power supply	380V, 3-phase (Main unit: 25 kW, UV/LED curing: 20 kW)
Air supply	0.6 MPa
