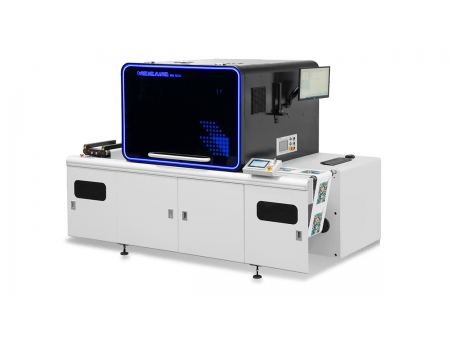

Digital Printing Machine, WG S230
Request a Quote
- Ink tank 5L/color
- Max print width 230mm
- Max web width 360mm
- Air supply 0.6MPa
Features
- The digital printing machine offers flexible color combinations, allowing for any combination of colors and enhanced effect.
- The printing speed can reach up to 60m/min, balancing high efficiency and flexible operation schemes.
- The printing width reaches 230mm, expanding the application range for customers and increasing flexibility.
- Utilizing a single-pass solution and non-contact printing, the printing machine allows for one-step printing without the need for plate-making.
- The highest printing accuracy can reach 1200*600dpi, with optional precision modes of 900*600 dpi and 600*600dpi, resulting in dedicate print with vivid color.
- High-integration software enables quick order acceptance, small-batch customization, and sample printing functions.
- The user interface is simple and easy to understand and operate.
- Digital printing machine offers automatic cleaning, moisturizing, and anti-collision printhead, facilitating equipment maintenance.
- The digital printer is compact and occupies minimal space, making it suitable for various applications.
- Digital printer is equipped with a high-precision piezo print head, ensuring long-term durability.
- The digital printer offers consistent print quality, supporting round-the-clock production.
Details

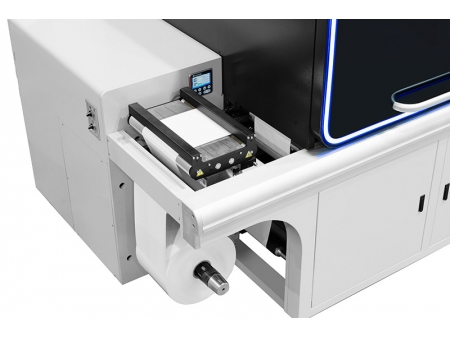

- Unwinder
- Web cleaner
- 4 Printing units (expandable)
- Rewinder
Technical Specifications
| Model | WG S230 |
| Print control | |
| Inkjet head | Piezo print head, greyscale level |
| Print Resolution | 600*600dpi/900*600dpi/1200*600dpi |
| Printing speed | High resolution mode (1200*600dpi): 30m/min |
| Normal mode (900*600dpi): 45m/min | |
| Single bit mode (600*600dpi): 60m/min | |
| Print data | Fix data, variable data (optional) |
| Print head model | EPSON S3200 U1/U3 |
| Ink | |
| Ink type | UV ink |
| Ink color | CMYK, white, varnish and pantone (optional) |
| Ink tank | 5L/color |
| Substrate system | |
| Unwinder/rewinder | Servo control, tension detector, web break protect, roll dia. detector, etc. |
| Max unwinder/rewinder diameter | 600mm |
| Substate thickness (digital) | 0.04-0.35mm |
| Max print width | 230mm(option350mm) |
| Web cleaner | Double side contacted type |
| Static eliminator | Static eliminator bar |
| Max web width | 360mm |
| Drying system | |
| LED dryer | 2 color one-curing LED drying system |
| Complete curing | UV dryer in the end |
| Cleaning system | |
| Cleaning unit | Auto cleaning system |
| Data transfer | |
| Connector | 10 Gigabit Ethernet transmission XFP |
| Control panel | Visualized simplified UI interface with touch screen |
| Specification | |
| Dimensions | 2560*1700*1950mm |
| Floor space | 4.5㎡ |
| Installation conditions | |
| Surroundings | Temperature: 20-30degree, humidity:20-50% |
| Power supply | 380V 3P (machine: 8kW, LED/UV for inkjet: 9kW) |
| Air supply | 0.6MPa |
