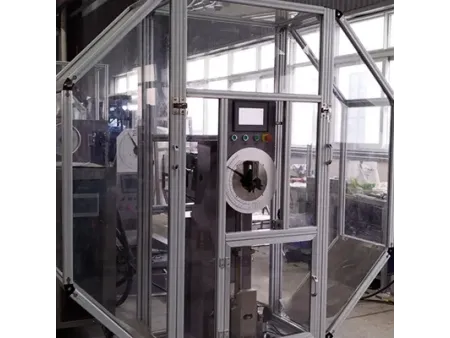

Pendulum Impact Testing Machine for Metals, Charpy/Izod Impact Test
Request a Quote
PIT-G Series (150J-450J)
The pendulum impact testing machine is engineered for evaluating the impact resistance of metallic materials under dynamic loading conditions. It supports both Charpy and Izod impact testing, making it suitable for quality control, education, and research applications.
Standards
ISO 148, EN10045, ASTM E23, GB/T 229, GB/T 12778, GOST 9454
Testing methods
Charpy impact test, Izod impact test
Features
- Multi-angle testing
The pendulum can be accurately positioned at any point, enabling a broad range of impact angles and energy levels. This versatility is especially valuable for R&D environments. - Dual Test Capability
Charpy & Izod: The machine supports both Charpy and Izod impact testing without requiring complex reconfiguration. Optional pneumatically integrated Charpy anvil and Izod vice allow fast switching between test methods without replacing fixtures - Software control operation (optional)
With the optional PC-based control package, the operator only needs to load the specimen, while all remaining functions are handled through software commands automatically. - Instrumented impact package (optional)
Supports real-time force and velocity acquisition, automatically generating full impact curves for advanced analysis. - Low-temperature system (optional)
Conditioning down to -180°C supports Charpy testing of materials requiring low-temperature toughness evaluation.
Specifications
| Model | PIT452G | |
| Maximum impact energy | 450J (300J, 150J) | |
| Angle resolution | 0.025° | |
| Distance from the axis of support to the center of percussion | 750mm | |
| Velocity of striking | 1.40~5.24m/s | |
| Angle of striking | 30°~150°, adjustable | |
| Pendulum moment | 150J | 80.8348N•m |
| 300J | 160.7695N•m | |
| 450J | 241.15 N•m | |
| Charpy anvil | Span | 40mm |
| Radius of curvature of supports | 1mm | |
| Angle of taper of supports | 11°±1° | |
| Charpy striking knife | Radius of striking edge | 2mm(R2) or 8mm(R8) |
| Angle of striking tip | 30° | |
| Thickness of striker | 16mm | |
| Izod Striking knife | Radius of striking edge | 0.8±0.2 |
| Angle of striking tip | 75±1° | |
| Dimension (with protection shield) AxBxC | 1960x680x2000mm | |
| Weight | 800kg | |
| Electric supply | 220V±10%, 50Hz, single-phase | |
| Power consumption | 800W | |
