Electromagnetic brake for maximum safety

A high-responsiveness electromagnetic brake halts the pendulum immediately during power interruptions or emergency situations, greatly enhancing operational safety during testing.

Adjustable impact angle

The impact arm can be set anywhere between 30° and 150°, offering broad flexibility to meet diverse test standards and research requirements.

The separate, fully enclosed aluminum safety shield

Easy to remove for maintenance, while the glass viewing window provides clear visibility of the test process. A lower metal mesh layer prevents fractured specimen fragments from ejecting, ensuring the highest level of operator protection.

Fast Specimen Alignment

A pneumatic centering mechanism enables rapid and precise specimen positioning, which is especially valuable in low-temperature applications where minimizing heat loss is crucial.

A safety pin can lock the pendulum securely during maintenance, providing a high level of protection and ensuring safe servicing operations.

Software control operation (optional)

With the optional PC-based control package, the operator only needs to load the specimen, while all remaining functions are handled through software commands automatically.

Instrumented impact package (optional)

Supports real-time force and velocity acquisition, automatically generating full impact curves for advanced analysis.

Fully automated operation (optional)

Combining the automated specimen-feeding system with the software suite allows the impact testing machine to operate in fully automated workflow.

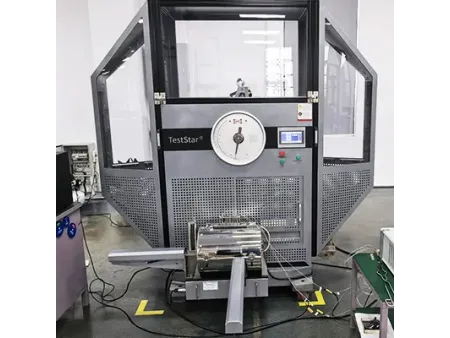

Low-temperature system (optional)

Conditioning down to -180°C supports Charpy testing of materials requiring low-temperature toughness evaluation.
