Prefabricated One-piece Outdoor Termination, 72.5kV-145kV Manufacturer

Prefabricated One-piece Outdoor Termination, 72.5kV-145kV

Request a Quote

View All: http://woercableaccessories.com/5-1-2-prefabricated-one-piece-outdoor-termination.html

Scope of Application

Model: WYJZWG4

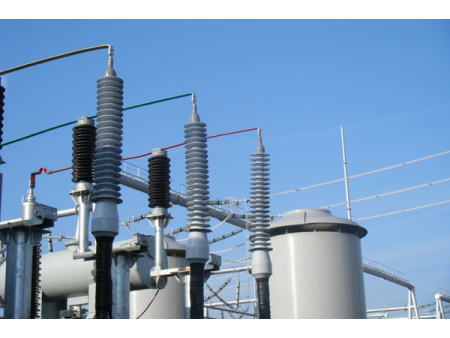

Suitable for outdoor environment with pollution class of IV
Rated voltage: 72.5kV (applicable to 120-1600mm²)
126kV (applicable to 240-1600mm²)
145kV (applicable to 240-1600mm²)

Download

Features

Made with seamless one-piece termination body, greatly increasing the mechanical and electrical performance of the termination surface;
Easy to install and only one-eighth to one-tenth of the weight of porcelain terminations of the same voltage;
Good explosion-proof property, efficiently avoiding the risk of work accidents;
Dry structure avoids any leakage;
Flexibility in terms of position and orientation during installation; Fit for inclined installation and inverted installation;
Properties of weatherability, anti-electric tracking, electrochemical erosion resistance, water repellency, and anti-pollution flashover, providing stable and safe performance in extreme weather conditions and highly-polluted areas;
Test standard of IEC 60840 and GB/T 11017;

Cable Lug Specifications

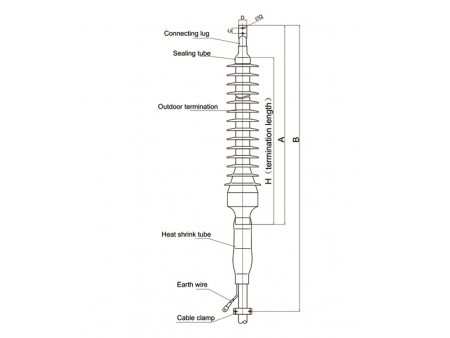

Termination Dimensions

Notice When Ordering:

Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
Welcome to contact our sales manager for any special requirements before placing your order.
