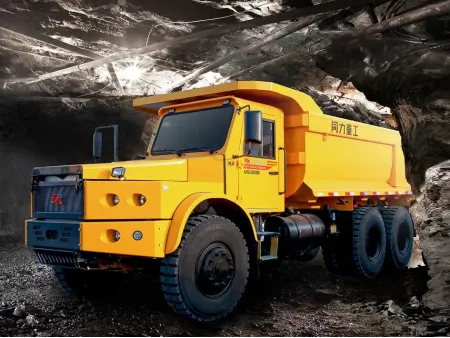

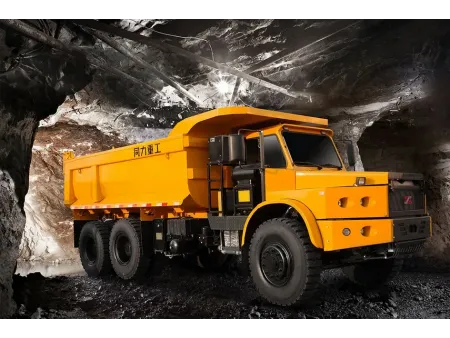

Underground Dump Truck, FK8-16T

Underground Dump Truck, FK8-16T
Underground Dump Truck, FK8-16T
Request a Quote
Technical Specification
  • Engine model: Yuchai (160 HP)
  • Gearbox model: 10JS90 gearbox
  • Axle model:
    front axle 153 (10 holes)
    rear axle 153 (10 holes)
  • Dump box size (L×W×H): 4×2.2×0.8m
  • Dump box steel plate: bottom 10 side 8
  • Tire model: 900-20 wire tire for mine service
  • Frame model: 24 8 8 riveting frame
  • Spring plate model: front 12, rear 10 8 90mm×16mm
  • Hydraulic cylinder model: 130×1200
  • Braking method: air brake hydraulic
  • Steering method: hydraulic steering
  • Exhaust gas treatment: water treatment system
  • Driving style: left-hand drive
  • Cab: single semi-enclosed
  • Vehicle size (L×W×H): 5.6×2.3×2m
  • Transmission: gear shift
