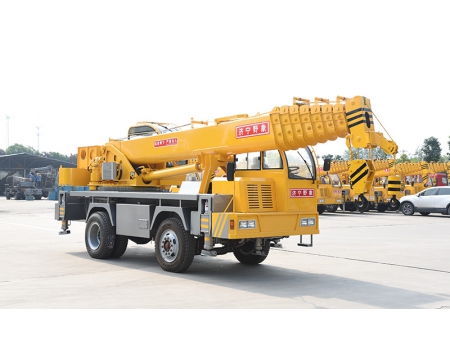

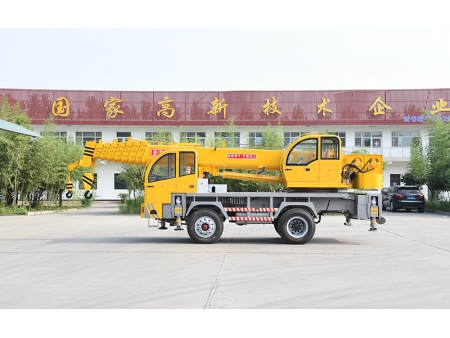

STSQ16D is a truck mounted crane with loading capacity of up to 16 tons. It adopts our self-made chassis that features compact structure and small turning radius, allowing the crane truck to be used in confined spaces and permitted to enter a worksite through narrow areas. This truck crane can provide the maximum lifting height of 40m. It is configured with 15kW motor, extendable supporting frame, double-section stabilizer legs and 360-degree rotating platform, providing guaranteed safety and stability for lifting operations.


Features

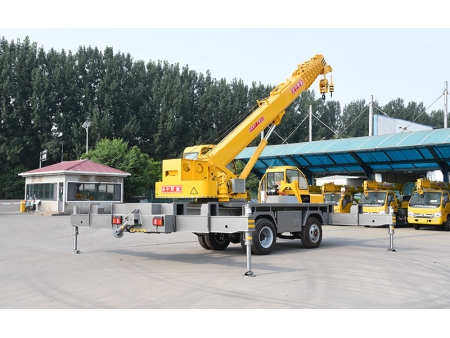

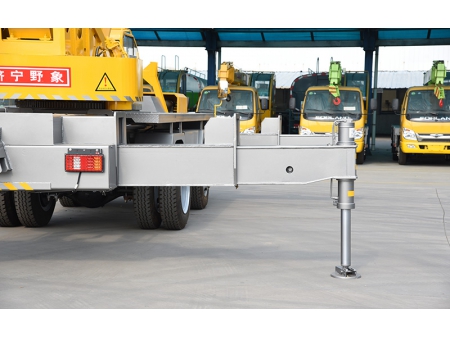

  • Unique extendable frame coupled with hydraulic double-section stabilizer legs, providing improved safety and stability for lifting operations;
  • All cables have dustproof and waterproof design, they are managed separately to ensure independent operation without interference;

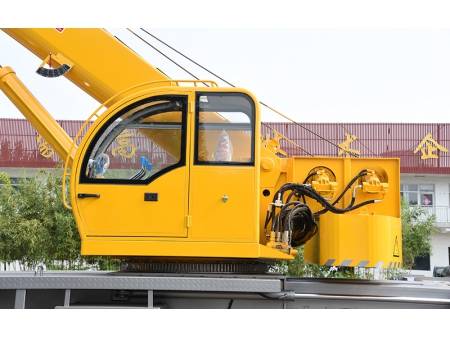

  • 360-degree rotating platform;
Specifications
Max. loading capacity
16t
Max. lifting height
40m
Longitudinal outrigger span
6.75m
Transversal outrigger span
6.7m
Boom
8 sections (6m per section)
Frame extension length
1.3m
Dimensions
9.45m*2.25m*3.1m
Motor power
15kW
Slewing speed
0-3r/min
Engine power
88kW
Tyres
900R20
Wheelbase
2.68m
