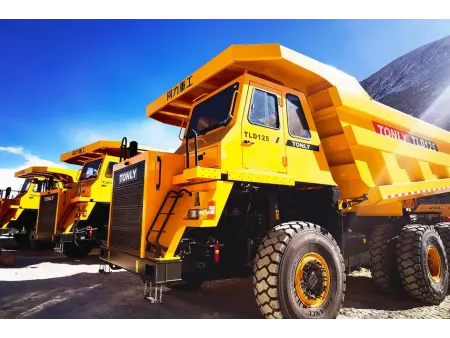

Electric Mining Dump Truck
Request a Quote
91-110 Ton
Rigid dump truck with four-wheel drive
Key Parameters
- Engine power 775HP
- Rated payload 91-110t
- Dump body capacity 45-70m³
Applications
Transportation in large-sized open-pit mines
Specifications
| Model | |||
| Kerb weight (t) | 46 | 65 | 70 |
| Rated payload (t) | 91 | 100 | 110 |
| Engine power (HP) | 775 | ||
| Generator power (kW) | 400 | 400 | 450 |
| Battery (kWh) | 176 | ||
| Drive power (kW) | 620 | 620 | 840 |
| Axle load (t) | 30 50 50 | 40 60 60 | 40 70 70 |
| Cab | Mining truck cab | ||
| Suspension system | Full hydropneumatic suspension | ||
| Steering system | Fully hydraulic steering | ||
| Tire | 18.00R25 | 21.00R35 | 24.00R35 |
| Dump body capacity (m³) | 45/53 | 55/67 | 56/70 |
| Max. speed (km/h) | 40 | ||
| Drive mode | 6×4 | ||
| Wire control system | Optional | ||
Features
- Our 91-110 ton electric mining dump trucks use a “diesel engine generator” range extender system, delivering great efficiency of the engine and generator with strong range extension capability.
- Thanks to the availability of electricity, compared to conventional fuel dump trucks of the same tonnage, our electric mining dump trucks save 15%-20% on overall fuel costs.
- Powered by dual drive motors, these electric mining trucks excel in grade ability and high transportation efficiency.
- Owing to the AMT transmission dual motor-assisted shifting strategy, these trucks can achieve automatic shifting without power interruption.
- The conventional air brake electric feedback braking system makes our dump trucks safe and reliable. When going downhill with an empty or loaded truck, the electric feedback braking automatically engages once the accelerator pedal is released, converting kinetic energy into electrical energy stored in the battery. This reduces the frequency of mechanical brake use, preventing heat fade and ensuring driving safety.
- The fully hydraulic steering emergency steering system is a specially designed system that ensures the reliability, flexible operation, and responsiveness of the steering system. The hydraulic system includes a high-pressure filtration system to ensure clean priority valve and steering gear, greatly improving system reliability. The emergency steering unit provides short-term steering function in emergencies, greatly ensuring driver’s safety.
- The entire truck is designed with a drive-by-wire system, with reserved interfaces for unmanned driving, allowing direct connection to an autonomous driving system.
