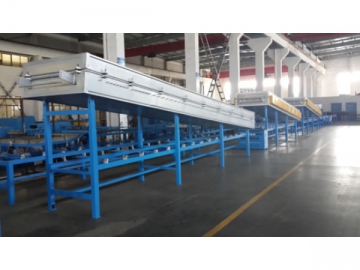

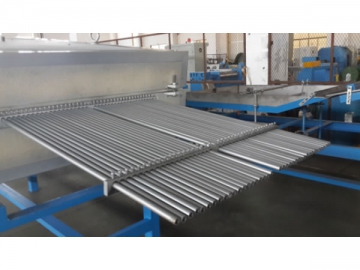

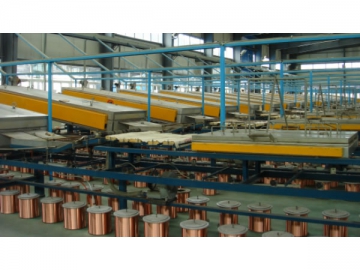

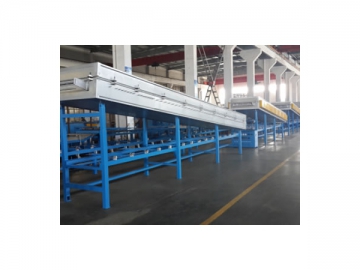

Copper Wire Annealing Machine
Request a Quote
View All: http://shcablemachinery.com
Usage
The copper wire annealing machine is used to slowly cool metal wire as it is processed in order to remove internal stresses and strengthen the finished product. Annealing copper wires creates stronger and longer lasting conducting wires.
Main Features
Temperature is evenly distributed in the annealer for a consistent finished product. The dual tinning tank design allows for the equipment to produce two kinds of tin-coated copper wire simultaneously.
| Machine type | JCJX-40H/4.5 | JCJX-40H/6 | JCJX-40H/7.5 |
| No. of wire | 40 | 40 | 40 |
| Length of Annealing tank (m) | 4.5m | 6m | 7m |
| Wire dia (mm) | 0.08~0.32 | 0.1~0.65 | 0.1~0.7 |
| Pressure regulator (kw) | 0.75 | ||
| Pay-off stand | Brush or overhead | ||
| Tinning type | Hot coating | ||
| Max speed (m/min) | 300m/min | ||
| Pay-off bobbin size (mm) | φ300mm | ||
| Take-up bobbin size | 5"~8" | 5"~10" | 5"~10" |
