Grooved Reducing Tee

Request a Quote

View All: http://grooved-fittings.com/3-5-grooved-reducing-tee.html

Grooved pipe fittings

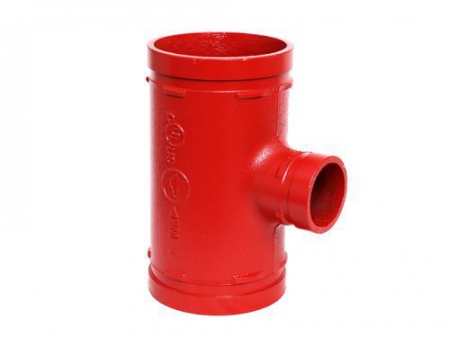

Grooved reducing tee, named for its T-shaped configuration, has a branch outlet with a different size from the main outlet. Each end of the tee has a groove, allowing it to be quickly and easily connected to the pipeline using couplings or fittings.

Recommended Applications

Grooved reducing tee is suitable for piping systems in industries such as petroleum, chemical, oil, natural gas, and urban construction, like heating pipeline systems, drainage and water supply systems, and more.
Connects pipe, provides changes in direction, and adapts to sizes or components.

Key Specifications

Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
Working pressure: 300PSI/2.07MPa
Certificate: FM/UL/CE certified
Coating: epoxy/galvanized

Specifications

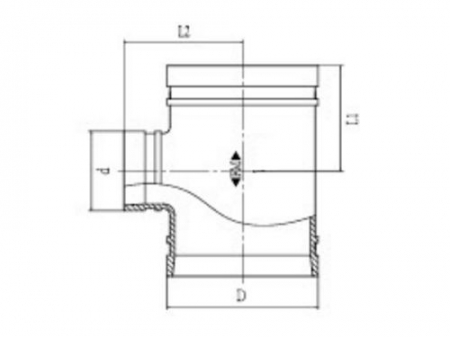

Nominal size mm/in	Pipe OD.	Dimensions
Nominal size mm/in	mm/in	L1mm/in	L2mm/in
50x25 / 2x1	60.3 x 33.7 / 2.375x1.315	70 / 2.76	70 / 2.76
50x32 / 2x1 1/4	60.3 x 42.4 / 2.375x1.660	70 / 2.76	70 / 2.76
50x40 / 2x1 1/2	60.3 x 48.3 / 2.375 x 1.900	70 / 2.76	70 / 2.76
65x32 / 2 1/2x1 1/4	73.0 x 42.4 / 2.875x1.660	76 / 2.99	76 / 2.99
65x40 / 2 1/2x1 1/2	73.0x48.3 / 2.875x1.900	76 / 2.99	76 / 2.99
65x50 / 2 1/2 x 2	73.0 x 60.3 / 2.875x2.375	76 / 2.99	76 / 2.99
65x32 / 2 1/2X1 1/4	76.1 x42.4 / 3.000x1.660	76 / 2.99	76 / 2.99
65x40 / 2 1/2X1 1/2	76.1x48.3 / 3.000x1.900	76 / 2.99	76 / 2.99
65x50 / 2 1/2X2	76.1x60.3 / 3.000x2.375	95 / 3.74	95 / 3.74
80x50 / 3x2	88.9 x 60.3 / 3.500x2.375	108 / 4.25	108 / 4.25
80x65 / 3x2 1/2	88.9 x 76.1 / 3 500x3000	108 / 4.25	108 / 4.25
100x65 / 4x2 1/2	108.0x76.1 / 4.250 x 3.000	127 / 5	127 / 5
100x80 / 4x3	108.0 x 88.9 / 4.250 x 3.500	127 / 5	127 / 5
100x50 / 4x2	114.3x60.3 / 4.500x2.375	127 / 5	127 / 5
100x65 / 4x2 1/2	114.3x76.1 / 4.500 x 3.000	127 / 5	127 / 5
100x80 / 4x3	114.3x88.9 / 4.500x3.500	127 / 5	127 / 5
125x65 / 5x2 1/2	133.0 x 76.1 / 5.250 x 3.000	122 / 4.8	122 / 4.8
125x 100 / 5x4	133.0x108.0 / 5 250 x 4 250	122 / 4.8	122 / 4.8
125x50 / 5x2	139.7x60.3 / 5.500 x 2.375	110 / 4.33	110 / 4.33
125x65 / 5x2 1/2	139.7 x 76.1 / 5.500 x 3.000	110 / 4.33	110 / 4.33
125x80 / 5x3	139.7 x 88.9 / 5.500 x 3.500	110 / 4.33	110 / 4.33
125x100 / 5x4	139.7x114.3 / 5.500 x 4.500	110 / 4.33	110 / 4.33
150x65 / 6x2 1/2	159.0x76.1 / 6.250 x 3.000	122 / 4.8	122 / 4.8
150x80 / 6x3	159.0x88.9 / 6.250 x 3.500	122 / 4.8	122 / 4.8
150x100 / 6x4	159.0x108.0 / 6.250 x 4.250	122 / 4.8	122 / 4.8
150x 100 / 6x4	159.0 x 114.3 / 6.250 x 4.500	122 / 4.8	122 / 4.8
150x50 / 6x2	165.1 x 60.3 / 6.500x2.375	165 / 6.5	165 / 6.5
150x65 / 6x2 1/2	165.1 x 76.1 / 6.500 x 3.000	165 / 6.5	165 / 6.5
150x80 / 6x3	165.1 x88.9 / 6.500x2.376	165 / 6.5	165 / 6.5
150x50 / 6x2	168.3 x 60.3 / 6.625 x 2.376	140 / 5.51	140 / 5.51
150x65 / 6x2 1/2	168.3x73 / 6.625 x 2.874	140.00	140.00
150x65 / 6x2 1/2	168.3 x 76.1 / 6.625x3.000	140 / 5.51	140 / 5.51
150x80 / 6x3	168.3 x 88.9 / 6.625 x 3.500	140 / 5.51	140 / 5.51
150x100 / 6x4	168.3x114.3 / 6.625 x 4.500	140 / 5.51	140 / 5.51
200 x 65 / 8 x 2 1/2	219.1 x 76.1 / 8.625 x 3.000	197 / 7.76	197 / 7.76
200x80 / 8x3	219.1 x88.9 / 8.625 x 3.500	197 / 7.76	197 / 7.76
200x100 / 8x4	219.1 x 114.3 / 8.625 x 4.500	197 / 7.76	197 / 7.76
200x125 / 8x5	2191x139.7 / 8.625 x 5.500	197 / 7.76	197 / 7.76
200x150 / 8x6	219.1x166.1 / 8.62S x 6.500	197 / 7.76	197 / 7.76
200x 150 / 8x6	219.1x168.3 / 8.625 x 6.625	197 / 7.76	197 / 7.76
250x100 / 10x4	273.0x114.3 / 10.750 x 4.500	229 / 9.02	229 / 9.02
250x125 / 10x5	273.0 x 139.7 / 10.750x5.500	229 / 9.02	229 / 9.02
250x 150 / 10x6	273.0 x 165.1 / 10.750x6.500	229 / 9.02	229 / 9.02

What are the common grooved fittings in a piping system?

Common grooved fittings used in piping systems include grooved couplings, grooved pipe fittings, and grooved pipe outlets, etc.

What are the common applications of grooved fittings and couplings?

These grooved fittings and couplings are commonly used in low-pressure piping systems such as fire sprinkler piping systems, petroleum pipeline transport systems, fluid transport systems in chemical plants, and more.
