Threaded Reducing Tee

Request a Quote

View All: http://grooved-fittings.com/3-6-threaded-reducing-tee.html

Grooved pipe fittings

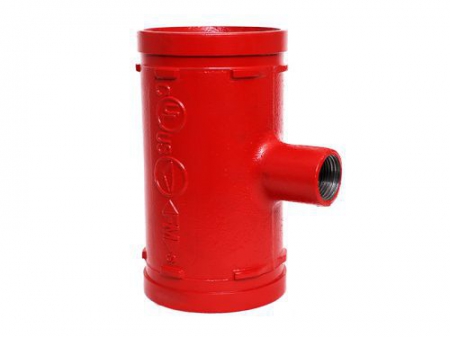

Threaded reducing tee is a type of tee fitting where the size of branch pipe is smaller than the main pipe, and the branch connection is threaded. They are typically made from materials such as stainless steel, brass, or PVC, depending on the application and type of fluid being transported. Selecting the correct size and material for threaded reducing tees is crucial to ensure the integrity and lifespan of pipeline systems.

Recommended Applications

Threaded reducing tee is suitable for pipeline systems in industries such as petroleum, chemical, and natural gas, including wastewater treatment equipment and natural gas transport systems.
Connects pipe, provides changes in direction, and adapts to sizes or components.

Key Specifications

Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
Working pressure: 300PSI/2.07MPa
Certificate: FM/UL/CE certified
Coating: epoxy /galvanized
Color: red/orange/white, etc.

Specifications

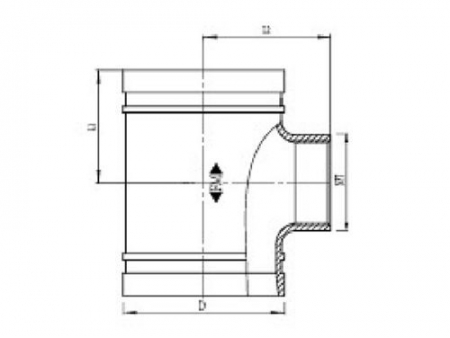

Nominal Size	Pipe OD.	Dimensions
	mm/in	L1 mm/in	L2mm/in
50x25 / 2x1	60.3x33.7 / 2.375x1.315	70 / 2.76	70 / 2.76
50x32 / 2x11/4	60.3 x 42.4 / 2.375x1.660	70 / 2.76	70 / 2.76
50x40 / 2x11/2	60.3x48.3 / 2.375x1.900	70 / 2.76	70 / 2.76
65x25 / 2 1/2x1	73.0 x 33.7 / 2.875x1.315	76 / 2.99	76 / 2.99
65x32 / 2 1/2x1 1/4	73.0x42.4 / 2.875x1.660	76 / 2.99	76 / 2.99
65x40 / 2 1/2x1 1/2	73.0x48.3 / 2.875x1.900	76 / 2.99	76 / 2.99
65x50 / 2 1/2x2	73.0 x 60.3 / 2.875 x 2.375	76 / 2.99	76 / 2.99
65x25 / 2 1/2x1	76.1x33.7 / 3.000x1.315	95 / 3.74	95 / 3.74
65x32 / 2 1/2x1 1/4	76.1x42.4 / 3.000x1.660	95 / 3.74	95 / 3.74
65x40 / 2 1/2x1 1/2	76.1x48.3 / 3.000x1.900	95 / 3.74	95 / 3.74
65x50 / 2 1/2x2	76.1x60.3 / 3.000 x 2.375	95 / 3.74	95 / 3.74
80x25 / 3x1	88.9 x 33.7 / 3.500x1.315	108 / 4.25	108 / 4.25
80x32 / 3x11/4	88.9x42.4 / 3.500x1.660	108 / 4.25	108 / 4.25
80x40 / 3x1 1/2	88.9 x 48.3 / 3.500x1.900	108 / 4.25	108 / 4.25
80x50 / 3x2	88.9 x 60.3 / 3.500 x 2.375	108 / 4.25	108 / 4.25
80x65 / 3x2 1/2	88.9 x 76.1 / 3.500 x 3.000	108 / 4.25	108 / 4.25
100x65 / 4x2 1/2	108.0 x 76.1 / 4.250x3.000	127 / 5	127 / 5
100x80 / 4x3	108.0 x 88.9 / 4.250x3.500	127 / 5	127 / 5
100x25 / 4x1	114.3x33.7 / 4.500 x 1.315	127 / 5	127 / 5
100x32 / 4x1 1/4	114.3x42.4 / 4.500x1.660	127 / 5	127 / 5
100x40 / 4x1 1/2	114.3x48.3 / 4.500x1.900	127 / 5	127 / 5
100x50 / 4x2	114.3x60.3 / 4.500x2.375	127 / 5	127 / 5
100x65 / 4x2 1/2	114.3x76.1 / 4.500 x 3.000	127 / 5	127 / 5
100x80 / 4x3	114.3x88.9 / 4.500 x 3.500	127 / 5	127 / 5
125x25 / 5x1	139.7 x 33.7 / 5.500x1.315	110 / 4.33	110 / 4.33
125x32 / 5x1 1/4	139.7x42.4 / 5.500x1.660	110 / 4.33	110 / 4.33
125x40 / 5x 1 1/2	139.7x48.3 / 5.500 x1.900	110 / 4.33	110 / 4.33
125x50 / 5x2	139.7x60.3 / 5.500 x 2.375	110 / 4.33	110 / 4.33
125x65 / 5 x 2 1/2	139.7x76.1 / 5.500 x 3.000	110 / 4.33	110 / 4.33
125x80 / 5x3	139.7x88.9 / 5.500 x 3.500	110 / 4.33	110 / 4.33
150x25 / 6x1	165.1x33.7 / 6.500x1.315	165 / 6.5	165 / 6.5
150x32 / 6x1 1/4	165.1x42.4 / 6.500x1.660	165 / 6.5	165 / 6.5
150x40 / 6x1 1/2	165.1x48.3 / 6.500x1.900	165 / 6.5	165 / 6.5
150x50 / 6x2	165.1x60.3 / 6.500x2.375	165 / 6.5	165 / 6.5
150x65 / 6x2 1/2	165.1x76.1 / 6.500x3.000	165 / 6.5	165 / 6.5
150x80 / 6x3	165.1x889 / 6.500x3.500	165 / 6.5	165 / 6.5
150x 100 / 6x4	165.1x114.3 / 6.500x4.500	165 / 6.5	165 / 6.5
150x25 / 6x1	168.3 x 33.7 / 6.625x1.315	140 / 5.51	140 / 5.51
150x32 / 6x1 1/4	168.3x42.4 / 6.625x1.660	140 / 5.51	140 / 5.51
150x40 / 6x11/2	168.3 x 48.3 / 6.625 x1.900	140 / 5.51	140 / 5.51
150x50 / 6x2	168.3 x 60.3 / 6.625x2.375	140 / 5.51	140 / 5.51
