EMB06 Carbide Ball End Mill, Long Length

EMB06 Carbide Ball End Mill, Long Length
EMB06 Carbide Ball End Mill, Long Length
EMB06 Carbide Ball End Mill, Long Length
Request a Quote
View All: http://metalworking-tool.com/3-6-emb06-hrc65-carbide-ball-end-mills-long-length.html
Product Specifications
Coating AITiN HRC HRC50/65
Helix Angle 45° Shank Cylindrical H6
Material IMC™ UMG Carbide Rod Tolerance on Cutting Diameter 0-0.030
HRC65 Carbide Ball End Mills, Long Length (UNT-EMB06)
Unit: mm
UNT EDP # Click to Order Radius
R 		Mill Dia.
D1 		Shank Dia.
D2 		Flute Length
L1 		O.A.L.
L2 		Flutes
EMB06010075 R0.5 1.0 4 2 75 2
EMB06015075 R0.75 1.5 4 3 75 2
EMB06020075 R1.0 2.0 4 4 75 2
EMB06030075 R1.5 3.0 4 6 75 2
EMB06040075 R2.0 4.0 4 8 100 2
EMB06040100 R2.0 4.0 4 8 75 2
EMB060100756 R0.5 1.0 6 2 75 2
EMB060150756 R0.75 1.5 6 3 75 2
EMB060200756 R1.0 2.0 6 4 75 2
EMB060300756 R1.5 3.0 6 6 75 2
EMB060400756 R2.0 4.0 6 8 75 2
EMB060401006 R2.0 4.0 6 8 100 2
EMB06050100 R2.5 5.0 6 10 100 2
EMB06060075 R3.0 6.0 6 12 75 2
EMB06060100 R3.0 6.0 6 12 100 2
EMB06080100 R4.0 8.0 8 16 100 2
EMB06100100 R5.0 10.0 10 20 100 2
EMB06120100 R6.0 12.0 12 24 100 2
EMB06060150 R3.0 6.0 6 12 150 2
EMB06080150 R4.0 8.0 8 16 150 2
EMB06100150 R4.0 10.0 10 20 150 2
EMB06120150 R6.0 12.0 12 24 150 2
EMB06160150 R8.0 16.0 16 32 150 2
EMB06200150 R10.0 20.0 20 40 100 2

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.

Related products

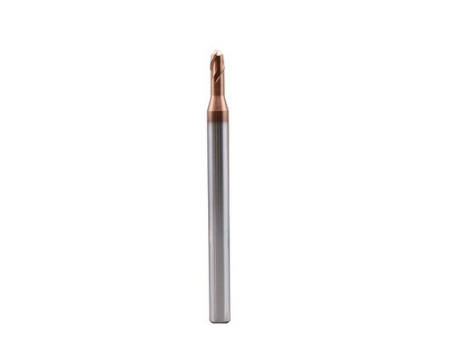

EMC06 X5070 Carbide Ball End Mill, Long Length
EMC06 X5070 Carbide Ball End Mill, Long Length
EMT06 2 Flute Carbide Ball Nose End Mill, Long Length
EMT06 2 Flute Carbide Ball Nose End Mill, Long Length
EMB02 2 Flute Carbide Square End Mill, Long Length
EMB02 2 Flute Carbide Square End Mill, Long Length
EMT12 3 Flute Carbide End Mill for Aluminum, Long Length
EMT12 3 Flute Carbide End Mill for Aluminum, Long Length
Send Message
Other Products
UC-BH2 General Purpose Solid Carbide End Mill - Ball Nose - 2 Flutes - Long Shank
UC-BH2 General Purpose Solid Carbide End Mill - Ball Nose - 2 Flutes - Long Shank
Ball Grinding Mill
Ball Grinding Mill

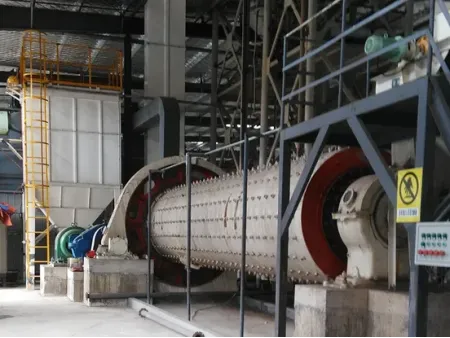

Overflow Ball Mill
