SHO-PX Medical Imaging

Digital radiography system with 10-inch touch screen for stationary veterinary use

The SHO-V32B veterinary X-ray machine is designed to provide accurate and reliable imaging for cats, dogs, rabbits, and other pets. With its 32-kilowatt power, it delivers high-quality images while keeping radiation exposure low, making it an ideal choice for veterinary hospitals and clinics. Its movable table allows you to easily position animals for precise imaging, ensuring you get the best diagnostic results for every case.

Specifications
Model SHO-V32-B
Screen display 10.4-inch touch screen
Power 40 kVA
Output power 32 kW
Frequency 25 kHz
Current 10-400 mA
Voltage 40-125 kV
Anode type Rotating anode
Focal spot size 1.0 mm / 2.0 mm
Anode revolving speed 2800 rpm
Inherent filtration 10 mmAl
Type Amorphous Silicon
Active area 17×17 inch
Active pixel 2912×2912
Pixel pitch 139 um
A/D conversion 16 bits
Floating table bearing 150 kg

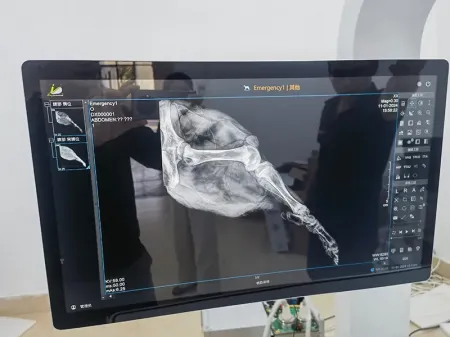

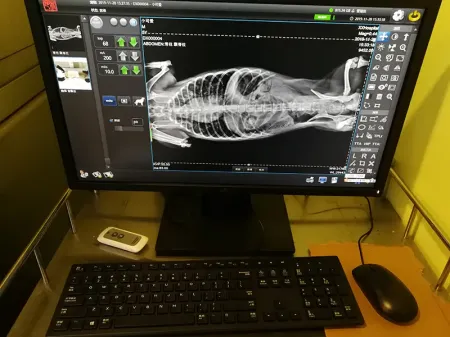

X-Ray Imaging

Looking for a stationary veterinary X-ray machine that enhances your practice's efficiency and accuracy? Contact us today to learn more about this radiographic equipment!
